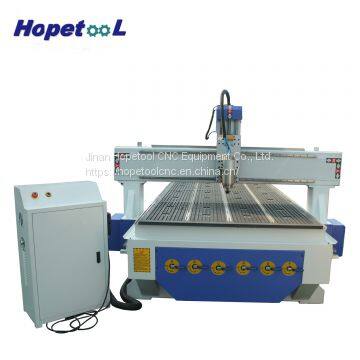

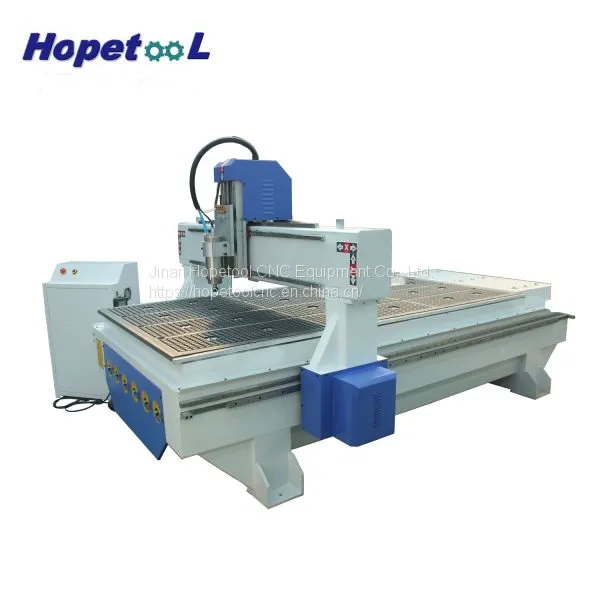

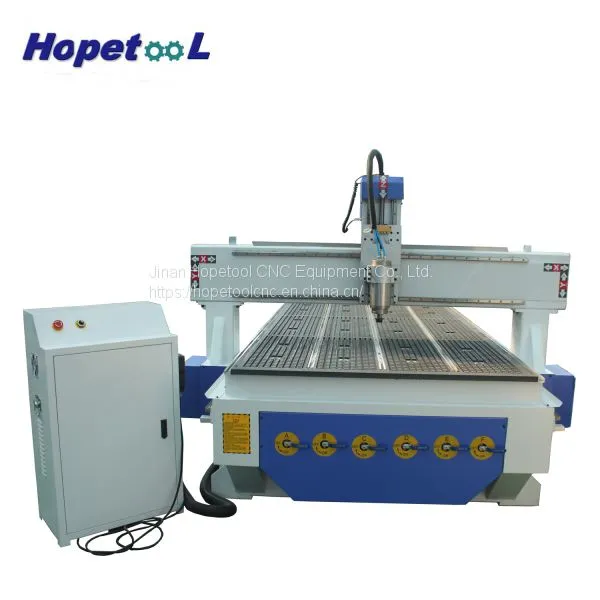

3d Cnc Wood Carving Machine/CNC Router Wood/CNC Wood Router 1300*2500mm
3d cnc wood carving machine/CNC router wood/CNC wood router 1300*2500mm



characteristic:
1.Water cooling spindle,high precision,long life time,steady working,easy to start up.
2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.
4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
5.auto oilling system ,easy to operate by pressing one key.
6.seperated control system makes operation easily.
7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.
8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.
performance parameter:
number | Description | parameter |
1 | XYZ working area | 1300*2500*200mm |
2 | Table size | 1310*3000mm |
3 | XYZ travel positioning accuracy | ±0.01mm |
4 | XYZ repositioning positioning accury | ±0.01mm |
5 | Table surface | Bakelite sheet |
6 | Gantry | steel |
7 | drive system X-Y axis | Rack actuation |
8 | drive system Z axis | Ball screw |
9 | Spindle power | 3/4.5KW |
10 | Max velocity | 50m/min |
11 | Max working speed | 25m/min |
12 | Spindle speed | 0-24000rmp |
13 | work mode | Step(optional servo) |
14 | Working voltage | AC220/380V |
15 | Command language | G code |
16 | Interface | USB or parallel port |
17 | Operating system | DSP |
18 | Flash memory | 128 |
19 | X-Y resolution | <0.025mm |
20 | Software environment | Wentai type3 artcam |
21 | Running environment | Temperature:0-45℃ |
22 | Packing size | 3300*1900*1900mm |
23 | Net weight | 1300kg |
24 | Gross weight | 1500kg |
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
3.Our engineer can go to customer's factory training.
Warranty and After service
1. Our warranty is 2 years counting from the date when the Machine arrives at the port of
destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help.
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
