Home > Products > Flatbed Cutting machine > Flatbed cutting plotter/Flatbed cutter plotter/pattern cutting plotter for sale

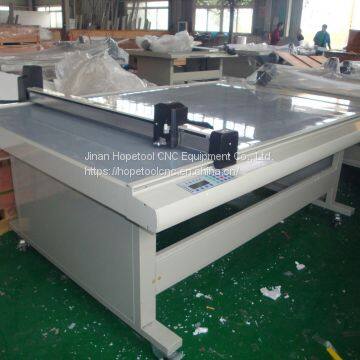

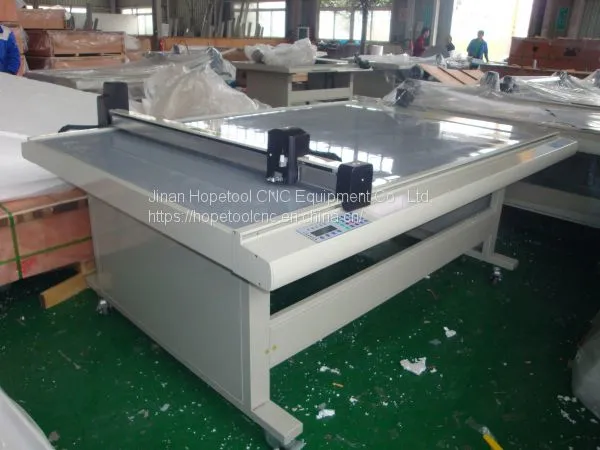

Flatbed cutting plotter/Flatbed cutter plotter/pattern cutting plotter for sale
- 100 Set / Sets per Month
- Shanghai
- T/T L/C
- 10 days
You May Like
-
2mm paper box cutting machine cardboard digital box cutter
-
Low cost 2mm maximum paper creasing and cutting machine
-
Gasket,Fabric,leather,Carton cnc oscillating knife cutting machine
-
Professional cnc plasma cutting machine 1325
-
High Quality 1530 Iron Sheet Metal 1000w Fiber Laser Cutting Machine With Raycus Fiber Laser
-
3015-fiber-laser-cutting-machine Metal Fiber Laser Cutting Machine Price
Product Details
Brand Name | Hopetool | Place of Origin | China | |
Model Number | GD | Type | Paper Cutting Machine | |
After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 2 years | |
Condition | New | Voltage | 220V | |
Computerized | Yes |
Product Description
Detail
GD series costume pattern cutting plotter is the star product in the pattern cutting machine, and ocuupy a large market share. This machine is designed for professional costoume pattern making. And it can meet the customer’s demand for pattern cutting and drawing of various materials by its cutting and drawing function. It has a fast writing speed and good cutting quality, and become a good assistant for the fashion designer. It can cut many materials used in the pattern of garment, such as card paper, kraft paper, red hard paper etc. GD series high speed cutting machine could meet the requirementt for common cutting accuracy. It employs import synchronous belt for power driving, and work under high speed, convenient use, compatible with any CAD software. It is greatly welcomed by customers and widely applied for garment pattern cutting or plotting.
The main features:
·Imported synchronous belt, long lifetime
·Steady performance, low useage cost
Specification
Model | GD0906 | GD1209 | GD1509 | GD1512 | ||
Effective cutting area | 900*600mm | 1200*900mm | 1500*900mm | 1500*1200mm | ||
Configuration | Special knife, pen | |||||
Way of fixing paper way | Vacuum absorbing | |||||
Driving material | Import synchronous belt | |||||
Cut materials | Red hard paper,plastic board,white board,kraft paper | |||||
Cutting way | Drawing by pen,half cutting,whole cutting | |||||
Cutting thickness | 0.5-2mm | |||||
Cutting precision | ≤0.1mm | |||||
Max speed | 1000mm/s | |||||
Working time and character | Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data. | |||||
Transmitting port | International standards: parallel port/RSC232 serial port | |||||
Capacity of buffer area | Buffer area of large capacity, it can finish high-speed transmission for data at a time | |||||
Instruction set | International standards: HP-GL or DXF form can be selected selected, It is compatible with all kinds of CAD software | |||||
Numerical control board | LTD, all-English operating menu | |||||
Driver | Step motor | |||||
Pen type | General signing pen, oil pen, ball pen | |||||
Main structure | Cutting platform,head,driving system,control cabinet,control micro computer,frame,vacuum pump | |||||
Voltage | AC 220V 50HZ | |||||
Fuse standard | 5A | |||||
Occupy dimension (L*W*H) | 135*106*108cm | 163*136*108cm | 193*136*108cm | 193*166*108cm | ||
Note | Other size can be customized. | |||||
WoWorking sample
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
3.Our engineer can go to customer's factory training.
Warranty and After service
1. Our warranty is 2 years counting from the date when the Machine arrives at the port of
destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help.
Questions and answer:
Q1.how to get the most suitable machine and best price
Please tell the material and thickness you want to cut?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
