Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Co2 Laser Engraving and Cutting Machine Leather Wood Acrylic Laser Cutting Machine

Co2 Laser Engraving and Cutting Machine Leather Wood Acrylic Laser Cutting Machine

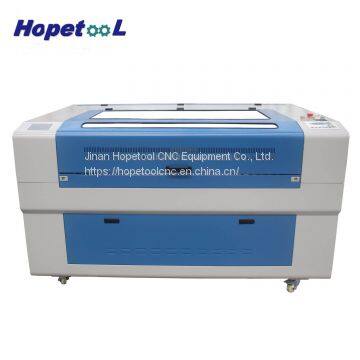

Co2 Laser Engraving and Cutting Machine Leather Wood Acrylic Laser Cutting Machine photo-1
Co2 Laser Engraving and Cutting Machine Leather Wood Acrylic Laser Cutting Machine photo-2
US$ 3000 - 4000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hopetool
Place of Origin:
China
Model Number:
HT-1390
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days
Brand Name Hopetool
Place of Origin China
Model Number HT-1390
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Graphic Format Supported BMP, DXF, PLT
Control Software Ruida
Cooling Mode Water Cooling
CNC or Not Yes
Cutting Area 1300*900mm
Applicable Material Acrylic, Leather, MDF, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type CO2
co2 laser engraving and cutting machine leather wood laser cutting machine acrylic laser cutting machine



Product Description



 HT-13901

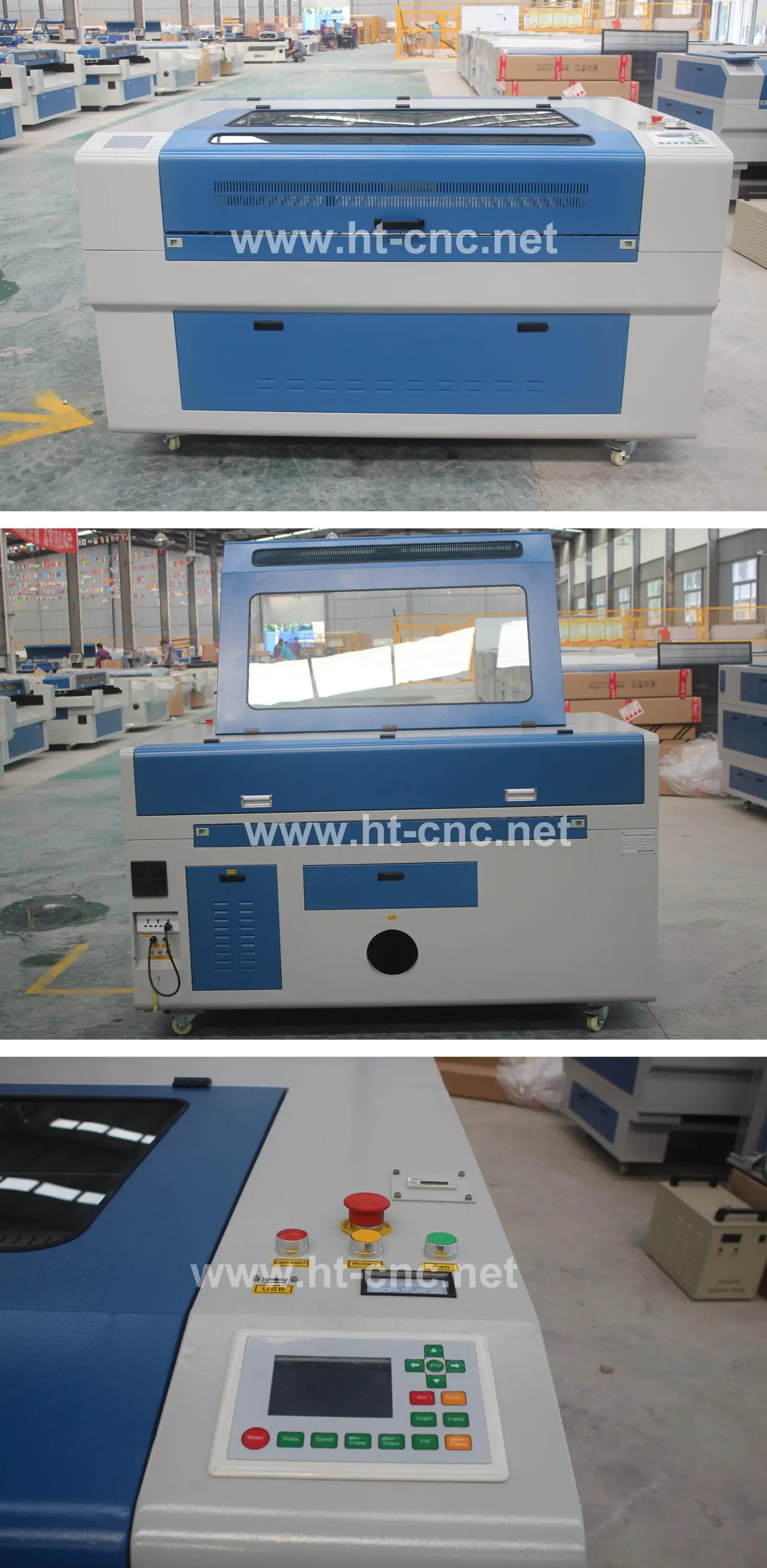

HT-13902



 12

  Laser cutting machines





 Feature                                                   Laser cutting machines



This type machine is a kind of laser engraving machine system equipped with Co2 laser tube,it is used to engrave on acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials .



 Parameter                                               Laser cutting machines



Model

Laser cutting machine(HT-1390)

Working area

130cm*90cm / 47in*35in

Equipment Dimension

175cm*131cm*107cm

69in*52in*42in (L*W*H)

Laser power

80/100/130/150W

Laser type

CO2 sealed laser tube,water-cooled

Engraving speed

0-6000cm/min

Cutting speed

0-5000cm/min

Power supply

220V/50HZ , 110V/60HZ

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Driving system

stepper motor

Net Weight

400kg

Optional parts

Up-down worktable,Rotary axis

Applicable material

Acrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood etc.



Application                                            Laser cutting machines





Cutting, engraving and punching soft materials, such as all sorts of clothing, leather, carpet,



suede fabric, denim jeans, stuffed toys, textiles, industrial fabrics etc.





Material

   Cut

 Engrave

Acrylic | Plexiglass | PMMA | Perspex

  √

Organic board | Double color sheet

  √

Wood | Plywood | Veneer | MDF | Balsa

  √

Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather

√

  √

Fabric | Cloth | Textile

  √

Carpet | Mat | Rug | Wool Felt

  √

Paper | Cardboard | Chipboard | Press Board

  √

Ceramic | Tile | Marble | Glass

  √

Plastic

  √

Fiber Glass | Filter Cloth

  √



  Laser cutting machines







Packaging & Shipping






Company Information




Our Services



Training and Use

  1. We will supply with the machine operation manual in English version for installing and operation.



  2.Customer can come to our factory  training .



  3.Our engineer also can go to customers' factory training.





  Warranty and After service





1. Our warranty is 2 years counting from the date when the Machine arrives at the port of destination.



 2. We will supply  after service 24 hours,customer can contact us any time.



 3.When some problems can’t be solved by customers, our engineer  can go to door to help.







Other model laser cutting machine
