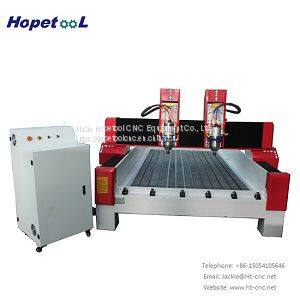

Fast Speed Two Spindles Stone Engraving Machine Price 1325

Fast Speed Two Spindles Stone Engraving Machine Price 1325 photo-1
Fast Speed Two Spindles Stone Engraving Machine Price 1325 photo-2
US$ 4000 - 4500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hopetool
Place of Origin:
China
Model Number:
HT-S1325
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
15 days
Brand Name Hopetool
Place of Origin China
Model Number HT-S1325
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Fast speed two spindles stone engraving machine price 1325

Product Description

   characteristic:

1.leading Rack Drive, fast, high efficiency, air-speed can reach 35 m / min or more, against the wave plate is carved in manufacturing can be up to 20 m / min above the speed equivalent to the purchase of 4 -- 5 ordinary type machines. 2. intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause damage. Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision caused the phenomenon. 3. fully in line with international standards: can use any CAD / ArtCAM software and other relief. 4. advanced DSP control handle, control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing, carving or cutting. Offline operation can be realized. 5.the overall program structure welding tempering aging treatment, is not strong deformation. Gantry mobile, fixed working table can be arbitrary processing work table material. 6. suitable for a variety of materials processing large quantities of production.

7.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.

  performance parameter:

number

Description

parameter

1

XYZ working area

1300*2500*300mm

2

Table size

1310*3000mm

3

XYZ travel positioning accuracy

±0.01mm

4

XYZ repositioning positioning accury

±0.01mm

5

Table surface

Aluminum T slot +PVC

6

grantry

steel

7

drive system X-Y axis

Rack

8

drive system Z axis

Ball screw

9

Spindle power

3/5.5KW

10

Max velocity

50m/min

11

Max working speed

25m/min

12

Spindle speed

0-24000rmp

13

work mode

step(optional servo)

14

Working voltage

AC220/380V

15

Command language

G code

16

Interface

USB

17

Operating system

DSP/Mach3/Ncstudio

18

Flash memory

128

19

X-Y resolution

0.025mm

20

Software environment

Wentai type3 artcam

21

Running environment

Temperature:0-45°C

22

Paking size

3300*1900*1900mm

23

Net weight

1300 kg

24

Gross weight

1500 kg

Main Parts

Company Information

FAQ

Q1.How to get the most suitable machine and best price Please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?The payment is 30% or 50% T/T or trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
Q5.How about your after-sales service?we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
