Home > Products > Oven,Incubator > DHG-9030A 9070A Laboratory Factory Lab Electrical Drying Oven Dry Oven OEM

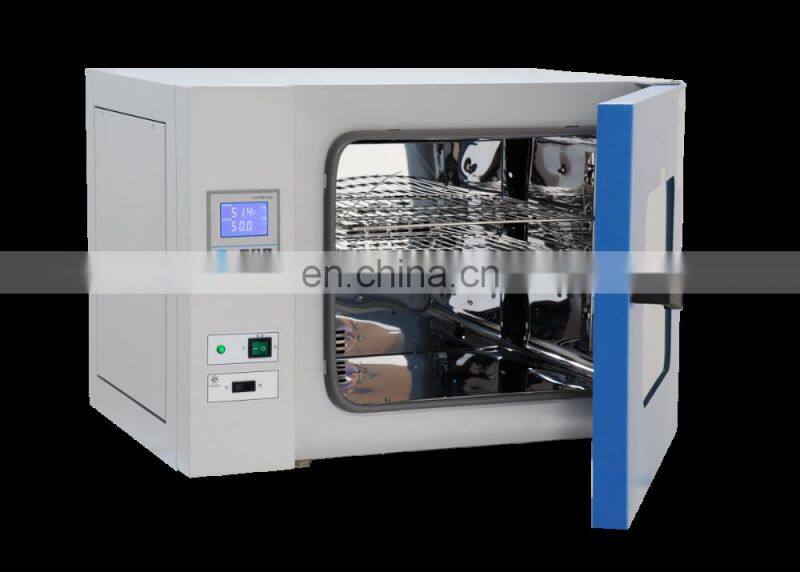

DHG-9030A 9070A Laboratory Factory Lab Electrical Drying Oven Dry Oven OEM
- T/T Credit Card
You May Like
Product Description
Summary:
Provided for desiccation, torrefaction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes
Features:
l Polished stainless-steel chamber
l Latest PID controller
l Uniform distribution of air temperature
l Forced-air convection
l Double Layer glass door, larger viewing window.
l Independent temperature-limiting alarm system ensures experiments run safely. (option)
l RS485 connector is option which can connect computer to record the parameters and the variations of temperature. (Option)
Specifications(RT+10~200℃/RT+10℃~250℃)
Model | DHG-9030(A) (101-0) | DHG-9050A | DHG-9070(A) (101-1) | DHG-9140(A) (101-2) | DHG-9240(A) (101-3) | DHG-9420(A) (101-4) | DHG-9620(A) | DHG-9920(A) | ||
Electrical Requirement | 110V/220V 60HZ/50HZ(Customized) | 380V 50Hz(Customized) | ||||||||
Temperature Range | RT+10~200℃/RT+10℃~250℃ | |||||||||
Display Resolution | 0.1℃ | |||||||||
Temperature Stability | ±1℃ | |||||||||
Ambient Temperature | +5~40℃ | |||||||||
Power Consumption | 850W | 850W | 1100W | 1550W | 2050W | 3500W | 4000W | 6000W | ||
Chamber Volume | 30L | 50L | 80L | 136L | 220L | 420L | 620L | 1000L | ||
Interior Dimension (W×D×H, mm) | 340×320 ×320 | 420x395 x350 | 450×400 ×450 | 550×450 ×550 | 600×500 ×750 | 640×585 ×1355 | 840×600 ×1355 | 1000×600 ×1600 | ||
Exterior Dimension (W×D×H, mm) | 620×530 ×490 | 700x610 x520 | 740×618 ×630 | 840×670 ×730 | 880×720 ×930 | 780×750 ×1880 | 980×800×1880 | 1140×800 ×2150 | ||
Shelves | 2(pcs) | 2(pcs) | 2(pcs) | 3(pcs) | 4(pcs) | 5(pcs) | ||||
Timing Range | 1~9999min | |||||||||
Specifications(RT+10~300℃)
Model | DHG-9035A | DHG-9055A | DHG-9075A | DHG-9145A | DHG-9245A | DHG-9425A | DHG-9625A | ||||
Electrical Requirements | 110V/220V 60HZ/50HZ(Customized) | 380V 50Hz(Customized) | |||||||||
Temperature Range | RT+10~300℃ | ||||||||||
Temperature Accuracy | 0.1℃ | ||||||||||
Display Resolution | ±1℃ | ||||||||||
Ambient Temperature | +5~40℃ | ||||||||||
Power Consumption | 850W | 1100W | 1550W | 2050W | 2450W | 3500W | 4000W | ||||
Chamber Volume | 30L | 50L | 80L | 136L | 220L | 420L | 620L | ||||
Internal Dimension (W×D×H, mm) | 340×320 ×320 | 420×395 ×350 | 450×400 ×450 | 550×450 ×550 | 600×500 ×750 | 640×585 ×1355 | 840×600 ×1355 | ||||
External Dimension (W×D×H, mm) | 620×530 ×490 | 720×590 ×520 | 740×618 ×630 | 840×670 ×730 | 880×720 ×930 | 780×750 ×1880 | 980×800 ×1880 | ||||
Shelves | 2(pcs) | 2(pcs) | 2(pcs) | 2(pcs) | 2(pcs) | 3(pcs) | 4(pcs) | ||||
Timing Range | 1~9999min | ||||||||||
Options:
l Intelligent programmable temperature controller(LCD)
l Printer
l Independent temperature-limiting Alarm
l RS485 connector
