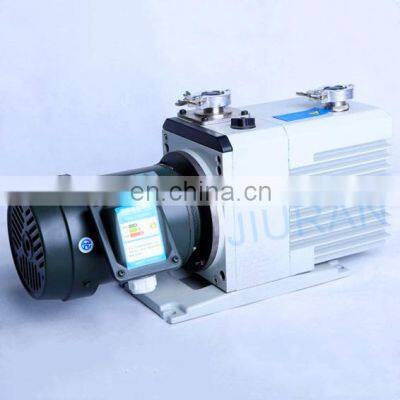

Help CenterJVP MVP High Quality Laboratory Double Stage Two Stages Direct-coupled Vacuum Rotary Vane Vacuum Pump
Related Products
-
Vacuum FlangNegotiableMOQ: 1 -
Small Cheap Oil-free Oilless Dry Wind Cool Screw Vacuum PumpNegotiableMOQ: 1
-
20m3/h X-020N XD-020N New Latest Small Electric Single Stage Rotary Vacuum Pump Good QualityNegotiableMOQ: 1
-
Laboratory Sand Core Filter Device Solvent Filter Device for Vacuum Suction Filtration Used in LabNegotiableMOQ: 1
-
Samos Side Channel Blowers High Pressure Blower Swirl Fan Pump Fish Pond Aerator Roots BlowerNegotiableMOQ: 1
This series pump is used to seal the container for pumping gas basic equipment. It can be used alone, can also be used for the booster pump, diffusion pump, molecular pump, maintain the pump, titanium pump vacuum pump, can be used for vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum, vacuum forming, coating, food packaging, printing, sputtering, vacuum casting, apparatus, instrument, refrigerator, air conditioner pipeline and laboratory vacuum operation and supporting the use of.
Features
a, due to a complete design with low noise and precision processing, so as to achieve a low noise;
b, preparation for the special design of town gas valve, prevent pump oil mixed with water, to extend the pump oil service time;
c, the international similar product design, small volume, light weight, low noise, convenient start;
d, an automatic double anti-returning oil safety device, never returned to oil;
e, small diameter JVP-2, JVP-4, JVP-9 vacuum pump with vacuum drying box, freeze-drying machine, printing machinery;
f, with small caliber conversion connector, KF interface, the interface of the flange.
|
Parameters/Model |
MVP-2 |
MVP-4 |
MVP-6 |
MVP-9 |
MVP-14 |
MVP-18 |
MVP-25 |
|
|
Pumping speed m3/h(L/S) |
50(HZ) |
7.2(2) |
14.4(4) |
21.6(6) |
32.4(9) |
50.4(14) |
64.8(18) | 90(25) |
|
Ultimate pressure (Pa) |
Partial pressure |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 | ≤6×10-2 |
|
Total pressure |
≤1.33 |
≤1.33 |
≤1.33 |
≤1.33 |
≤1.33 |
≤1.33 | ≤1.33 | |
|
Rotary speed (r/min) |
50(HZ) |
1400 |
1400 |
1400 |
1400 |
1400 |
1440 | 1400 |
|
60(HZ) |
1720 |
1720 |
1720 |
1720 |
1720 |
1720 | 1720 | |
|
Moter power(kw) |
0.37 |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 | 2.2 | |
|
Voltage(V) |
220/380 |
220/380 |
220/380 |
220/380 |
380 |
380 | 380 | |
|
Inlet diam(O.D.)(mm) |
KF-25 |
KF-25 |
KF-25 | KF-25/40 | KF-40 | KF-40 | KF-40 | |
|
Noise level(dBA) |
50 |
50 |
53 | 53 | 58 | 60 | 62 | |
|
Oil capacity(L) |
1 |
1.2 |
1.8 | 2.0 | 3.9 | 5.0 | 5.5 | |
|
weight(Kg) |
23 |
26 |
38 | 40 | 66 | 85 | 90 | |
