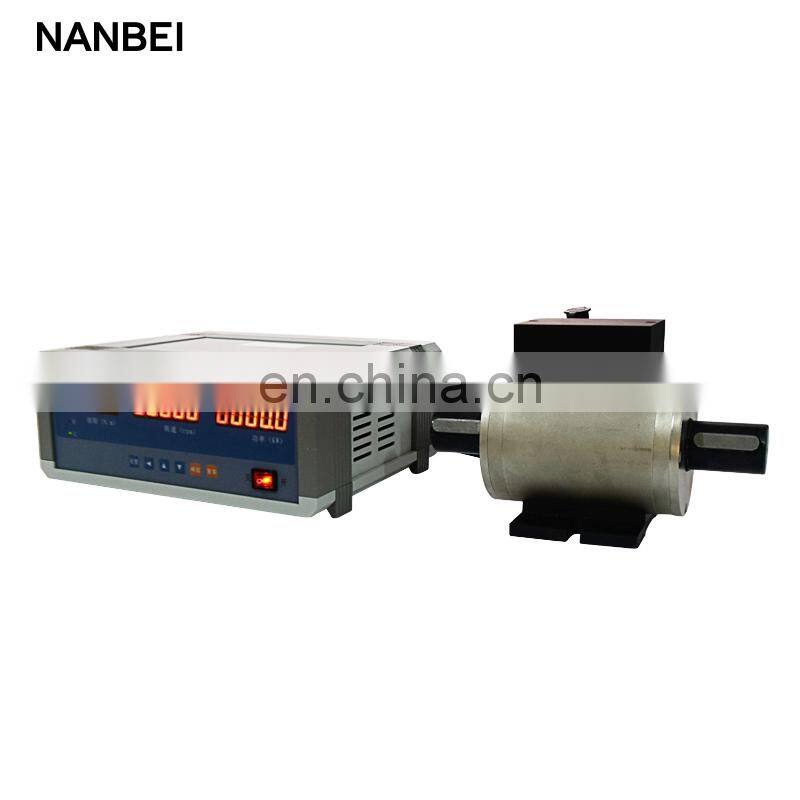

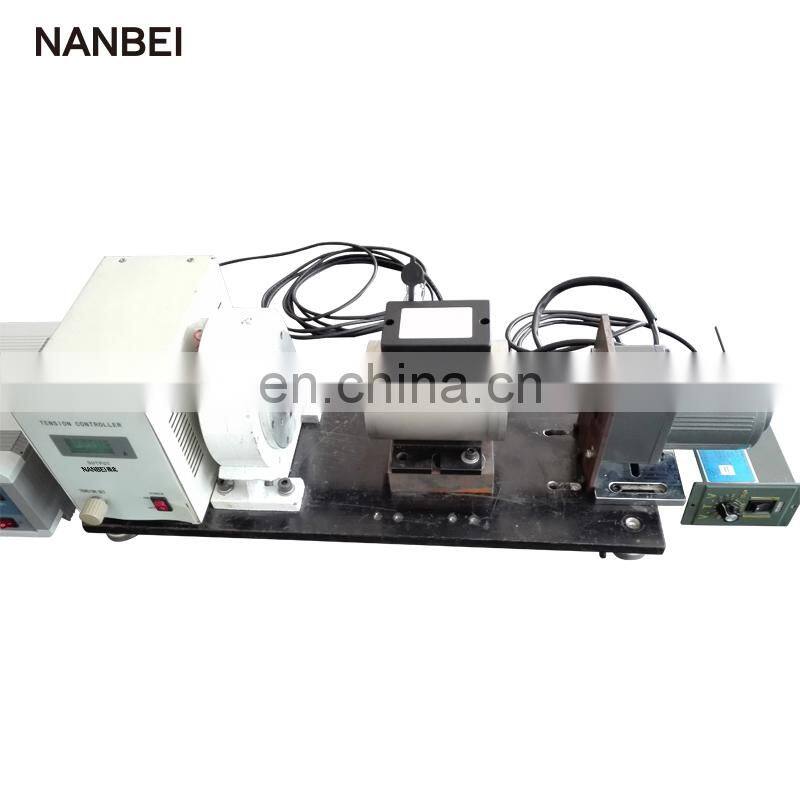

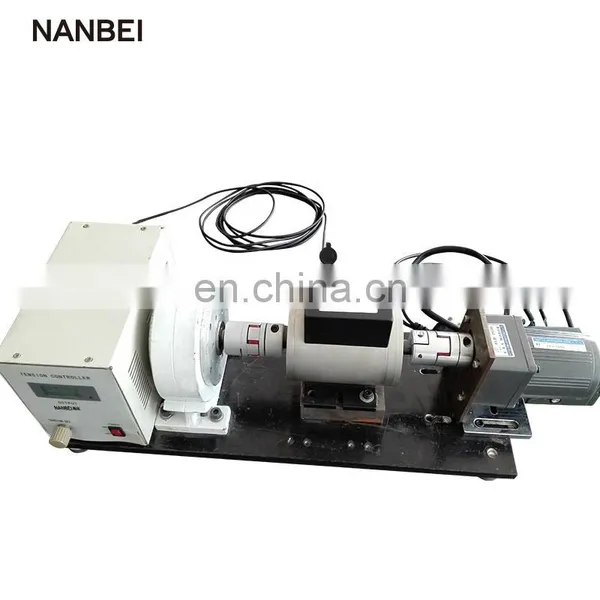

1000nm Dynamic Torque Tester for Motors

1000nm Dynamic Torque Tester for Motors thumbnail-1
1000nm Dynamic Torque Tester for Motors thumbnail-2
1000nm Dynamic Torque Tester for Motors thumbnail-3
1000nm Dynamic Torque Tester for Motors thumbnail-4
1000nm Dynamic Torque Tester for Motors thumbnail-5
1000nm Dynamic Torque Tester for Motors photo-1

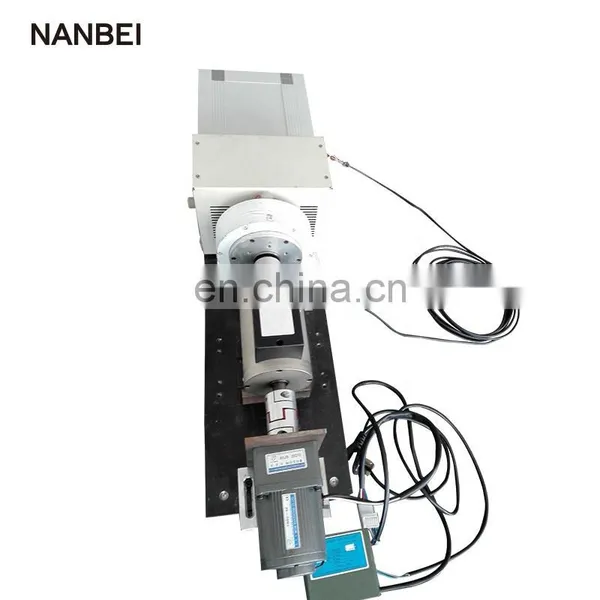

1000nm Dynamic Torque Tester for Motors photo-2

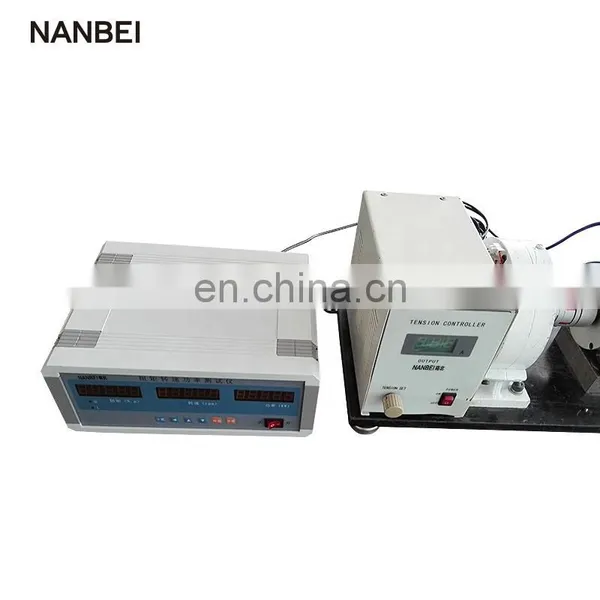

1000nm Dynamic Torque Tester for Motors photo-3

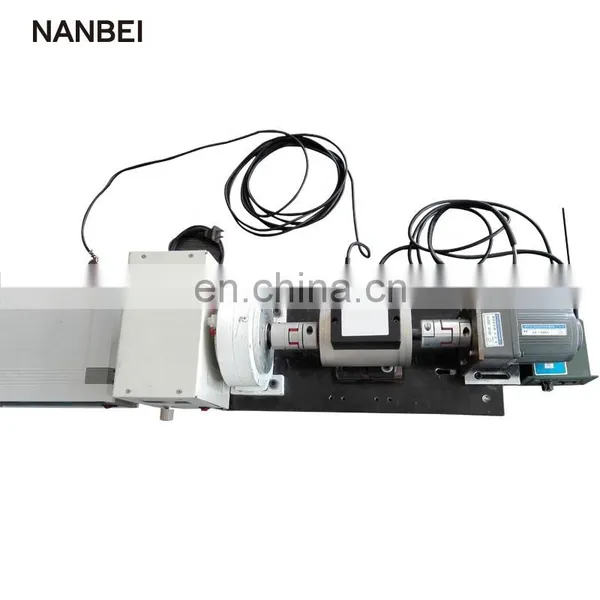

1000nm Dynamic Torque Tester for Motors photo-4

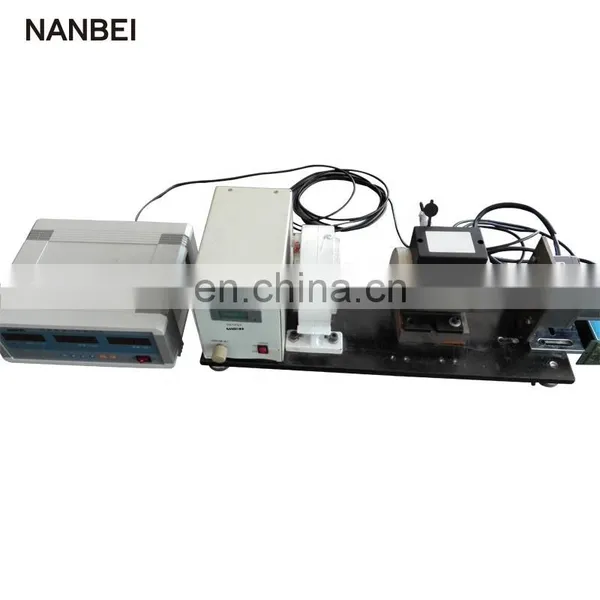

1000nm Dynamic Torque Tester for Motors photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

NDN dynamic torque meter

Introduction NDN series of dynamic torque meter is to test and detect a variety of dynamic torque design and manufacture of an intelligent design equipment. Used to detect a variety of motors, reducer output torque, speed, power of high-precision test equipment. Widely used in a variety of motors, machinery manufacturing, scientific research institutions and other industries. Product features
1, the signal output waveform square wave amplitude optional 5V / 12V. 2, boot 5 minutes to enter the working state, without preheating process. 3, high precision detection, good stability, strong anti-interference. 4, without repeatedly zero to continuously measure the positive and negative torque. 5, small size, light weight, easy to install. 6, the sensor can be used independently from the secondary instrument, as long as the socket pin to provide ± 15V (200mA) power supply. 7, you can output impedance and torque is proportional to the square wave or pulse wave frequency signal
Specification
Model
NDN-5
NDN-10
NDN-20
NDN-30
NDN-50
Max load value
5N•m
10N•m
20N•m
30N•m
50N•m
Load division value
0.001N•m
0.01N•m
Maximum speed
6000rpm
Accuracy
±1%
Power supply
±15VDC
Torque accuracy
＜±0.5%F•S、＜±0.35%F•S、＜±0.1%F•S3
Frequency Response
100μs
Nonlinear
＜±0.2%F•S
Importance
＜±0.1%F•S
Backlash
＜±0.1%F•S
Zero when the drift
＜±0.2%F•S
Zero drift
＜±0.2%F•S/10℃
Output impedance
350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option)
Insulation resistance
5000MΩ
Static Overload
120%、150%、200%(option)
Operating temperature
-10～50℃
Storage temperature
-20～70℃
Voltage
±15V±5%
Model
NDN-100
NDN-200
NDN-300
NDN-500
Max load value
100N•m
200N•m
300N•m
500N•m
Load division value
0.1N•m
Maximum speed
6000rpm
Accuracy
±1%
Power supply
±15VDC
Torque accuracy
＜±0.5%F•S、＜±0.35%F•S、＜±0.1%F•S3
Frequency Response
100μs
Nonlinear
＜±0.2%F•S
Importance
＜±0.1%F•S
Backlash
＜±0.1%F•S
Zero when the drift
＜±0.2%F•S
Zero drift
＜±0.2%F•S/10℃
Output impedance
350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option)
Insulation resistance
5000MΩ
Static Overload
120%、150%、200%(option)
Operating temperature
-10～50℃
Storage temperature
-20～70℃
Voltage
±15V±5%
Model
NDN-1000
NDN-2000
NDN-3000
NDN-5000
Max load value
1000N•m
2000N•m
3000N•m
5000N•m
Load division value
1N•m
Maximum speed
4500rpm
3000RPM
Accuracy
±1%
Power supply
±15VDC
Torque accuracy
＜±0.5%F•S、＜±0.35%F•S、＜±0.1%F•S350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option)
Frequency Response
100μs
Nonlinear
＜±0.2%F•S
Importance
＜±0.1%F•S
Backlash
＜±0.1%F•S
Zero when the drift
＜±0.2%F•S
Zero drift
＜±0.2%F•S/10℃
Output impedance
350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option)
Insulation resistance
5000MΩ
Static Overload
120%、150%、200%(option)
Operating temperature
-10～50℃
Storage temperature
-20～70℃
Voltage
±15V±5%
Model
NDN-10K
NDN-15K
NDN-30K
NDN-50K
NDN-100K
NDN-200K
Max load value
10KN·m
15KN·m
30KN·m
50KN·m
100KN·m
200KN·m
Load division value
0.01KN·m
0.1KN·m
Maximum speed
3000rpm
2000rpm
1500rpm
1000rpm
Accuracy
±1%
Power supply
±15VDC
Torque accuracy
＜±0.5%F•S、＜±0.3%F•S、＜±0.1%F•S（可选）
Frequency Response
100μs
Nonlinear
＜±0.2%F•S
Importance
＜±0.1%F•S
Backlash
＜±0.1%F•S
Zero when the drift
＜±0.2%F•S
Zero drift
＜±0.2%F•S/10℃
Output impedance
350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω（option）
Insulation resistance
500MΩ
Static Overload
120%、150%、200%（option）
Operating temperature
－10～50℃
Storage temperature
－20～70℃
Voltage
±15V±5%
Exterior structure
