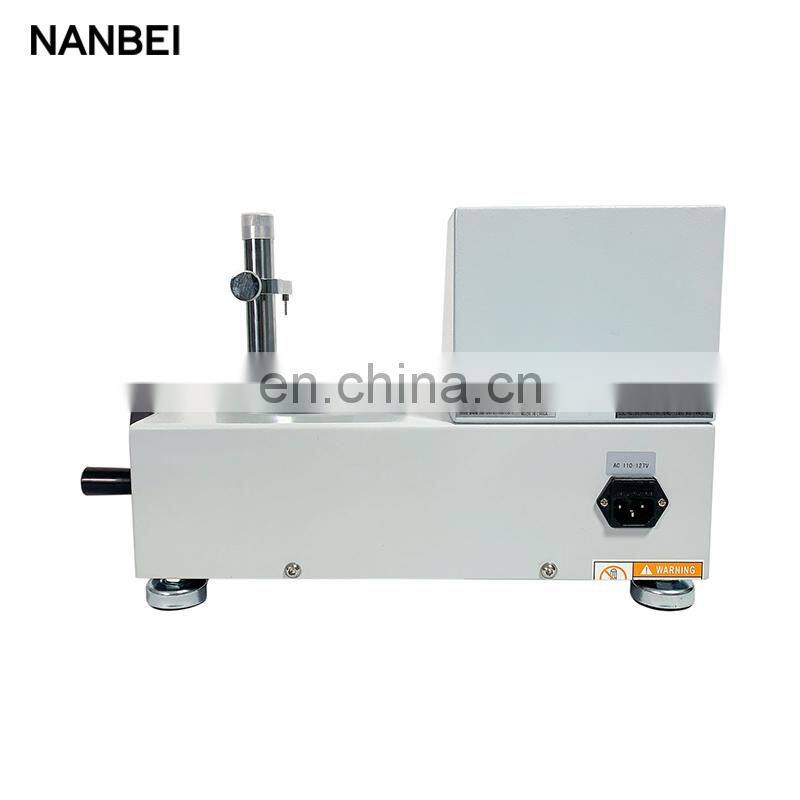

Digital Torsion Spring Torque Tester Torsional Spring Tester photo-1

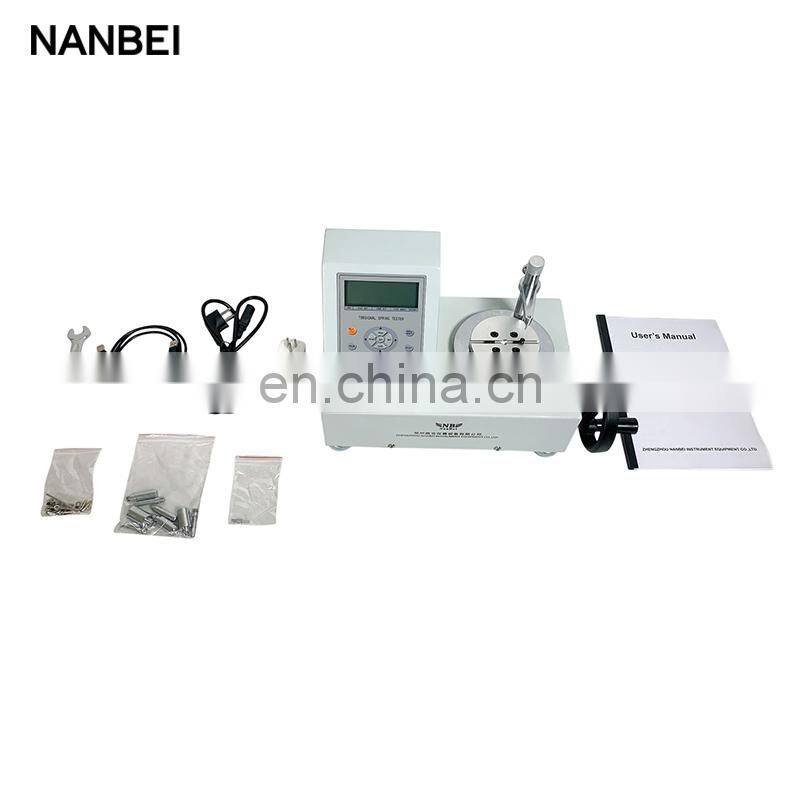

Digital Torsion Spring Torque Tester Torsional Spring Tester photo-2

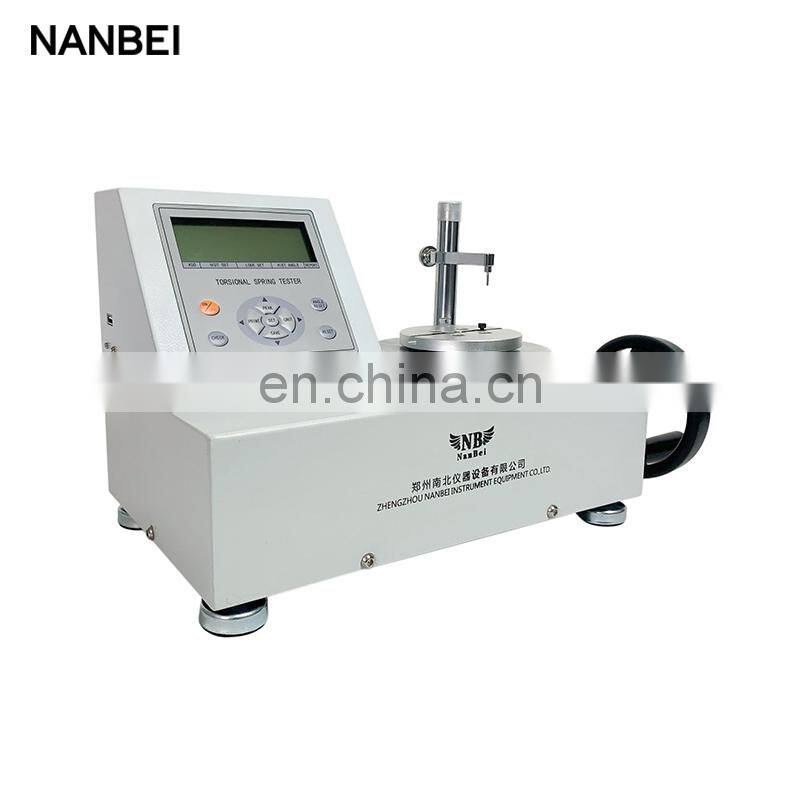

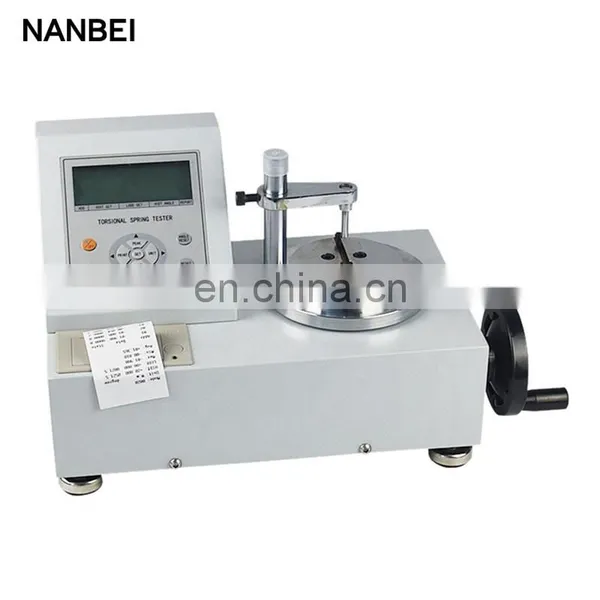

Digital Torsion Spring Torque Tester Torsional Spring Tester photo-3
Digital Torsion Spring Torque Tester Torsional Spring Tester photo-4

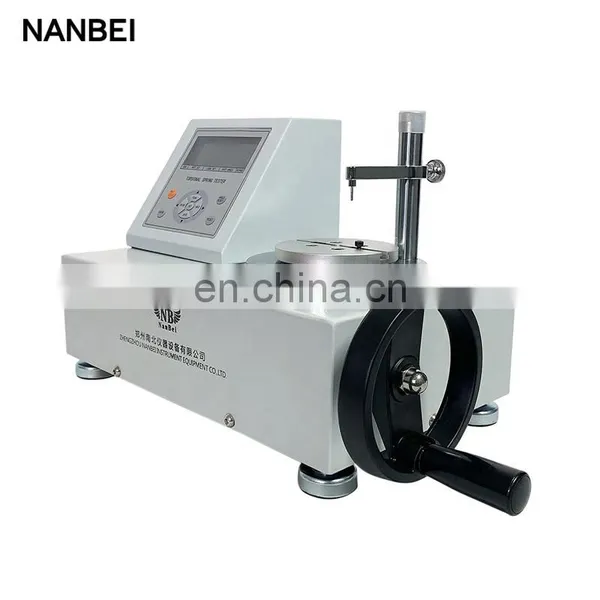

Digital Torsion Spring Torque Tester Torsional Spring Tester photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Digital Lab Torsional Spring Torque Tester

Application and description

NNH series of digital torsional spring testing machine is designed for testing and testing a variety of torsion spring and an intelligent multi-function measuring instruments. With simple operation, high precision, full function, easy to carry and so on Widely used in a variety of electrical, light industry, machinery manufacturing, research institutions and other industries.

Feature

1. torsional spring testing machine is with high precision, high resolution, sampling speed, large screen display. 2.the use of high-precision torque sensor, with torque direction display. High precision rotary encoder, angle arbitrary measurement 3.can be free to set the upper and lower torque value and the maximum, small rotation angle value, beyond the set range when the text flicker and buzzer alarm. 4.three parameters display (torque force value, rotation angle, spring stiffness) 5. three units of mutual conversion, to choose from (N · m, kgf · cm, Ib · in). 6.real-time, peak, automatic peak three modes can be free to switch. 7.the use of USB interface and PC communication, synchronization test function can be connected to computer testing, computer synchronization display test torque and angle torque and time angle and time curve and the test process detailed measurement parameters of the record, and can save, Do all kinds of analysis. 8.peak hold, automatic release function, release time free set. 9.large storage capacity, can save 99 sets of test data. 10.no operation automatically shut down function, time can be set freely.
Specification
Model
NNH-500A
NNH-1000A
NNH-2000A
NNH-3000A
NNH-5000A
Range
500mN.m
5105.2gf.cm
4431.1mLbf.in
1000mN.m
10210gf.cm
8862.2mLbf.in
2000mN.m
20421gf.cm
17724mLbf.in
3000mN.m
36631gf.cm
26587mLbf.in
5000mN.m
51052gf.cm
44311mLbf.in
Division value
0.01mN.m
0.1gf.cm
0.1mLbf.in
0.1mN.m
1gf.cm
1mLbf.in
Measuring angle range
0~9999.9°
Angular resolution
0.1°
Accuracy
±1%
Spring height
＜80mm
Torque Plate Diameter
100mm
Operate
manual
Dimension
450× 220×260﹙mm﹚
Power
AC220ν~50HZ
Model
NNH-1
NNH-2
NNH-3
NNH-5
NNH-10
NNH-20
Range
1N.m
10.21kgf.cm
8.862Lbf.in
2N.m
20.42kgf.cm
17.724Lbf.in
3N.m
30.63kgf.cm
26.586Lbf.in
5N.m
51.052kgf.cm
44.311Lbf.in
10N.m
102.1kgf.cm
88.62Lbf.in
20N.m
204.2kgf.cm
177.24Lbf.in
Division value
0.0001N.m
0.001gf.cm
0.001mLbf.in
0.001N.m
0.01gf.cm
0.001mLbf.in
Measuring angle range
0~9999.9°
Angular resolution
0.1°
Accuracy
±1%
Spring height
＜80mm
Torque Plate Diameter
100mm
Operate
manual
Dimension
450× 220×260﹙mm﹚
Power
AC220ν~50HZ
