Product Description
High Repeatability Mie scattering laser particle size analyzer
•Feature and Description
1. Reliable optical platform
2. Optimized single-lens optical path structure
3. High-performance imported He-Ne laser emitter
4. New design of spatial filter & the patent of integrated laser emitter
5. High-sensitivity photoelectric detecting array
6. Long-focus Fourier lens
7. Intelligent automated alignment
8. Advanced data collection and processing technology
9. High-performance, easy-to-use dry-dispersion measurement system

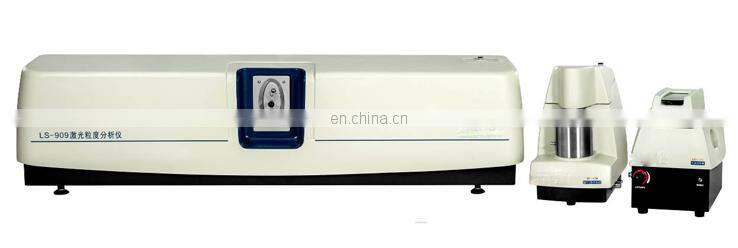

•Picture for Our product
•Usage and Application
1.Applications:
Measure the particle size distribution of samples have to be dispersed in liquid or of powders to
be dispersed in gas.
2.Theory:

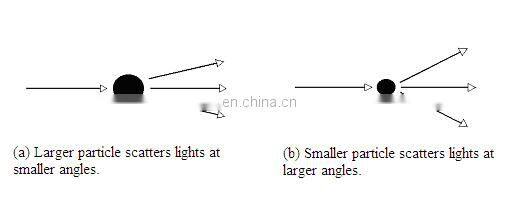

Light is an electromagnetic wave. When light meets with particles on it way of traveling, the interaction between
light and particles will result in deviations of part of the light, which is called light scattering. The bigger the
scattering angle is, the particle size will be smaller, the smaller the scattering angle is, the particle size will
be bigger. The particle analyzer instruments will analyze the particle distribution according to this physical
character of the light wave.
•Technical data
1. Theory: Mie scattering
2. Measuring Range: 0.02~2100μm(wet), 0.1~2100μm (dry)
3. Sample Feeding: wet/dry dispersion(automated circulating)
4. Repeatability: <1% (standard sample D50)
5. Alignment: intelligent automated alignment, accuracy: 0.2μm
6. Measurement Duration: 1-2 minutes
7. Detecting Channels: 91
8. Light Source: imported He-Ne laser, > 2.0 mW, wavelength: 0.6328 μm
9. Analog digital conversion (ADC): 18bit
10. Environmental Requirement:
Temperature: 5-35℃ Humidity:<85%
11. Report Items: Particle size distribution table & graph, Average diameter, Median diameter, SSA, etc.
12. Power supply: 200~240V AC 50Hz 80VA
13. Dimension(L X W X H):1320×340×360mm(mainframe)
1600×450×480mm (packaging)
•Realeated products

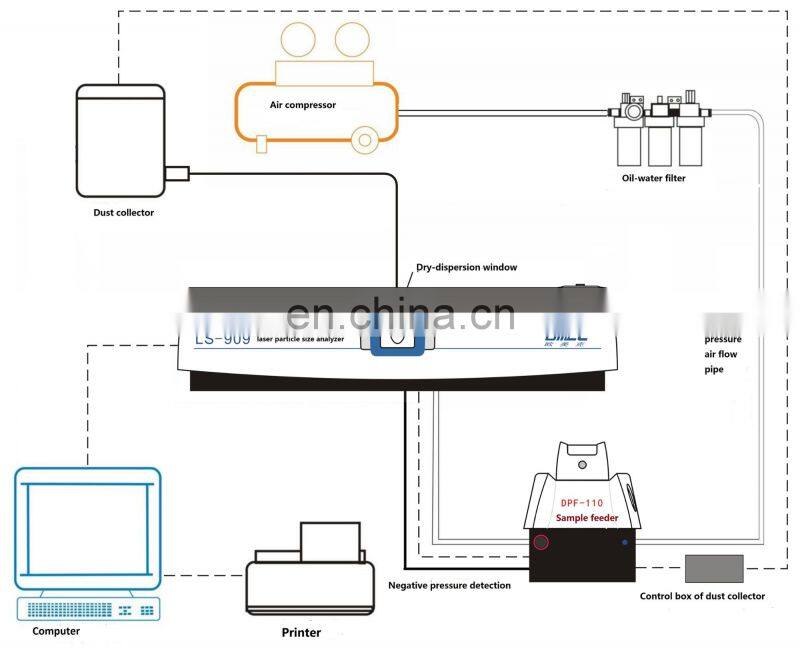

1. High-performance, easy-to-use dry-dispersion measurement system

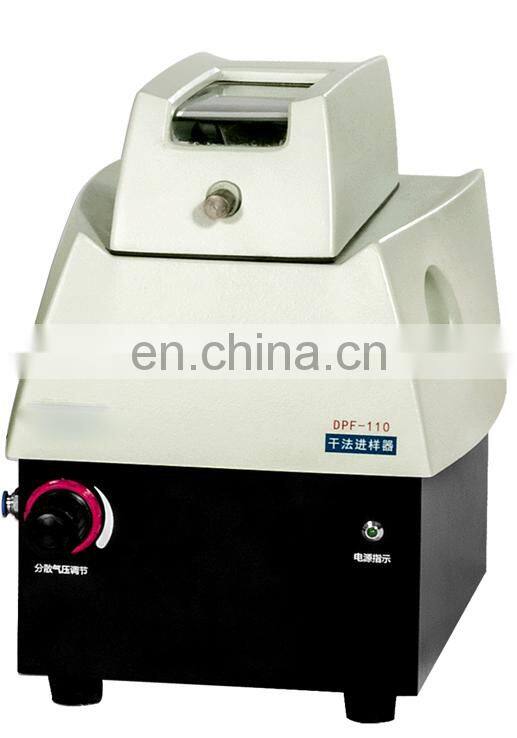

DPF-110 Automated dry-dispersion sample feeding system
![]() |
![]() |
Technical features of DPF-110 1. Concise and fluent design, elegant appearance. 2. Communication recognition between sample feeder and main engine; SOP automated measurement function: automated positive and negative pressure switch, automated feeding, automated sample measuring, automated cleaning.
|

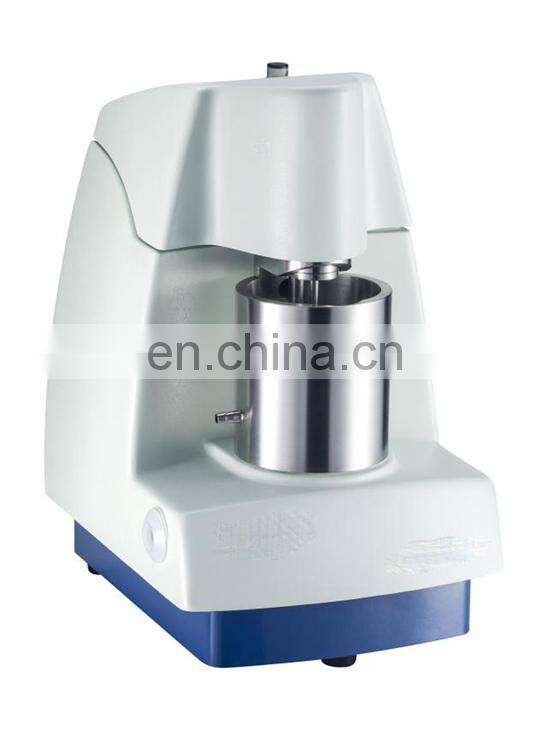

2.High-performance wet-dispersion circulating sample feeding system
SCF-105B Circulating Sample Feeding System
![]() |
Technical features SCF-105B 1. Concise and fluent design, elegant appearance. 2. Self-priming pump owns automatic water feeding, drainage and cleaning functions. 3. Realize the communication with the instrument mainframe, all control and actions are executed by software. |
|
|

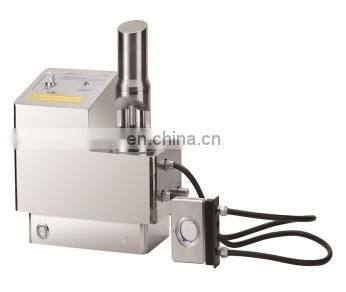

Technical features of SCF-126 circulating sampling system 1. SCF-126 can be configured with LS-909. Most of the overall structure uses stainless steel. 2. Small volume for circulation loop and sample cell, it will consume fewer dispersants. 3. Can be used for the measurement of valuable powder samples. 4. Sampling system uses centrifugal pump structure, selects imported motor, speed: 450~3500 rpm (stepless speed control). 5. Use precision potentiometer knob to adjust the motor speed to realize stepless speed regulating. 6. Speed control circuit owns speed detection module, it can control the rotate speed of water pump accurately. 7. Use external DC 24V power module for power supply, it can improve the safety factor of system. 8. The pipeline of sample feeder can resist the corrosion from weak acid and weak base properly. 9. The user can select the configuration of anti-corrosion, the internal pump body’s sealing ring uses FKM, the external pipeline may use EPDM or FKM. |
•Package & Shipping
![]() |
1.Company Show
2.Factory Show
1.Certification
2.Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥

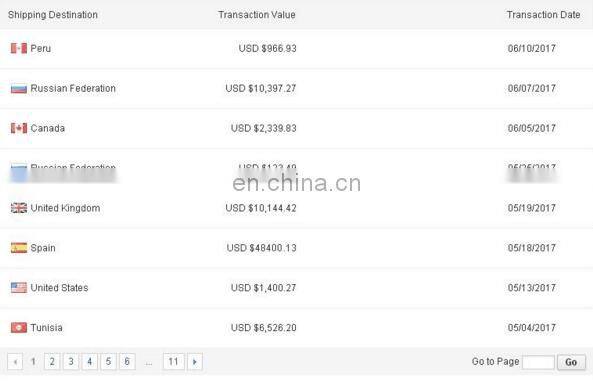

2.Transaction History
