Spring push and pull measurement Instruments digital spring tester
Function
The ATH spring pull pressure test stand is specially design for measuring the stretches and
compression distortion value of spring, and the load relations characteristic.
It is applied in measuring the working load of spring when it on the certain length stretched and
compressed.
Parameter
1:Test spring max unsupported length: 10N~30N is 100mm, 50N~500N is 150mm, 1000N~5000N is 200mm
2:Max distortion value stroke: 10N~30N is 70mm, 50N~500N is 90mm, 1000N~5000N is 150mm
3:Distortion value resolution eH: 0.01mm
4:Distortion value display interface: Five figures and “-” position liquid crystal display;
5:Max working load: According to measuring range;
6:Load resolution eP: 0.02N
7:Platen diameter: 49mm
8:Shows value error: ±1%
9:Power source: Exchanges 220V-50Hz
10:Power: 13W
11:Operating temperature: 20±10℃
12: Storage and transport temperature: -27℃~+70℃
13:Relative humidity: 15%~80%RH.

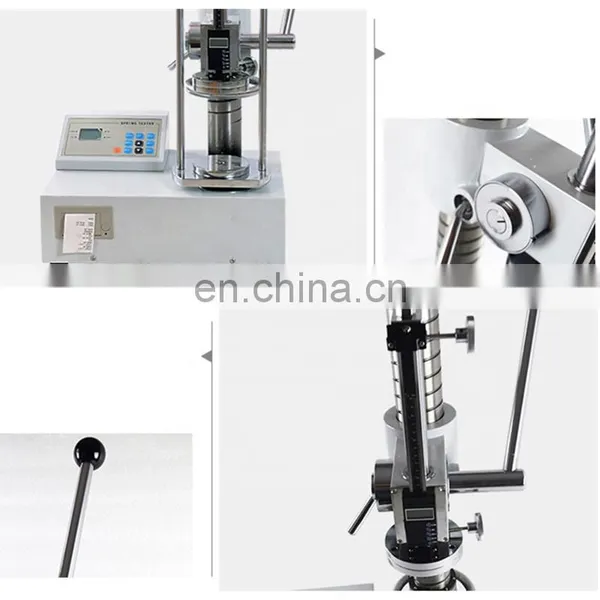

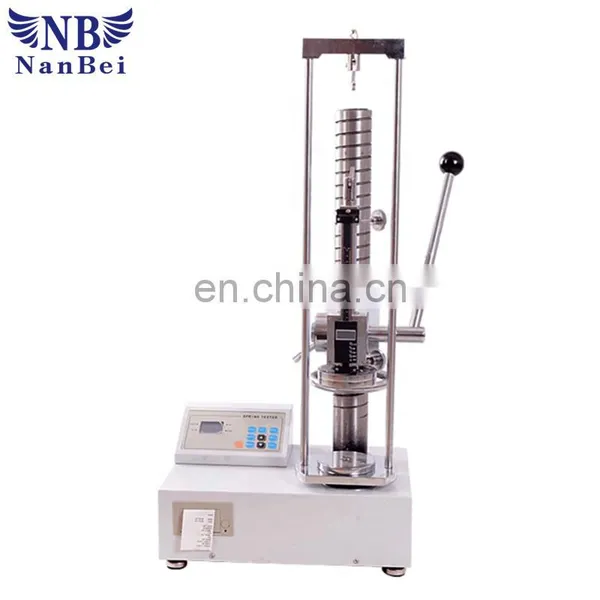

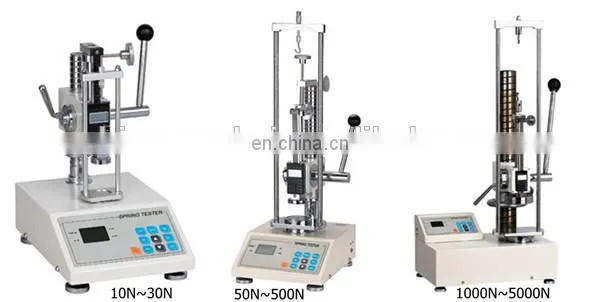

Product pictures
1000N~5000N:
|
Model Number |
ATH- 1000 |
ATH- 2000 |
ATH- 3000 |
ATH- 5000 |
|
Max testing load |
1000N |
2000N |
3000N |
5000N |
|
Mini resolution |
0.1N |
|||
|
Diameter of the platen |
108mm |
|||
|
Max free length of measurable spring |
200mm |
|||
|
Length of travel of the displacement scale |
150mm |
|||
|
Division value of the displacement scale |
0.01mm |
|||
|
Indication error |
±1% |
|||
|
Power Supply |
AC 110-220V, 50HZ-60HZ |
|||
|
Power capability (without printer) |
13W |
|||
|
Power capability (with printer) |
20W |
|||
|
Working temp. |
20±10℃ |
|||
|
Temp. of storage and transportation |
-27℃~+70℃ |
|||
|
Relative temp. |
15%~80%RH |
|||
100N~500N:
|
Model Number |
ATH- 100 |
ATH- 150 |
ATH- 200 |
ATH- 300 |
ATH- 500 |
|
Max testing load |
100N |
150N |
200N |
300N |
500N |
|
Minimum resolution |
0.01N |
||||
|
Diameter of the platen |
48mm |
||||
|
Max free length of measurable spring |
150mm |
||||
|
Length of travel of the displacement scale |
90mm |
||||
|
Division value of the displacement scale |
0.01mm |
||||
|
Indication error |
±1% |
||||
|
Power Supply |
AC 110-220V, 50HZ-60HZ |
||||
|
Power capability (without printer) |
13W |
||||
|
Power capability (with printer) |
20W |
||||
|
Working temperature |
20±10℃ |
||||
|
Temperature of storage and transportation |
-27℃~+70℃ |
||||
|
Relative temperature |
15%~80%RH |
||||
1.Company Show2.Factory Show
Certificate
After-Sale Service
Please feel free contact for more details .Thanks
