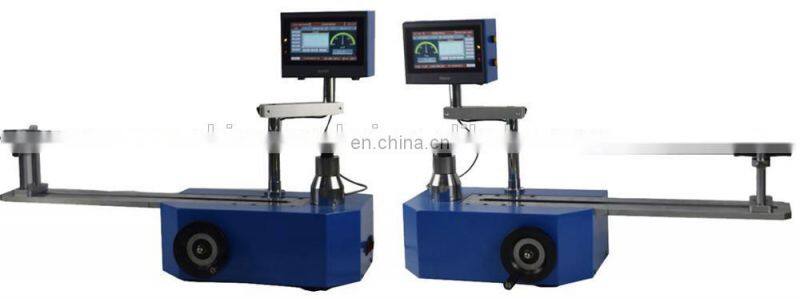

Touch screen digital torque wrench calibration machine
Application and Usage
The ANJ-M torque wrench tester is a special device for verifying torque wrenches and torque wrenches
Mainly used to detect a variety of fixed-type torque wrench, digital torque wrench, preset torque wrench, torque screwdriver, screwdriver and other equipment involved in tightening force and products
Widely used in electrical manufacturing, machinery manufacturing, automotive light industry, professional research and testing industry.
Feature

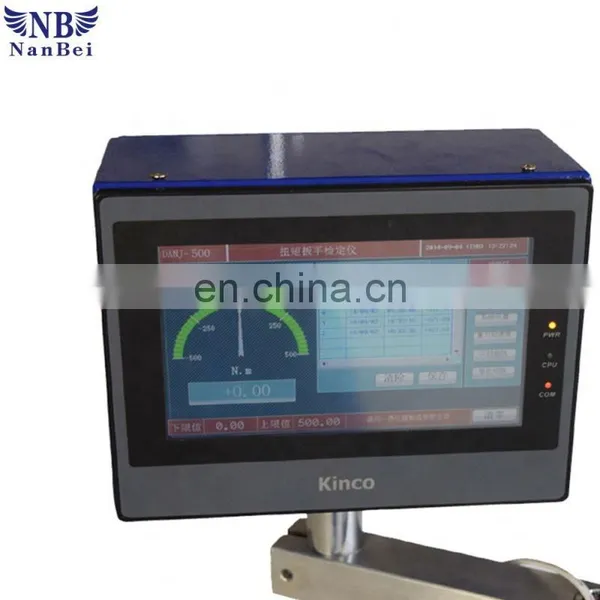

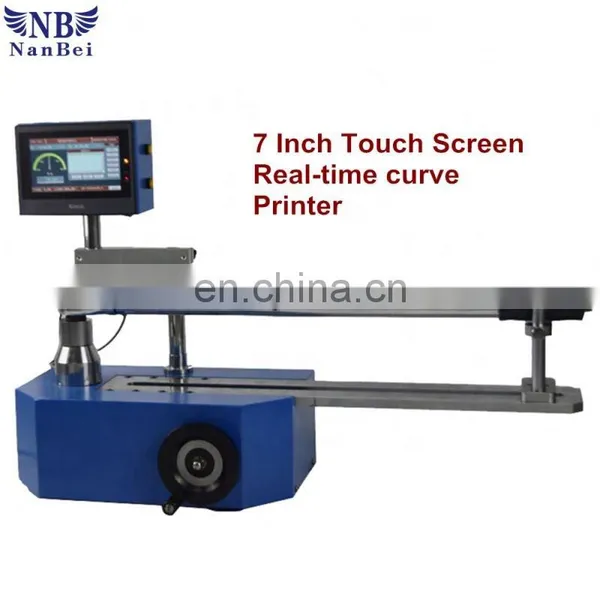

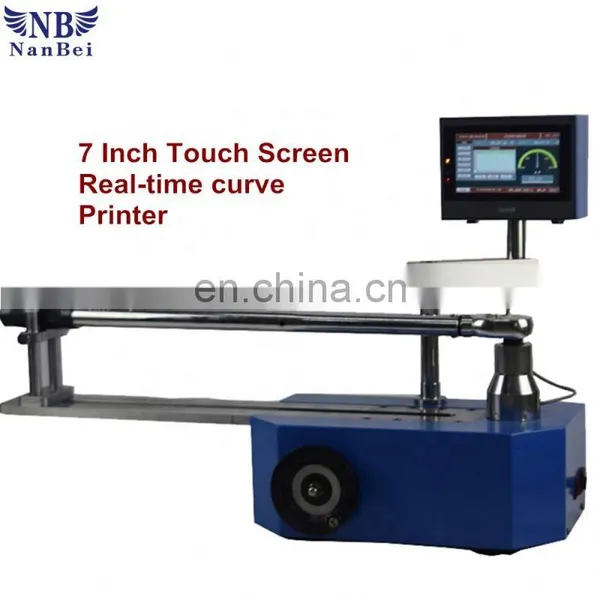

1. Seven-inch touch screen, can display real-time curve;
Can switch between Chinese and English;
3. The use of high-precision torque sensor, with torque direction display;
4. Three units convert each other to choose from (N.m kgf.cm Ibf.in)
5. Can be inserted U disk to save the data can be printed;
6. Storage capacity, you can save the data to the U disk, save the data automatically saved as Excel format documents.
7. Using worm gear drive, the torque load more stable, more effort to operate.
8.480 × 800 resolution color screen;
9. High precision, high resolution, sampling speed;
10. The upper and lower limits should be set, the font red light and buzzer sound and light alarm;
11. Real-time, peak two modes can be free to switch;
12. Peak hold function;

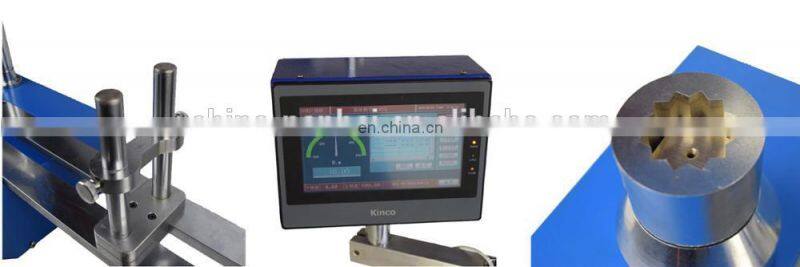

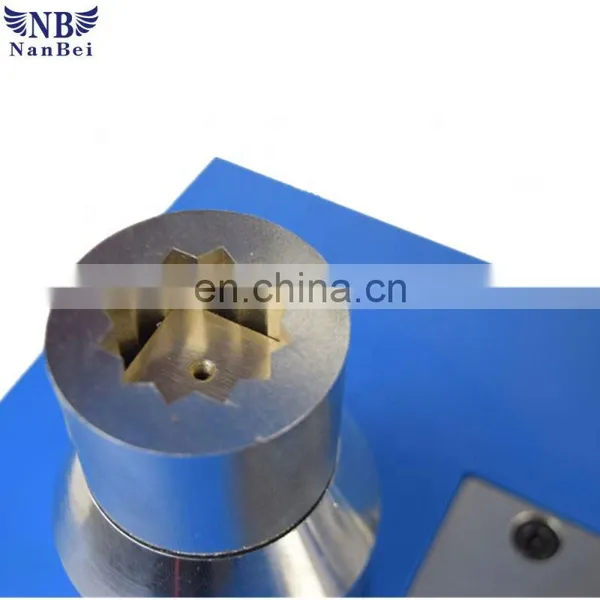

Picture for Our product
Technical data
|
Model |
ANJ-M100 |
ANJ-M200 |
ANJ-M300 |
ANJ-M500 |
ANJ-M1000 |
ANJ-M2000 |
ANJ-M3000 |
|||
|
Measurement range / scale value |
N.m |
100.0/0.01 |
200.00/0.01 |
300.00/0.01 |
500.00/0.01 |
1000.0/0.1 |
2000/0.1 |
3000/0.1 |
||
|
Kgf.cm |
1021.0/0.1 |
2040.0/0.1 |
3063.1/0.1 |
5105.2/0.1 |
10210/1 |
20420/1 |
30631/1 |
|||
|
lbf.in |
886.2/0.1 |
1772.4/0.1 |
2658.6/0.1 |
4431.1/0.1 |
Jan-62 |
17724/1 |
26586/1 |
|||
|
Dimension |
880mm×350mm×550mm |
1250mm×500mm×800mm |
||||||||
|
Check length range |
130mm~750mm |
250mm~980mm |
250mm~1800mm |
|||||||
|
Width stroke |
0~60° |
0~360° |
||||||||
|
Height stroke |
130mm |
150mm |
||||||||
|
Accuracy |
±1% |
|||||||||
|
Peak sampling frequency |
2000HZ |
|||||||||
|
Power |
AC220V/50HZ |
|||||||||
|
Net weight |
65kg |
335kg |
||||||||

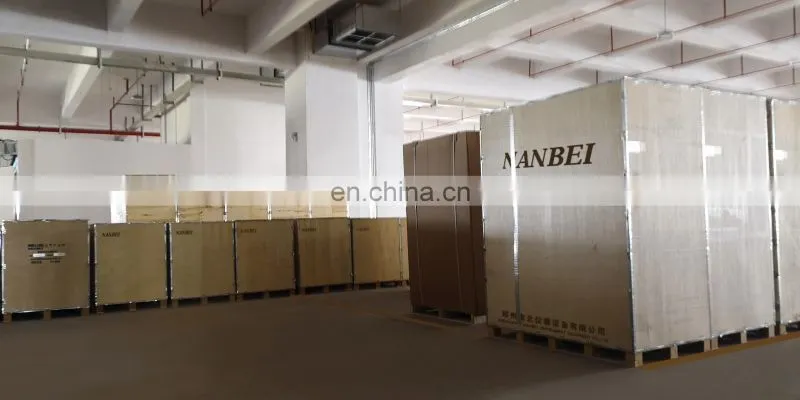

Packing and Shipping
1.Company Show
2.Factory Show
1.Certification
2.Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training.♥♥
We do not just sell equipment,we pay more attention to provide users with
high quality service!Thanks.
