Product Description

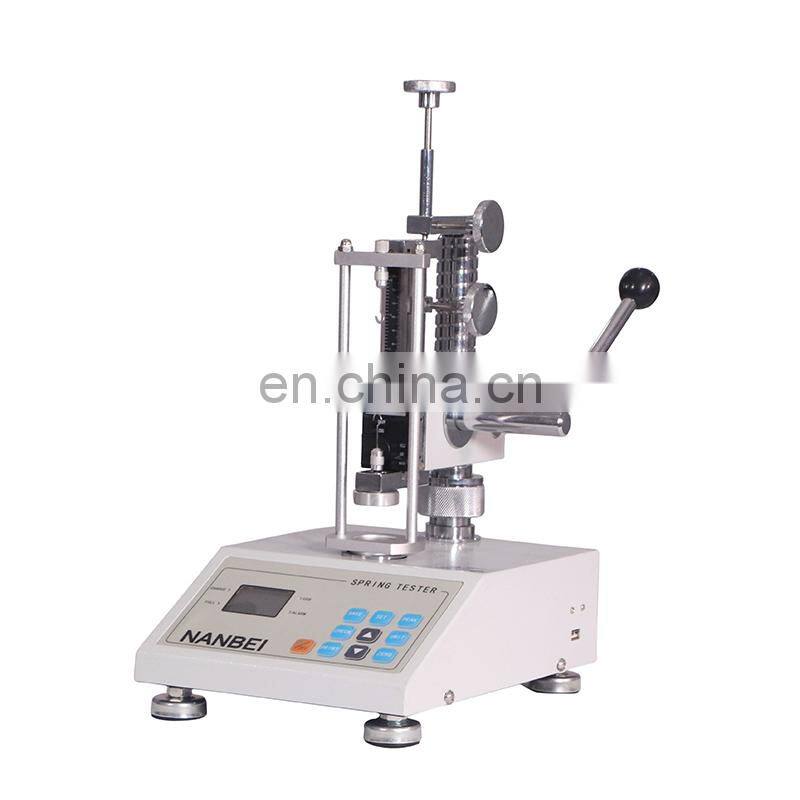

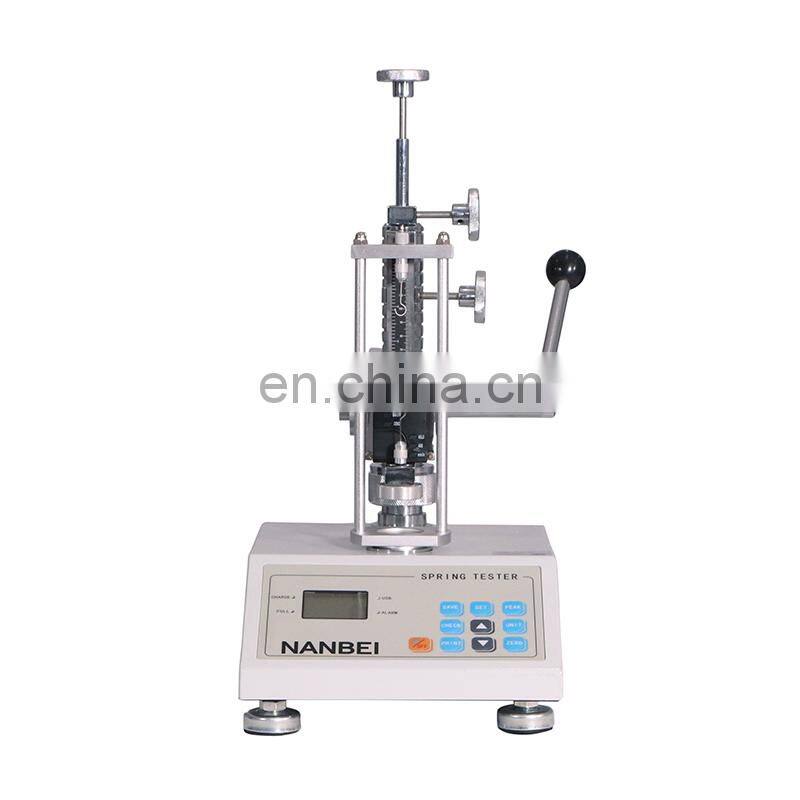

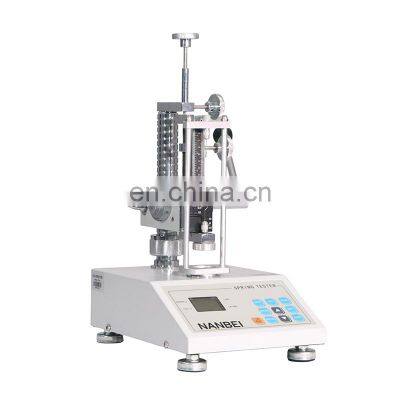

Digital Spring tester
Application and Usage
NTH series of digital spring tension and compression testing machine is to test the tensile, compression spring deformation and load characteristics of the special equipment.
For tensile and compression springs under a certain length of work load test, can also be used for spring, rubber and other elastic device elastic load test. The instrument has a print with no print.
More Details
Feature
1.high-precision high-resolution: precision 1, the minimum reading of 0.001N;
2.three kinds of display options: real-time, peak, automatic peak;
3. three units of conversion: N, kg, lb
4.the peak to maintain the function: to capture the test peak;
5.the comparison function: the upper and lower limits of free deviation set, the alarm lights were to traffic lights and peak automatic alarm;
6.the automatic peak function: peak hold time (1 to 99 seconds) free to set;
Specification
Model Number | ATH- 10 | ATH- 30 | ATH- 50 | ATH- 100 | ATH- 200 | ATH- 500 | ATH- 1000 | ATH- 3000 | ATH- 5000 | ||||||||
Maximum testing load | 10N | 30N | 50N | 100N | 200N | 500N | 1000N | 3000N | 5000N | ||||||||
Minimum resolution | 0.001N | 0.01N | 0.1N | ||||||||||||||
Diameter of the platen | 34mm | 48mm | 108mm | ||||||||||||||
Maximum free length of measurable spring | 80mm | 150mm | 200mm | ||||||||||||||
Length of travel of the displacement scale | 60mm | 90mm | 150mm | ||||||||||||||
Division value of the displacement scale | 0.01mm | ||||||||||||||||
Indication error | ±1% | ||||||||||||||||
Power Supply | AC 110-220V, 50HZ-60HZ | ||||||||||||||||
Power capability (without printer) | 13W | ||||||||||||||||
Power capability (with printer) | 20W | ||||||||||||||||
Working temperature | 20±10℃ | ||||||||||||||||
Temperature of storage and transportation | -27℃～+70℃ | ||||||||||||||||
Relative temperature | 15%～80%RH | ||||||||||||||||
