Laboratory Ultrapure UP Water Deionized RO Water Equipment

Laboratory Ultrapure UP Water Deionized RO Water Equipment thumbnail-1
Laboratory Ultrapure UP Water Deionized RO Water Equipment thumbnail-2
Laboratory Ultrapure UP Water Deionized RO Water Equipment thumbnail-3
Laboratory Ultrapure UP Water Deionized RO Water Equipment thumbnail-4
Laboratory Ultrapure UP Water Deionized RO Water Equipment thumbnail-5
Laboratory Ultrapure UP Water Deionized RO Water Equipment photo-1
Laboratory Ultrapure UP Water Deionized RO Water Equipment photo-2
Laboratory Ultrapure UP Water Deionized RO Water Equipment photo-3
Laboratory Ultrapure UP Water Deionized RO Water Equipment photo-4
Laboratory Ultrapure UP Water Deionized RO Water Equipment photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products


Ultrapure water system

Suitable for molecular biology, life sciences, genetic research, cell culture, amino acid analysis, protein purification, toxicology research, drug development, medical testing
Features
1.Applicable to various water quality, the case is with powder coating. 2.The filter element adopts open mold injection technology and inside the machine 3.Korean quick-insert filter column is easy to replace and maintain. 4.The electrical appliance and waterways are completely separated to avoid circuit failure caused by moisture and water leakage. 5.Online water quality monitoring system, immediately measure the output water quality. 6.Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stop, storage tank automatically fill water, automatic stopping when water is full. 7.NSF certified pipeline has function of upgrading water quality and quantity. 8.Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere. 9.Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring. 10.Open door at front and back, this make filters replacement easy&convenient, the replacement can be easily completed without using any tools. 11.Double water intakes: RO water and UP water
Specification
Model
NB-UPW-VF 10/20/30 Comprehensive ultrapure water machine
Inlet water source
Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C
Water flow speed
1.5-2L/min ( with pressure barrel)
Machine capacity
10/20/30  L/H


Output
Water quality
RO water: desalination rate as high as 95-99% (when using new RO membrane)
UP water: resistivity 18.25MΩ.cm@25°C, TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/m, pyrogen<0.001EU/ml, RNases
≤0.01ng/ml, DNases≤3Pg/ml/ul
Power supply
220V/50Hz; 30-40W
Dimensions
L x W x H: 41 x 27 x 50cm
Application
Molecular biology, life sciences, genetic research, cell culture, amino acid analysis, protein purification, toxicological
research, drug development, medical testing

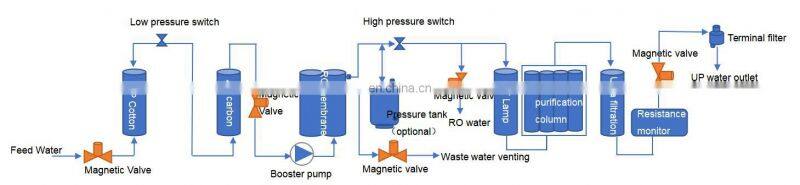

Step Process

Filter function

PP: PP cotton filter, except for sediment, rust, sludge, colloid, etc. AC: Granular activated carbon filter: except for color, odor, residual chlorine and heavy metals AC: Precision activated carbon filter: further removal, extending the life of the purification column RO: Reverse osmosis membrane filter: filter out <1nm pollutants, ions, particles UV: UV germicidal lamp: sterilization device, decomposition and photooxidation OC, lower TOC UP: Ultra-purification column: ion exchange resin bed, H+ and OH- ion removal UF: Ultrafiltration membrane: guarantees ultra-pure water granule bacteria with extremely low heat source content TF: 0.2μm terminal filter

Product consumables list

No
Filter element
Replace cycle
Quantity
1
11" PP filter
About 4-6 month
1 pc
2
11" activated carbon filter
About 4-6 month
1 pc
3
75 GPD RO membrane
About 1-2 years
2 pcs
4
11" ultra-purification column (imported resin)
About 1000 liter
4 pcs
5
0.2 μm imported PES terminal filter
About 2-3 years
1 pc
6
Imported 5000 Dalton UF heat source column
——
1 pc
7
Dual wavelength (185 & 254 nm) UV lamp (import)
About9000 hours
1 pc
Details Images
Recommend Products
Type 1 physical and chemical analysis type ultrapure water machine
Model
NB-UPW10/20/30
Inlet water source
Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C
Water flow speed
1.5-2L/min ( with pressure barrel)
Machine capacity
10/20/30 L/H
Output
Water quality
RO water: desalination rate as high as 95-99% (when using new RO membrane)
UP water: resistivity 18.25MΩ.cm@25°C, TOC: <15ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/m,
Application
All kinds of physical and chemical testing, biochemical analysis, blood test, microanalysis, washing special, HPLC, IC, GC,
analysis experiment.
Power supply
220V/50Hz; 30-40W
Dimensions
L x W x H: 41 x 27 x 50cm
Type 2 Ultra-low organic ultrapure water machine
Model
NB-UPW-V10/20/30
Inlet water source
Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C
Water flow speed
1.5-2L/min ( with pressure barrel)
Machine capacity
10/20/30 L/H


Output
Water quality
RO water: desalination rate as high as 95-99% (when using new RO membrane)
UP water: resistivity 18.25MΩ.cm@25°C, TOC: 1-3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/ml
Application
Atomic absorption/emission spectroscopy, mass spectrometry, TOC detection, environmental monitoring, biochip research and
development, trace organic matter analysis
Power supply
220V/50Hz; 30-40W
Dimensions
L x W x H: 41 x 27 x 50cm
Type 3  Ultra-low element type ultrapure water machine
Model
NB-UPW-F10/20/30
Inlet water source
Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C
Water flow speed
1.5-2L/min ( with pressure barrel)
Machine capacity
10/20/30  L/H
Output
Water quality
RO water: desalination rate as high as 95-99% (when using new RO membrane)
UP water: resistivity 18.25MΩ.cm@25°C, TOC: <10 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/ml


Application
High-sensitivity ICP/MS, PCR, ppt level analysis, isotope analysis, molecular biology, life sciences, CDC, drug inspection
institutes, quality inspection institutes, university scientific research and other standard laboratories and various high-end
precision instruments.
Power supply
220V/50Hz; 30-40W
Dimensions
L x W x H: 41 x 27 x 50cm
Company Profile
Certifications
FAQ
Q1: Why Choose NANBEI ? (1).Professional manufacturer with more than 13 years experience (2).Exported to more than 97% Countries (3).Turnkey Solution is no problem Q2:OEM,ODM acceptable or not? Absolutely Yes Q3:What's kind of Payment terms for customer choosing? T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ... Q4:Can we visit your factory online? Absolutely no problem Q5:Can online video inspection before shipment? Absolutely no problem Q6: what's the MOQ ? Sample order is OK? MOQ:1 set, sample order is no problem Q7:What's kind of shipment for customer choosing? Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements Q8:How to ensure product quality and after-sales service? We have CE, ISO quality certificate, and SGS authentication. After-sale service: 1.Warranty : 1 year 2.We supply free part for quality problem in warranty 3.Long life technical support and service
