Brief introduction
The 1000-1200℃ muffle furnace is a laboratory high-temperature heating equipment produced by NANBEI, also known as box-type muffle furnaces. High-temperature muffle furnaces are commonly found in university laboratories and corporate laboratories. It is widely used in molecular sieve, metal heat treatment, ash determination, food, drug residue, etc.
Features
1. The Max temperature is 1000℃ or 1200℃.
2. Using vacuum forming technology, the electric furnace wire is inlaid on the inner surface of the ceramic fiber furnace, and the furnace inner bladder is formed once to prevent the heating element from being polluted by volatiles.
3. The electric furnace wire is set on the four sides of the furnace, and the special furnace wire surface treatment anti-corrosion technology.
4. With thyristor control, PID parameter self-tuning function, manual/automatic non-interference switching function, programmable 30 time periods (optional), which can meet the requirements of continuous constant temperature and temperature control. It has a high temperature alarm function and a built-in parameter password control function.
5. The heating speed is 10-30℃/min, the heating speed is fast, the energy consumption of the empty furnace is small, and the energy saving is more than 50%.
6. The temperature control accuracy is high, the display accuracy is ±1℃; the temperature value is less than 3℃, and the temperature uniformity is ±6℃. (Ordinary national standard box-type electric furnace is ±15℃ for class A, ±10℃ for class B, and ±6℃ for class C. The temperature uniformity of Sigma SGM2825 tested by the Technical Supervision Bureau is ±2.9℃)
7. A variety of safety protection design, in line with CE safety certification, with the function of opening the door and power off, good safety performance, long service life
8. Rated voltage 220V, rated frequency 50HZ.
Optional Additional Accessories:
1. Optional observation hole, can observe the heating process changes in the furnace
2. Optional exhaust chimney
3. Optional carbon steel and stainless steel structure
4. Optional automatic power-off protection when opening the door
Specification
Model |
Internal Capacity |
Rated temperature |
Furnace size (MM) |
Chamber dimension (MM) |
Heating power（KW） |
Voltage(V) |
NBM·M6/10 |
6L |
1000℃ |
180×230×150 |
500×510×640 |
2.8 |
220 |
NBM·M8/10 |
8L |
1000℃ |
200×300×120 |
500×580×610 |
3.5 |
220 |
NBM·M10/10 |
10L |
1000℃ |
200×300×170 |
500×580×660 |
4 |
220 |
NBM·M16/10 |
16L |
1000℃ |
250×400×160 |
550×690×660 |
6 |
380 |
NBM·M25/10 |
25L |
1000℃ |
250×400×250 |
490×710×710 |
9 |
380 |
NBM·M30/10 |
30L |
1000℃ |
300×500×200 |
600×780×710 |
10 |
380 |
NBM·M6/12 |
6L |
1200℃ |
180×230×150 |
500×510×640 |
2.8 |
220 |
NBM·M8/12 |
8L |
1200℃ |
200×300×120 |
500×580×610 |
3.5 |
220 |
NBM·M10/12 |
10L |
1200℃ |
200×300×170 |
500×580×660 |
4 |
220 |
NBM·M15/12 |
15L |
1200℃ |
200×400×180 |
440×710×580 |
6 |
380 |
NBM·M16/12 |
16L |
1200℃ |
250×400×160 |
550×690×660 |
6 |
380 |
NBM·M25/12 |
25L |
1200℃ |
250×400×250 |
440×710×670 |
9 |
380 |
NBM·M30/12 |
30L |
1200℃ |
300×500×200 |
600×780×710 |
10 |
380 |

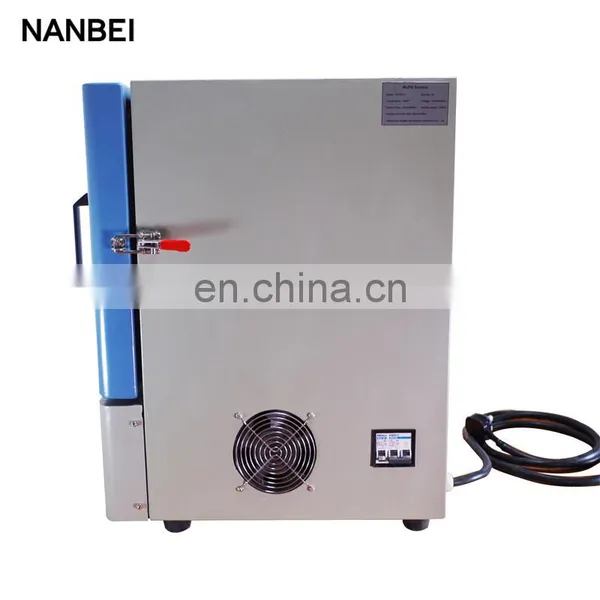

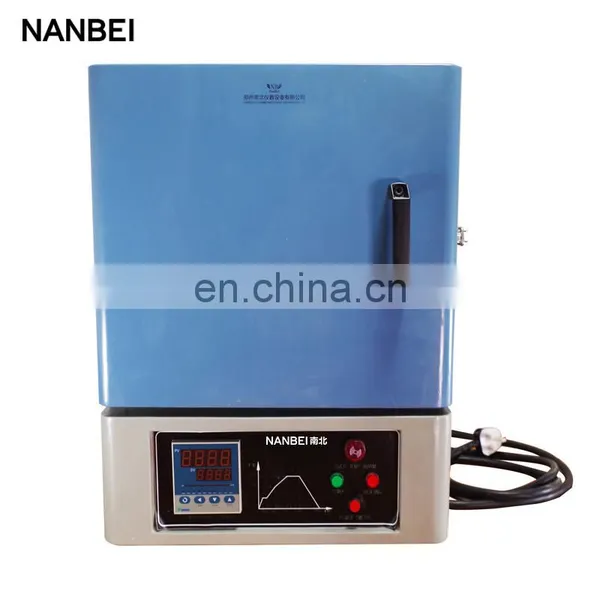

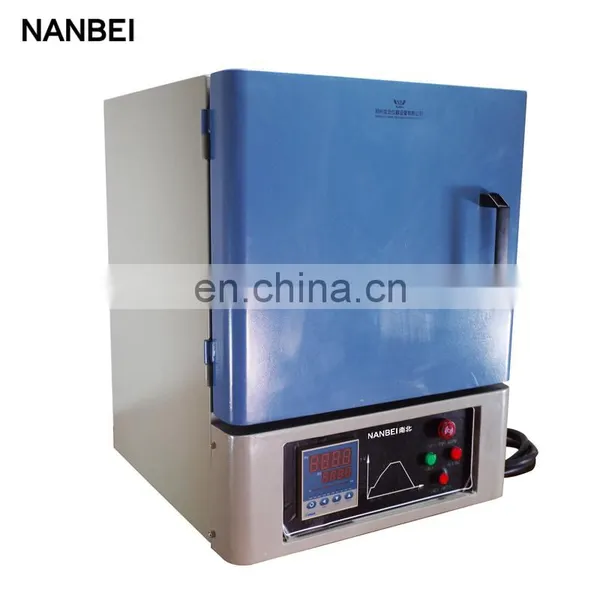

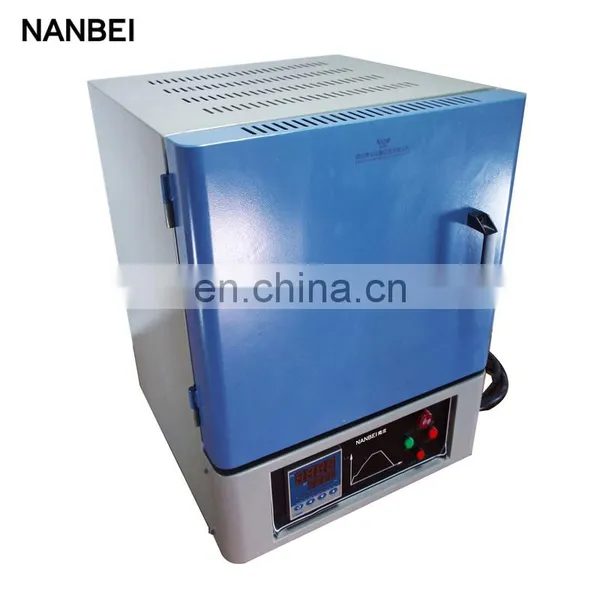

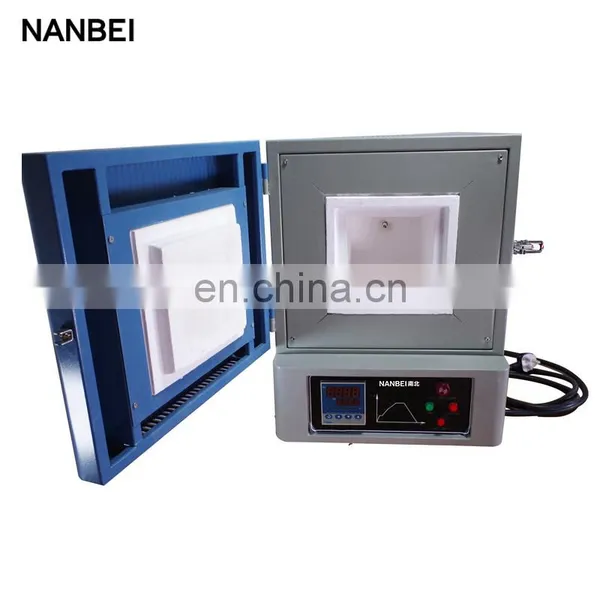

Details Images
Recommend Products
Company Profile
Certifications
FAQ
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
