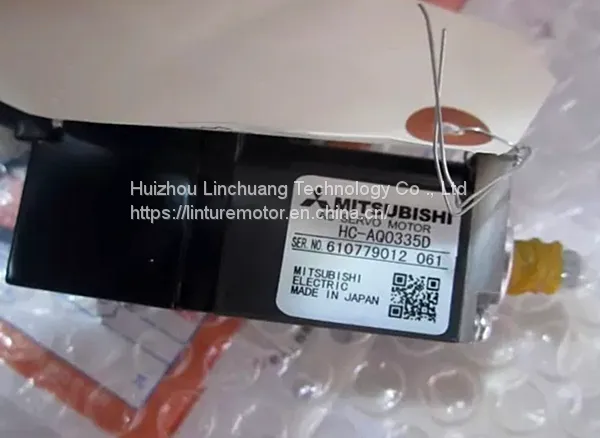

HC-AQ0335D Mitsubishi Controller High Torque Low Speed Servo Motor

HC-AQ0335D Mitsubishi Controller High Torque Low Speed Servo Motor thumbnail-1
HC-AQ0335D Mitsubishi Controller High Torque Low Speed Servo Motor photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Mitsubishi
Place of Origin:
Japan
Model Number:
HC-AQ033D
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mitsubishi
Place of Origin Japan
Model Number HC-AQ033D
Type Servo Motor
Certification CCC, CE
Usage Other, universal
Construction Permanent Magnet
Efficiency IE 2
Protect Feature Explosion-proof
Voltage(V) 200V
Output Power 30W
Continuous Current(A) 0.5A
Speed(RPM) 3000R/MIN
Commutation Brushless
Category: Industiral Servo Motor Model: HC-AQ0335D
Rated Output Power: 30W Rated Speed: 3000r/min
Series: HC-AQ Series Brand: Mitsubishi
High Light: ewing machine servo motor,electric servo motor


Mitsubishi 30W Melservo Industrial Servo motor HC-AQ0335D NEW in stock



Specifications
Description HC-AQ0336BS-S18
Rated Output 0.03KW
Rated Torque 0.287 (40.643)N · m (oz · in)
Rated Speed (*1) 3000 rpm
Maximum Speed 4500 rpm
nstantaneous Permissible Speed 5150 rpm
Rated Current (Maximum Current) 2.3 (7.4)
Accessory Encoder
Insulation Class Class B
Weight 0.25KG

Notes:


1.When the power supply voltage drops, we cannot guarantee the output and rated speed.
2.80% ED at low noise.
80% ED: Indicates the condition in which operation time at read torque accounts for 80% and the other no load time accounts for 20% in a single operation cycle.
3.When the servo motor is equipped with reduction gear or electromagnetic brake, refer to the corresponding outline dimension drawing. For the EN Standard and UL/cUL Standard compliant models, please contact Mitsubishi.
4.If the load inertia moment ratio exceeds the indicated value, please contact Mitsubishi.
5.When the equipment is to be used in places where it is subjected to oil and/or water, such as on machine field sites, optional features apply to the equipment.

6.Except for the shaft-through portion and connector end.


INSTALLTION of Protection from oil and water
(1) Next, the servo motor is not waterproof (IP44). Do not subject the servo motor to oil and water.
Especially for the HC-MF / HC-KF / HC-AQ / HC-KFS / HC-MFS and HA-FF series, do not subject the
shaft-through portion to oil.
(2) When the gear box is mounted horizontally, the oil level in the gear box should always be lower than
the oil seal lip on the servo motor shaft. If it is higher than the oil seal lip, oil will enter the servo motor, leading to a fault. The HC-MF / HC-KF / HC-AQ / HC-MFS and HC-KFS series servo motor is not equipped with an oil seal and cannot be used with the gear box as described above. Oil should be shut off on the gear box side.
(3) When installing the servo motor horizontally, face the power cable and encoder cable downward. When installing the servo motor vertically or obliquely, provide a trap for the cable.
(4) Do not use the servo motor with its cable soaked in oil or water. (Figure on the right)
(5) When the servo motor is to be installed with the shaft end at top, provide measures so that it is not
exposed to oil and water entering from the machine side, gear box, etc.
(6) If the servo motor is exposed to oil such as coolant, the sealant, packing, cable and others may be
affected depending on the oil type.
(7) In the environment where the servo motor is exposed to oil mist, oil, water, grease and/or like, the
servo motor of the standard specifications may not be usable. Contact us.
(8) In the case of the servo motor with oil seal, the oil seal may sound during operation. It poses no
problems in function.
