MHMD042P1C Panasonic Electronic Application Speed Control Mode

Panasonic AC Servo Motor Model MHMD042P1C 208-230 / 240 V 0.18KW-315KW

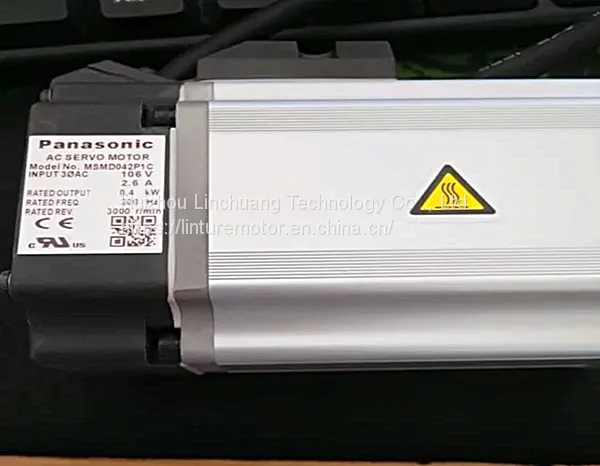

Servo motor MHMD042P1C

• Input: 3 ø AC 106 V, 2.6A

• Rated out Put 0.4 KW

• Rated Freq 200 Hz

• Rate Rotation 3000,r/min

Item specifics

Product Description:

MHMD082G1U 750W high inertia motor package, servo motor series A5; Power: 50W~5kW Inertia different characteristics Improvement: Slot positioning torque 0.5% or less Small size, ultra-lightweight: Light industry (1kW~5kW) High resolution: 17bit , Incremental 20bit Environmental Performance Upgrade: IP67 Fabric Connection: Full capacity connectivity.
The brand has developed a more responsive AC servo motor "MINAS-A5" series. The response frequency is doubled from the original 1kHz to 2kHz. By embedding a device such as a chip mounter, a probe, and an electronic component packaging machine used for manufacturing semiconductors and liquid crystals, the movable part can be quickly started or stopped. In addition, a lot of work has been done to reduce vibration, which helps to shorten the production time of a single piece of manufacturing equipment.
A5 series motor features:
Power: 50W~5kW Inertia
Feature improvement: Groove positioning torque below 0.5%
Small size and ultra-lightweight: Light industry (1kW to 5kW)
High decomposition rate: Type 17bit, incremental 20bit
Environmental performance upgrade: IP67 construction
Connection: Full capacity connectivity
A5 Series Driver Features
Power supply: single-phase AC100V, single/3-phase AC200V
Control Mode: Torque, Speed, Position, Full Closed Loop
Control parameters: expand the automatic setting range
Communicate with PC: Correspond to USB new software settings, operating performance upgrade
Installation: Interchange with A4

Packaging & Shipping
100% original new and factory sealed package. Regular packing reel, size ,tray, box etc.
Delivery within 3-5 days


Panasonic servo motor A4 series features:
1, automatic adjustment
* High performance real-time automatic adjustment gain
* According to the change of the load habit weight, with the adaptive filter, the gain can be automatically adjusted from low rigidity to high rigidity.
* When the vertical axis with different load torques is generated due to different rotation directions, it can be adjusted automatically.
* With abnormal speed detection, the abnormal speed generated during gain adjustment can be adjusted to normal.
* Through the display panel operation, you can set and confirm while monitoring the real-time adjustment.
2, high speed and high response
* Speed response frequency up to 1KHz.
* Built-in instantaneous speed observer to detect the speed of the motor at high speed and high resolution.
* High performance mechanical adaptability
* High-speed automatic adjustment function for high-speed positioning, whether it is a belt-driven machine that is easy to generate resonance or a high-rigid screw drive machine.
3, low vibration
* Adaptive filter
* Built-in adaptive filter, which automatically adjusts the frequency of the notch filter according to the mechanical resonance frequency.
* It is possible to control noise due to mechanical instability and changes in resonance frequency.
* Two notch filters
* Built-in filters with two *** channels different from the adaptive filter.
* Two notch filters can set the frequency and amplitude of the notch in units of 1 Hz.
