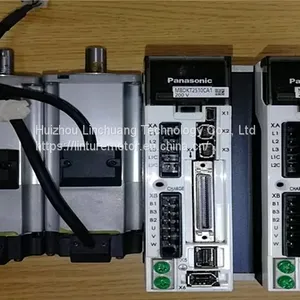

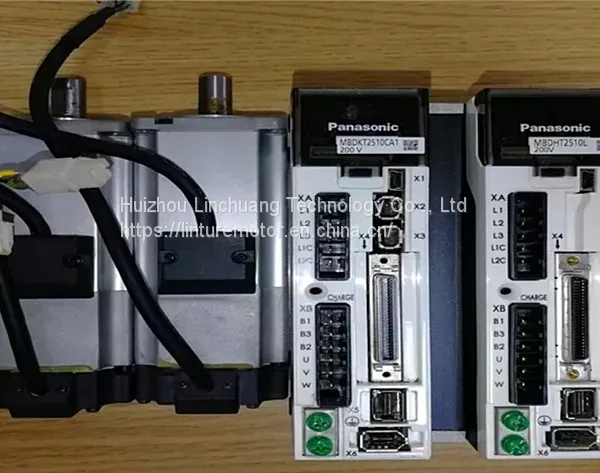

MHMJ042G1V+MBDKT2510 Panasonic 50w Servo Motor And Servo Driver

MHMJ042G1V+MBDKT2510 Panasonic 50w Servo Motor And Servo Driver photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Panasonic
Place of Origin:
Japan
Model Number:
MHMJ042G1V+MBDKT2510
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days
Brand Name Panasonic
Place of Origin Japan
Model Number MHMJ042G1V+MBDKT2510
Brand: Panasonic Model Number: MHMJ042G1V + MBDKT2510E
Country Of Origin: Japan Type: Servo Motor
Delivery Time: 2-3days Power - Rated: 50W
Voltage - Rated: 100, 200VAC RPM: 3000 RPM
Weight: 0.705 Lb (319.78g)

High Light: ewing machine servo motor,ac servo motor



AC Motor Servomotor 3000 RPM 400W Incremental 200VAC MHMD042G1U Panasonic






0.4KW 400W Panasonic Servo System MHMD042G1V AC SERVO MOTOR + MBDHT2510E AC SERVO DRIVER Original


Features:

Driver MBDHT2510E


1. Quick

* 2.0 KHz frequency response

* 20 bits/revolution

* Low cogging torque

* The input/output pulse 4 Mpps


2. Smart

* Highly functional real-time auto-gain tuning

* Manual/auto notch filter

* Manual/auto damping filter

* Motion simulation


3. Light

* New structure

* Innovative core

* Innovative encoder


4. Safe

* Complies with European safety standards

* Low noise

* IP67 enclosure rating


5. Easy

* Set-up support software

* Localized in 4 languages

* Service life prediction

* Encoder temperature monitor

Motor MHMD042G1V

*Leadwire type

*Small capacity

*Suitable for low stiffness machines with belt drivers

Applications:

Conveyors , Robots etc



Product Overview:


Digi-Key Part Number

MHMD042G1U-ND

Quantity Available

0


Manufacturer

Panasonic Industrial Automation Sales

Manufacturer Part Number

MHMD042G1U

Description

SERVOMOTOR 3000 RPM 200VAC

Manufacturer Standard Lead Time

11 Weeks

Detailed Description

AC Motor Servomotor 3000 RPM 400W Incremental 200VAC



Product Attributes Select All
Categories Motors, Solenoids, Driver Boards/Modules
Motors - AC, DC
Manufacturer Panasonic Industrial Automation Sales
Series MINAS A5
Part Status Active
Type AC Motor
Function Servomotor
Motor Type -
Voltage - Rated 200VAC
RPM 3000 RPM
Torque - Rated (oz-in / mNm) 184.1 / 1300
Power - Rated 400W
Encoder Type Incremental
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.551" (14.00mm)
Length - Shaft and Bearing 1.181" (30.00mm)
Mounting Hole Spacing 2.756" (70.00mm)
Termination Style Wire Leads
Features Key, Oil Seal
Gear Reduction Ratio -
Torque - Max Momentary (oz-in / mNm) 538.1 / 3800
Operating Temperature 0°C ~ 40°C
Approvals CE, CSA, cULus, TUV, UL
Weight 3.1 lbs (1.4kg)



Product Tags: motor , controller , moudel
