MSM3AZA8AX Little Motor Module Panasonic Application Toque Control

Name: MSM3AZA8AX Little Motor Module Panasonic Application Toque Control
Brand: Panasonic
Availability: InStock

FOB Price

USD $1 - $1000000 / Unit

1 Unit(Min.Order)

Supply Ability 100000 Unit / Units per Month
Port Shekou
Payment TermsT/T L/C PayPal
Delivery Detail6 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Panasonic		Place of Origin	Japan
Model Number	MSM3AZA8AX

Product Description

Brand:	Panasonic	Model Number:	MSM3AZA8AX
Country Of Origin:	Japan	Type:	Industrial Servo Drives
Delivery Time:	2-3days	RATED REV:	3000RPM
RATED Freq:	200HZ	RATED Output:	0.4KW
Input:	106V 2.5A
High Light:	ewing machine servo motor,ac servo motor

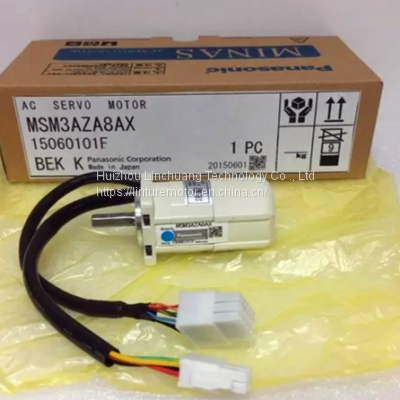

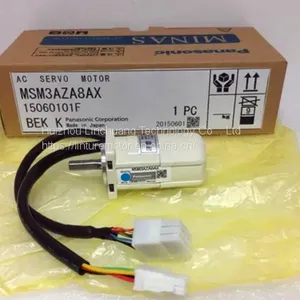

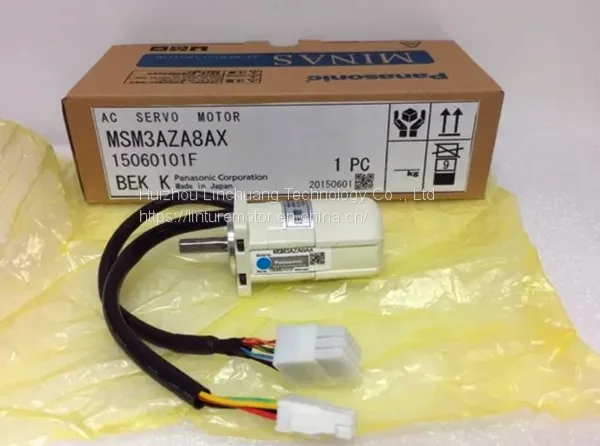

Industrial AC Servo Motor MSM3AZA8AX 106V 3000RPM Panasonic 0.4KW,2.5A 200Hz,116V

Quick Detail

RATED REV 3000RPM

RATED Freq 200Hz

RATED Output 0.4KW

Input 106V

Detailed Product Description

Brand	Panasonic
Country of origin	Japan
model number	MSM3AZA8AX

Product Details

Panasonic A-Series Motor
Manufacturer: Panasonic
Series: A-Series

Specifications:

Item				Specifications
Input power	100 V	Main circuit		Single phase 100 V ＋10 ％－15 ％　～120 V ＋10 ％－15 ％　50 Hz / 60 Hz
	100 V	Control circuit		Single phase 100 V ＋10 ％－15 ％　～120 V ＋10 ％－15 ％　50 Hz / 60 Hz
	200 V	Main circuit	A-frame to D-frame	Single/3-phase 200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
		Main circuit	E-frame, F-frame	Single/3-phase 200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
		Control circuit	A-frame to D-frame	Single phase 200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
		Control circuit	E-frame, F-frame	Single phase　200 V ＋10 ％－15 ％　～240 V ＋10 ％－15 ％　50 Hz / 60 Hz
Environment		temperature		Ambient temperature: 0 ˚C to 55 ˚C (free from freezing) Storage temperature: –20 ˚C to 65 ˚C (Max.temperature guarantee: 80 ˚C for 72 hours free from condensation^*1)
		humidity		Both operating and storage : 20 % to 85 %RH (free from condensation^*1)
		Altitude		Lower than 1000 m
		Vibration		5.88 m/s² or less, 10 Hz to 60 Hz
Control method				IGBT PWM Sinusoidal wave drive
Encoder feedback				23-bit (8388608 resolution) absolute encoder, 7-wire serial * When using the product as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. Instead, set the parameter Pr0.15 to [1] (default).
External scale feedback				A/B phase, initialization signal defferential input. Manufacturers that support serial communication scale: Fagor Automation S.Coop., Magnescale Co., Ltd., Mitutoyo Corporation Nidec Sankyo Corporation, Renishaw plc
Parallel I/O connector	Control signal		Input	General purpose 10 inputs The function of general-purpose input is selected by parameters.
	Control signal		Output	General purpose 6 outputs The function of general-purpose output is selected by parameters.
	Analog signal		Input	3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs)
	Analog signal		Output	2 outputs (Analog monitor: 2 output)
	Pulse signal		Input	2 inputs (Photo-coupler input, Line receiver input) Both open collector and line driver interface can be connected. High speed line driver interface can be connected.
	Pulse signal		Output	4 outputs ( Line driver: 3 output, open collector: 1 output) Line driver output for encoder pulses (A/B/Z signal) or external feedback pulses (EXA/EXB/EXZ signal) open collector output also available for Z or EXZ signal.
Communication function		USB		USB interface to connect to computers for parameter setting or status monitoring.
		RS232		1:1 communication
		RS485		1: n communication (max 31)
Safety function				A dedicated connector is provided for Functional Safety.
Front panel				(1) 5 keys (2) LED (6-digit)
Regeneration				A-frame, B,-frame: no built-in regenerative resistor (external resistor only) C-frame to F-frame: Built-in regenerative resistor (external resistor is also enabled.)
Dynamic brake				A-frame to F-frame: Built-in
Control mode				Switching among the following 7 mode is enabled, (1) Position control (2) Speed control (3) Toque control (4) Position/Speed control (5) Position/Torque control (6) Speed/Torque control (7) Full-closed control
