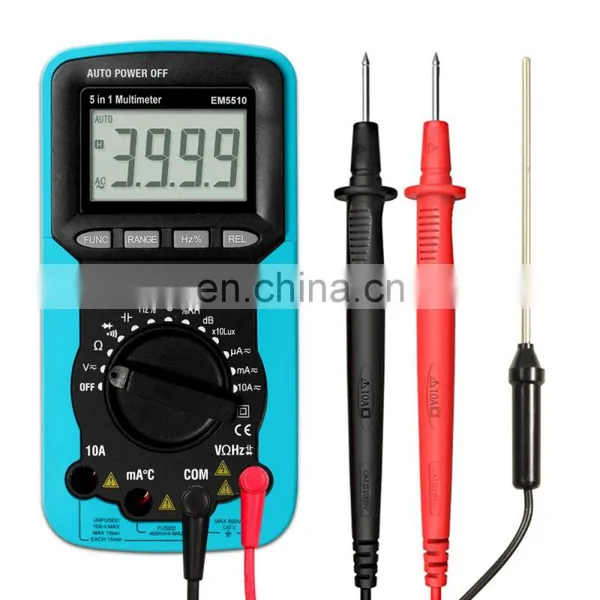

Allosun EM5510 Digital Multimeter 5 in 1 Sound Level Humidity Luminosity Autoranging Multimeter Temperature Tester

Introduction

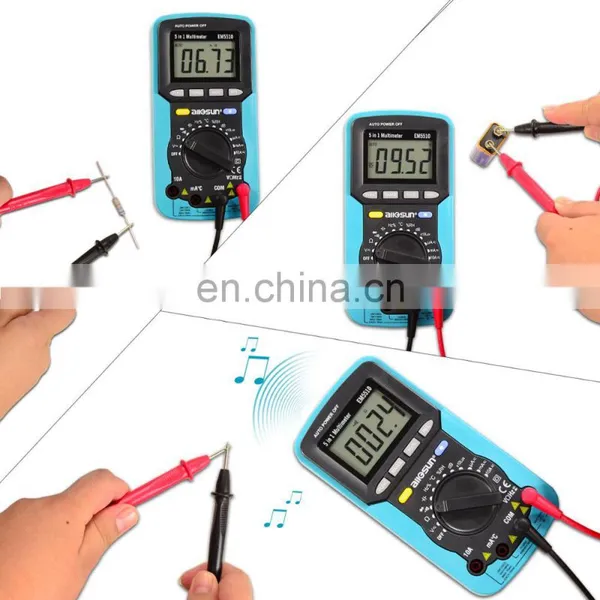

This multimeter is 4000 count,3 3/4-digit digital multimeter.It can be used to measure DC and AC voltage, DC and AC current,resistance,capacitance,frequecy,diode,temperature,continuity,duty cycle and electromagnetic field radiation. It can be used as a test tool for environment and devices, it is a high-performance and versatile meter.

Safety Introduction

This meter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category(CAT II 600V) and pollution degree 2.

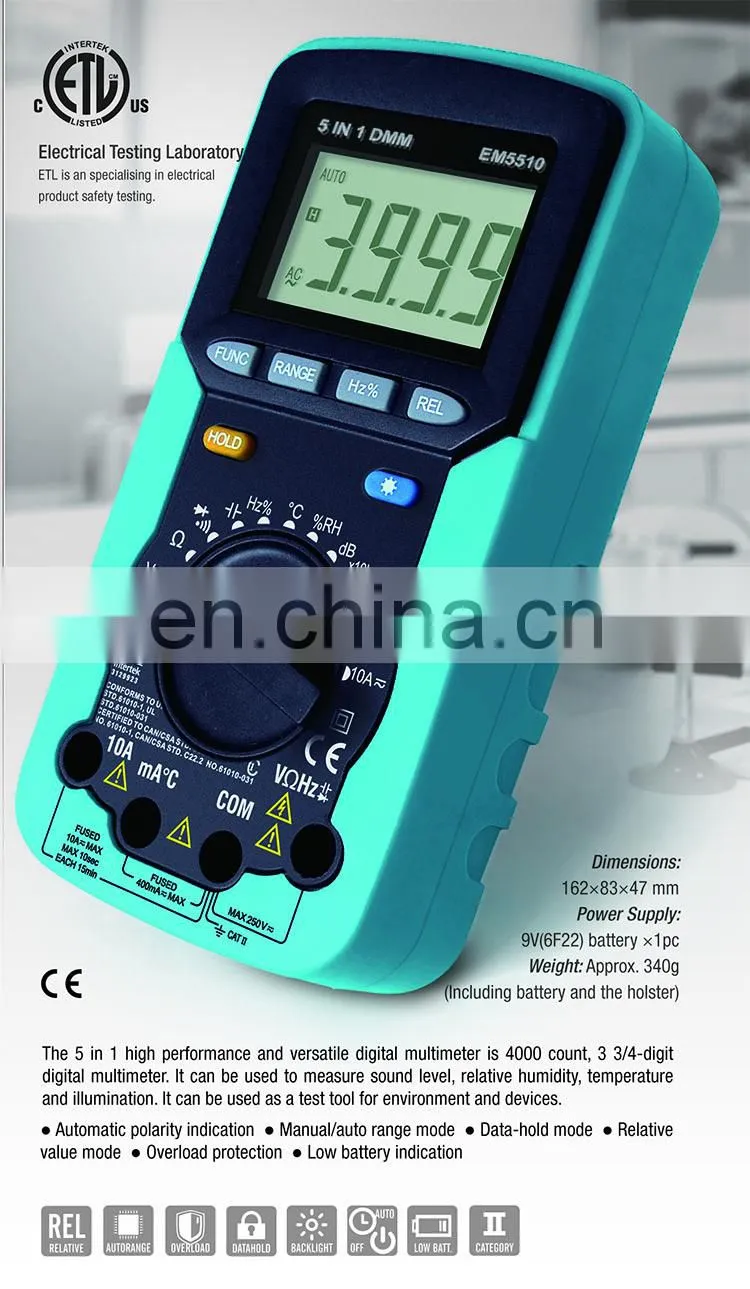

General Specification

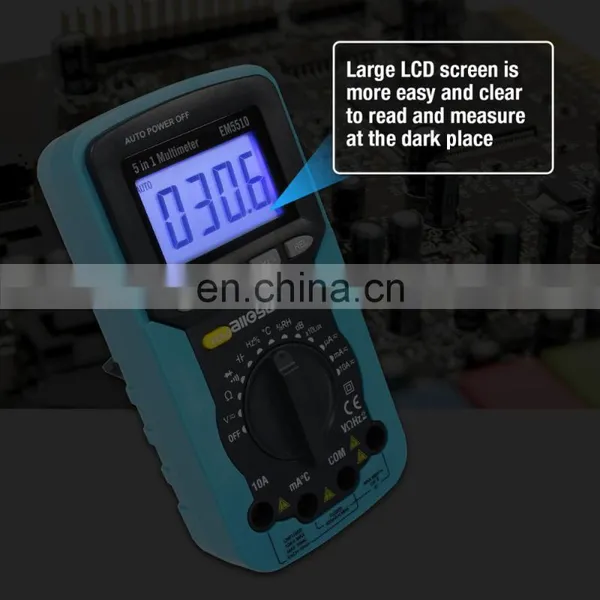

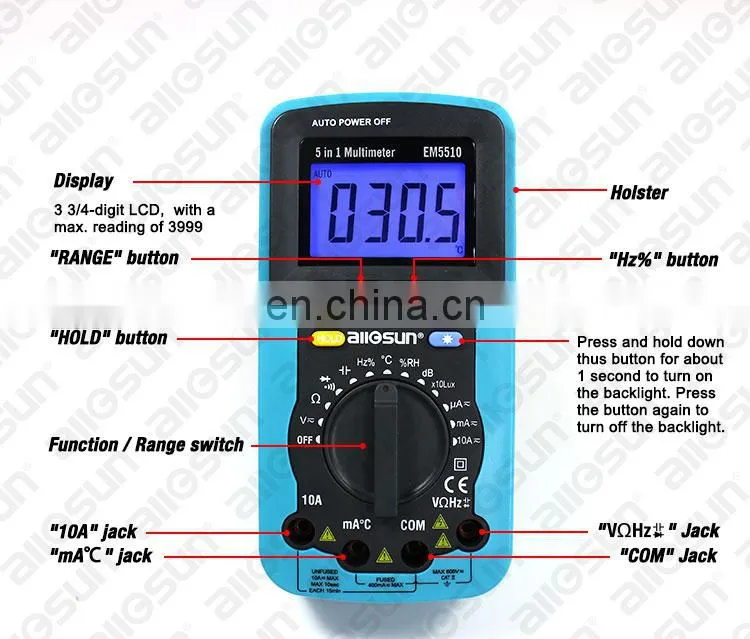

Display: 3 3/4-digit LCD,with a max,reading of 3999

Overrange Indication: "OL" shown on the LCD.

Negative Polarity Indiaction: "-" displayed automatically

Sampling Rate: 2-3 times/sec

Operating Temperature: 0-40℃,<75%RH

Storage Temperature: -30-60℃,<85%RH

Operating Altitude: 0 to 2000 meters

Power: 9V battery (6F22)

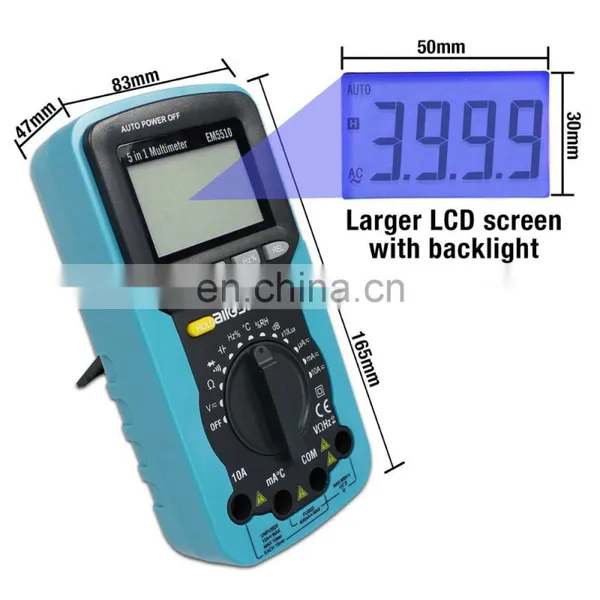

Dimensions(W×L×T): 83×162×47 mm

Weight: 310g

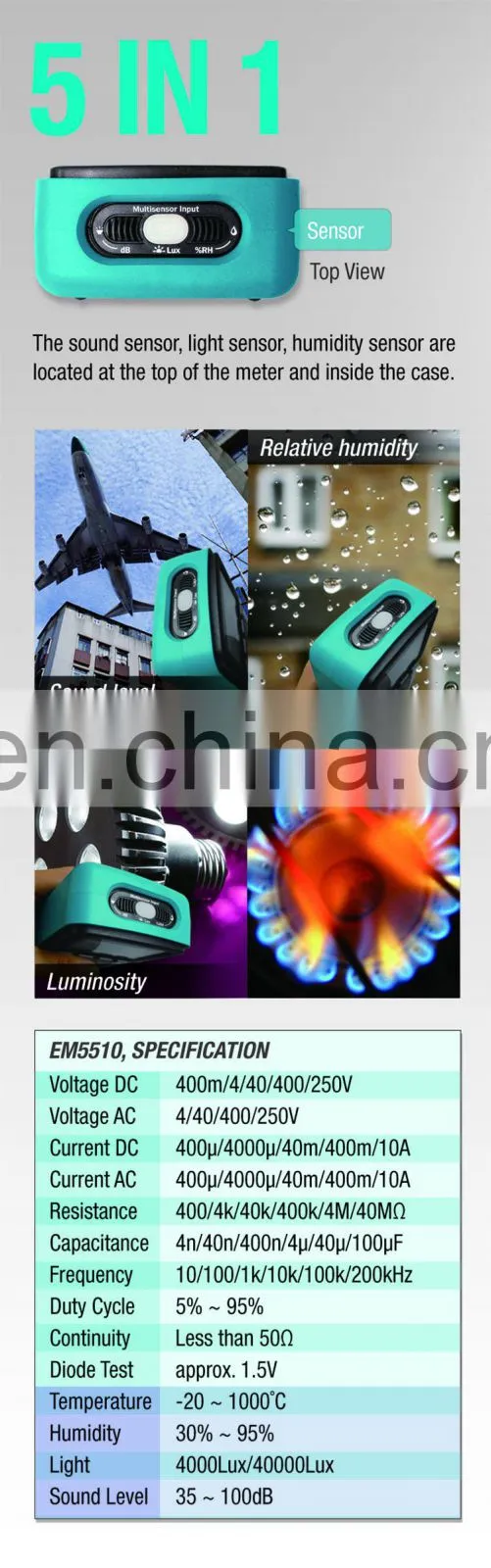

Specification

DC Voltage: 400mV/4V/40V/250V

AC Voltage: 4V/40V/250V

DC Current: 400μA/4000μA/40mA/400mA/4A/10A

AC Current: 400μA/4000μA/40mA/400mA/4A/10A

Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/200kHz

Capacitance(Relative Mode): 4nF/40nF/400nF/4μF/40μF/100μF

Temperature: -20°C to 1000°C

Duty Cycle: 5%-95%

Humidity: 30%-90%

Sound Level: 35dB-100dB

Intensity of Illumination: 400x10Lux/4000x10Lux

Diode: The approx. forward voltage drop of the diode will be displayed

Continuity: Will beep if the resistance is less than 50Ω. Will not beep if the resistance is more than 120Ω

Q: Are you factory manufacturer or trading company?

A: We are manufacturer, our factory--Eastern Intelligent Meter established on 1993, focus on test and inspection instrument. We have a better price than trading company.

Q:What is your MOQ?

A:The MOQ is 1 for products which we have in stock. If you need make customize, print your logo, please contact us for MOQ, because different product have different MOQ.

Q: How can I get your price for bulk order?
A:Please feel free to contact us on trademanager online or send us an inquiry, then we can discuss the detail.

Q: Can I print my logo on product and packing?
A: Yes,we have the neutral and our brand product in stock,if you need make customize,please contact us for the detail.

Q:What are the terms of payments you offer?

A:For small orders, we prefer pay by credit card and make deal by Trade Assurance. VISA and Mastercard are all OK.For bulk order,TT is a good choice.

Q:What is your lead time?

A:For product which we have in stock, we can send out in 1 working day. But it take time from our factory to shipping agent, the tracking number may update 3-5 days after we send out.
