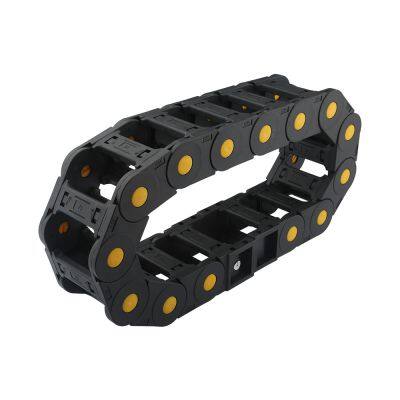

CNC steel drag chain is a cable protection device on the CNC router, which is divided into open and closed. The material of the cnc cable chain is usually made of plastic and nylon. Comparing to plastic cable drag chain, the ones made by nylon are normally tougher and more resistant to dragging and are not easy to collapse. The cable chain is 1 meter/pcs, and the length can be freely spliced. When purchasing, the model refers to the inner height and inner width of the cable chain.
Jinan Hongyang CNC machinery co., Ltd is one of global famous cnc components manufacturers. We provide CNC Router Parts, CNC Router Bits, cnc parts china and so on. Want to know more? Please contact us. We also have aluminum cnc table, cnc router table for aluminum, plastic drag chain cable carrier, plastic cable chain,etc.

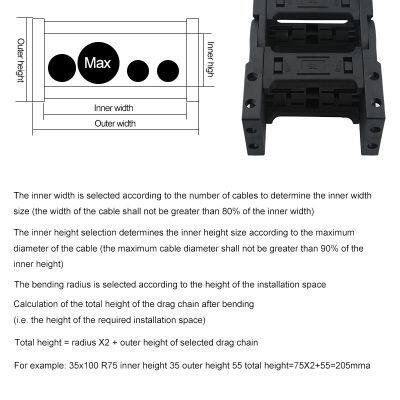

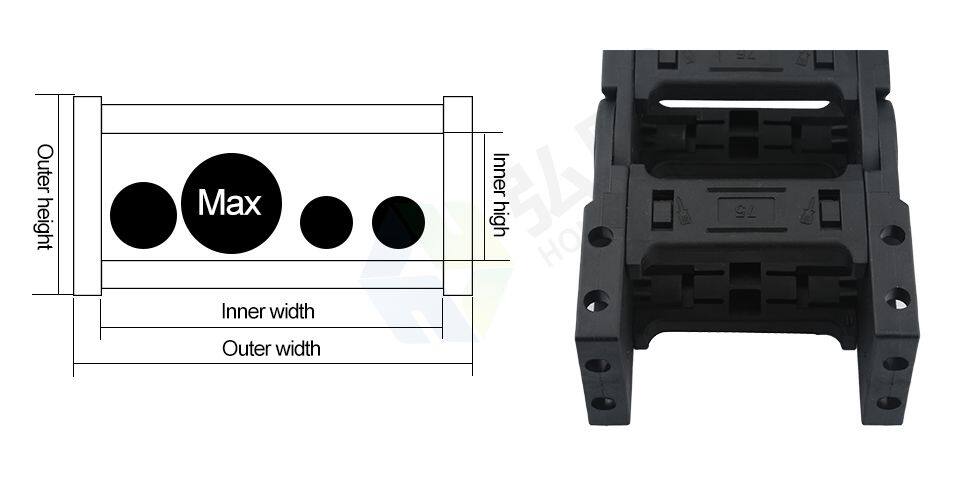

The inner width is selected according to the number of cables to determine the inner width
size (the width of the cable shall not be greater than 80% of the inner width)
The inner height selection determines the inner height size according to the maximum
diameter of the cable (the maximum cable diameter shall not be greater than 90% of the
inner height)
The bending radius is selected according to the height of the installation space
Calculation of the total height of the drag chain after bending
(i.e. the height of the required installation space)
Total height = radius X2 + outer height of selected drag chain
For example: 35x100 R75 inner height 35 outer height 55 total height=75X2+55=205mma

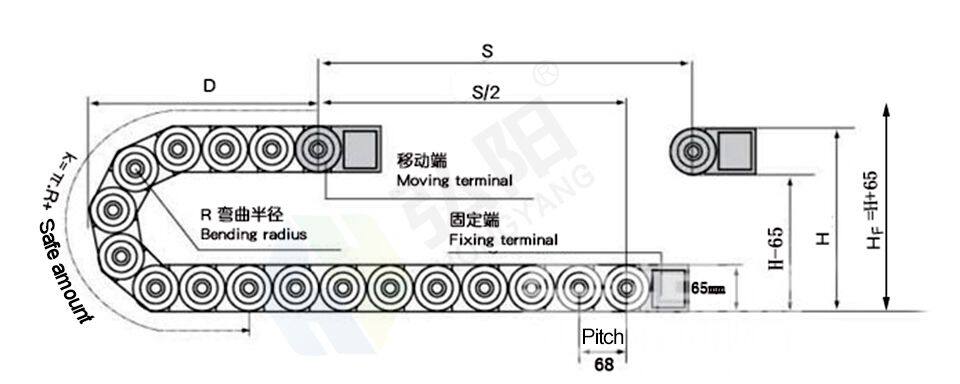

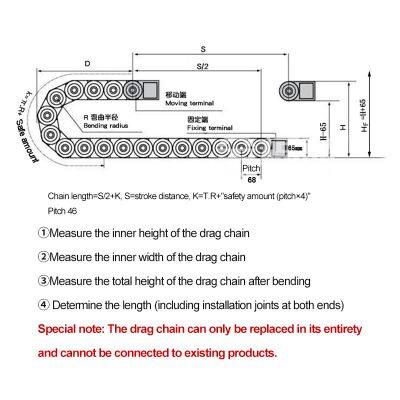

Chain length=S/2+K, S=stroke distance, K=T.R+"safety amount (pitch×4)"
Pitch 46
Product name: cable drag chain

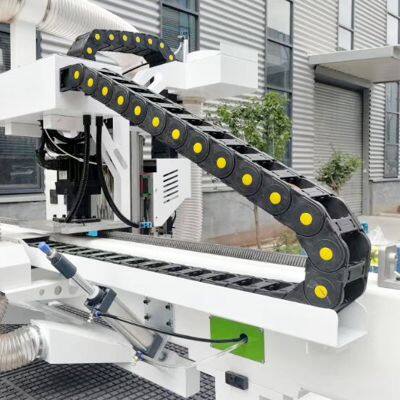

Application field: automatic engraving machine

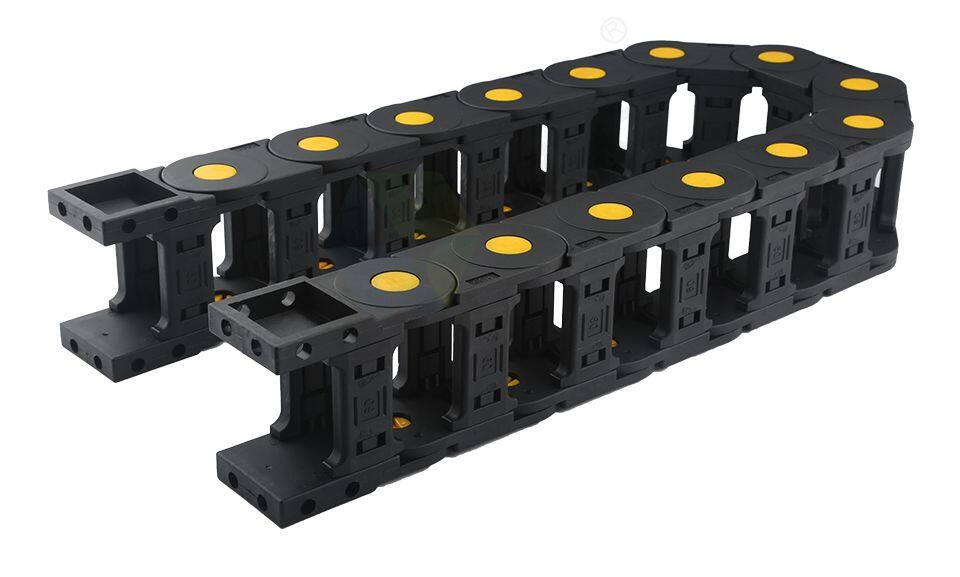

Product style: Bridge drag chain
Product material: reinforced nylon
Product advantages: wear resistance, scratch resistance, long service life
Bending radius R (mm): Bending diameter/2
New equipment selection model!
Replace the old towline!
What size of equipment?
New equipment selection
① Determine the inner height size according to the maximum diameter of the cable (the maximum cable diameter shall not be greater than 90% of the inner height)
② Determine the inner width size according to the number of cables (the width of the cable shall not be greater than 80% of the inner width)
③Select the bending radius according to the installation space
④Considering the itinerary to determine the drag chain model, you can also contact customer service to assist in the selection
Old drag chain replacement

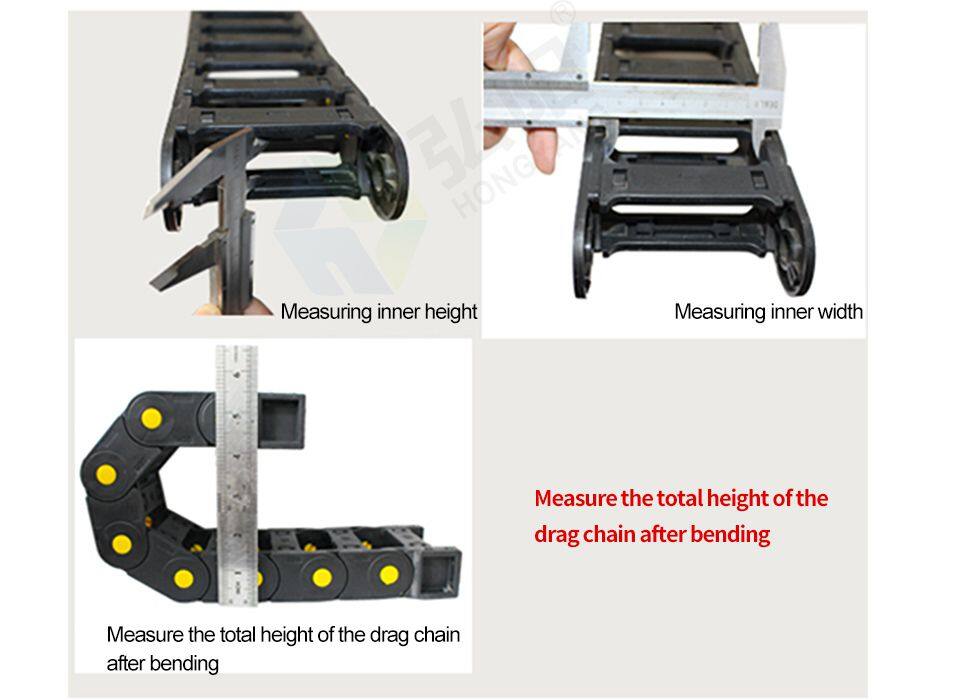

①Measure the inner height of the drag chain
②Measure the inner width of the drag chain
③Measure the total height of the drag chain after bending
④ Determine the length (including installation joints at both ends)
Special note: The drag chain can only be replaced in its entirety and cannot be connected to existing products.

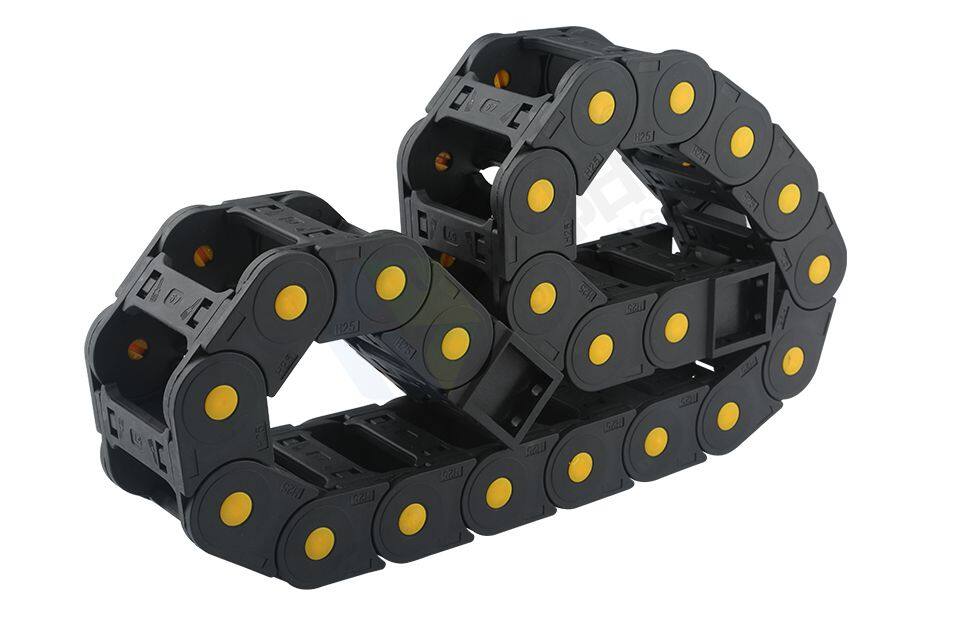

Self-adjustable length,
easy assembly and disassembly

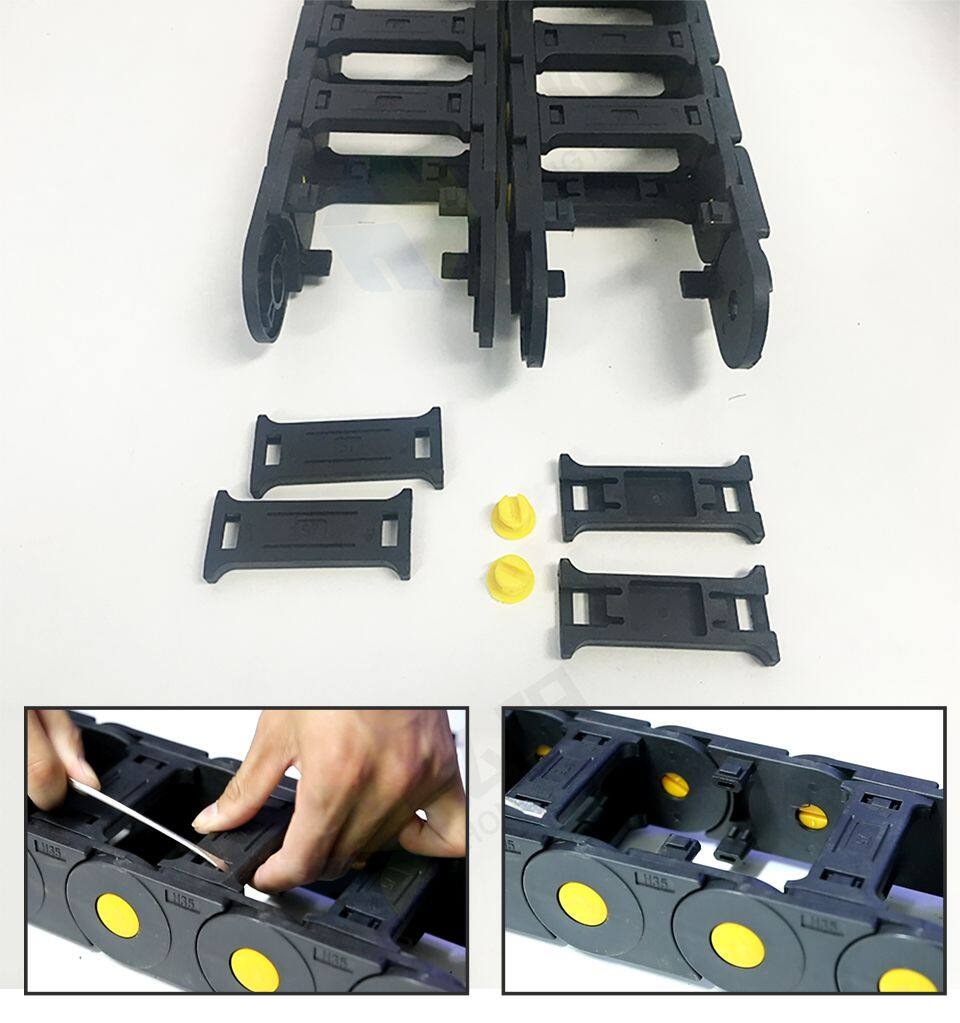

The drag chain is composed of one section, and the length can be adjusted according to your own needs, which is easy to use

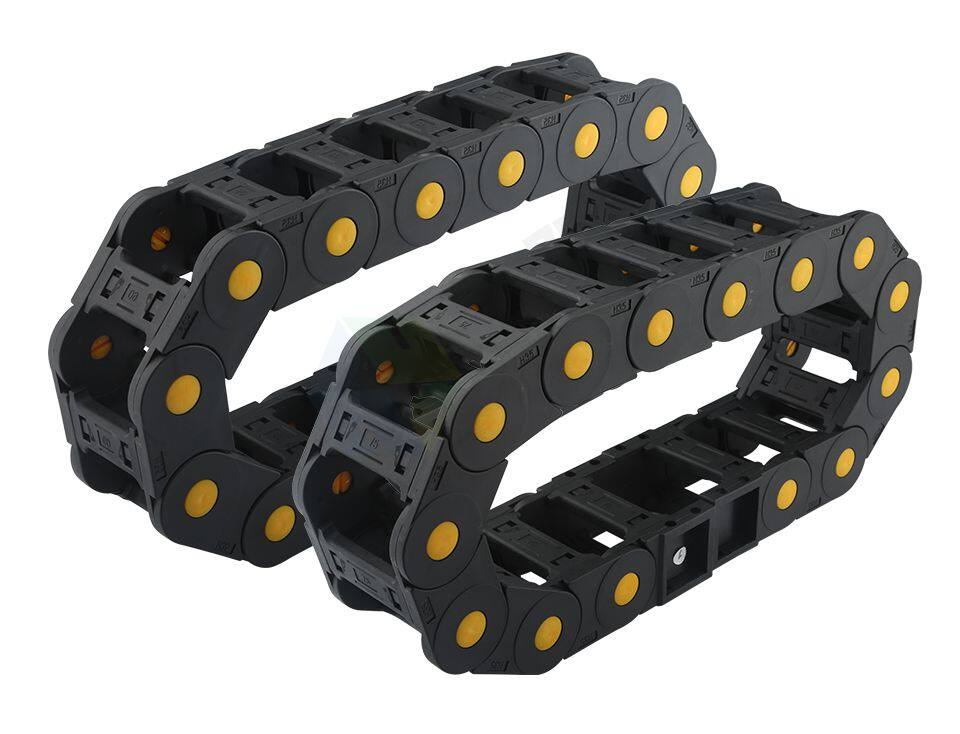

Nylon material
Using excellent raw materials, precision processing, compression and heat resistance, high mechanical strength, stable performance, and improved service life

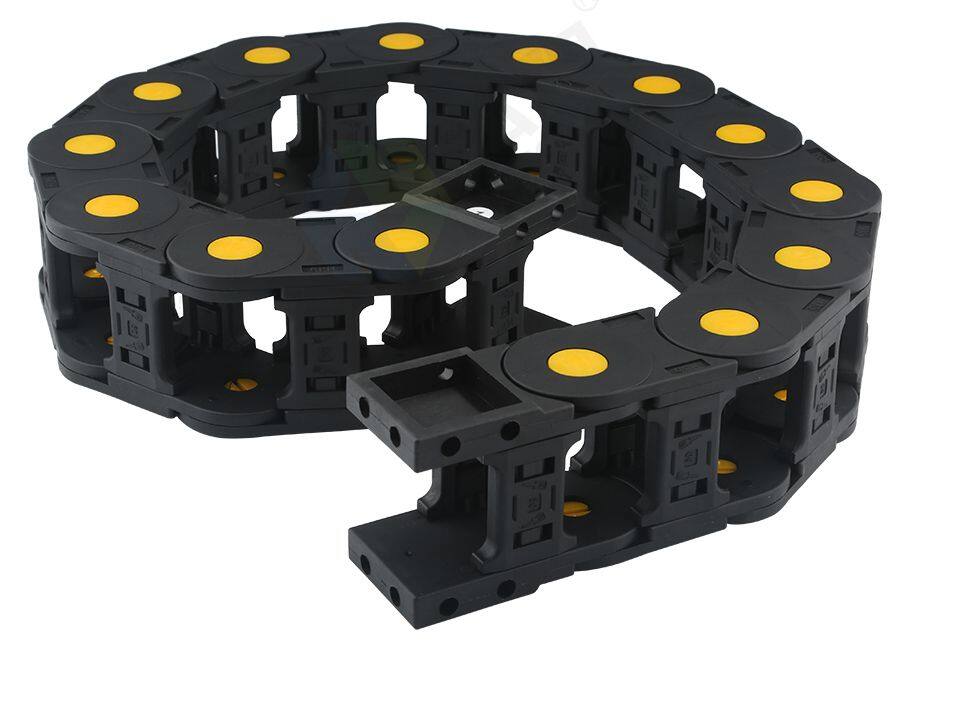

stable structure
Precision mold processing and forming, reinforced plastic drag chain, stronger and not easy to damage
Flame retardant material
The product uses flame-retardant materials, which can withstand high temperatures and can be used at ease.
