Mainly applicable to solid wood board, particle board, plywood, MDF and other
materials, cutting Sharp and smooth without burrs.
Home > Industrial Equipment & Components > Cutter & Tongs > Milling Cutter > 1/4 1/2 Handle CNC Engraving Planer Drill Bit Double-Slot Hard Alloy Straight Cutting Woodworking Milling Cutter OEM Customized
1/4 1/2 Handle CNC Engraving Planer Drill Bit Double-Slot Hard Alloy Straight Cutting Woodworking Milling Cutter OEM Customized
US$ 2.5 - 5.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Cemented Carbide
Type:
Vertical Milling Cutter
Structure:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
1/2 Handle Double-Slot Straight Tool Carbide Drill Bit CNC Cutting Milling Cutter for MDF Wood Planer Slotting OEM ODM SupportedUS$ 2 - 7MOQ: 1 Piece -
100mm Shank Left/Right Rotating Forstner Gear Drill Milling Cutter Wooden Hole Drill Hole Opener For Boring Machine End MillsUS$ 1.5 - 4MOQ: 1 Box
-
Solid Carbide End Mill 6mm Handle 3D V-Groove Cutting Milling Cutter 60 90 120 150 Degree MDF Router Bit Customizable Wood ODMUS$ 3.5MOQ: 1 Box
-
3.175 4 6mm Milling Cutter 3 Pyramid Carving Head 20-90 Degree Tip Tungsten Carbide End Mill For CNC Router Bit 3D MillingUS$ 4 - 7MOQ: 1 Piece
-
Solid Carbide 3.175/4/6mm Corn Teeth End Milling Machine CNC Circuit Board Carbon Fiber Cutting Tool With OEM SupportUS$ 1 - 7.6MOQ: 1 Piece
Material
Cemented Carbide
Type
Vertical Milling Cutter
Structure
Other
Tooth Form
Other
Tooth Space
Other
Coating
Other
Trademark
HYCNC
Origin
China
product name: |
Industrial grade double-edged straight knife |
product material: |
Tungsten steel material |
Product Specifications: |
3.175/4/6 |
Applicable materials: |
Solid wood, hardwood, particle board, MDF |
The main function: |
Slotted |
Use the machine: |
Woodworking advertising engraving machine, trimming machine |
Applicable processing materials
Product manual
Brand: hycnc

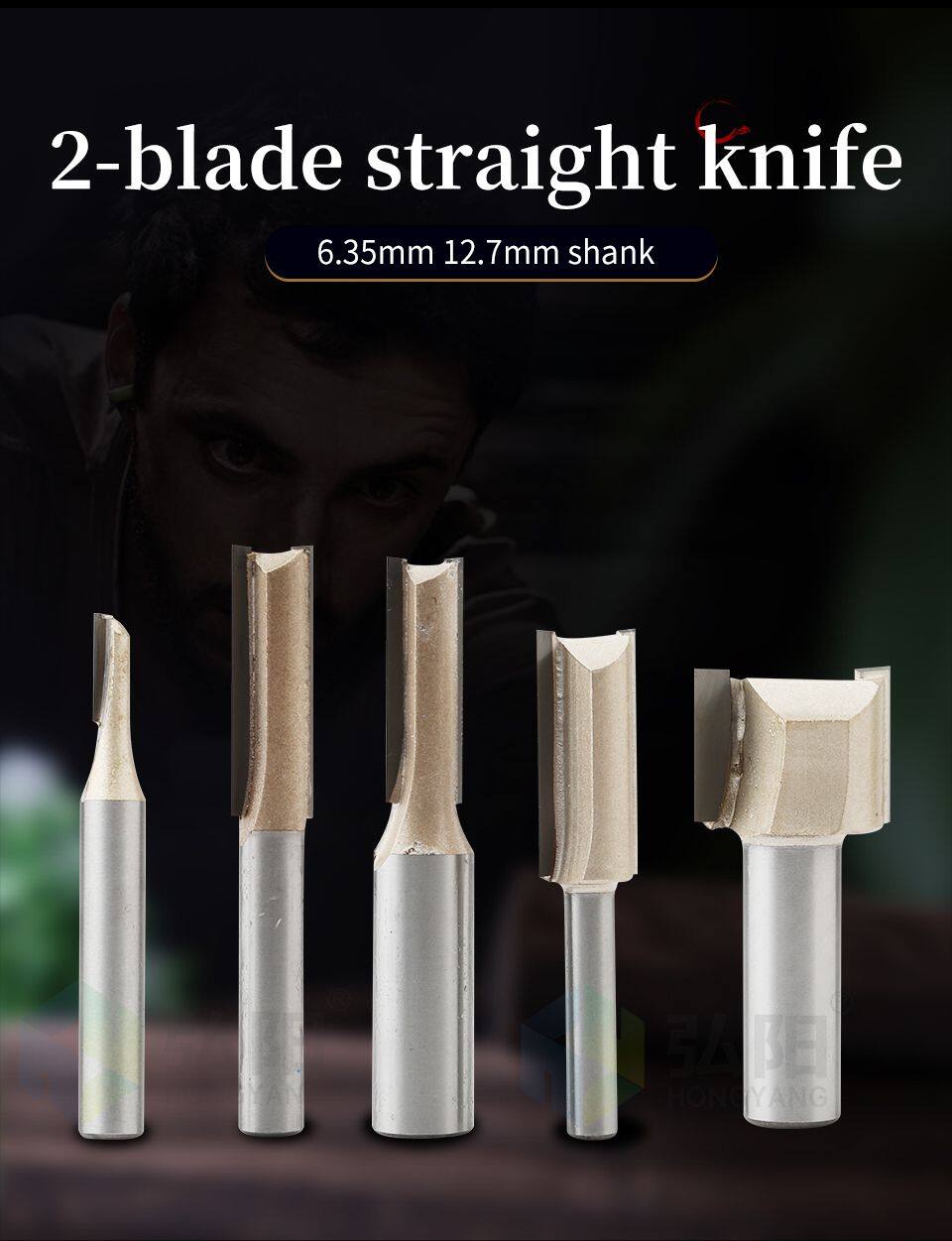

Name: Double-edged straight knife
Material: Tungsten steel blade/45# steel handle
Uses: slotting, cutting, etc.

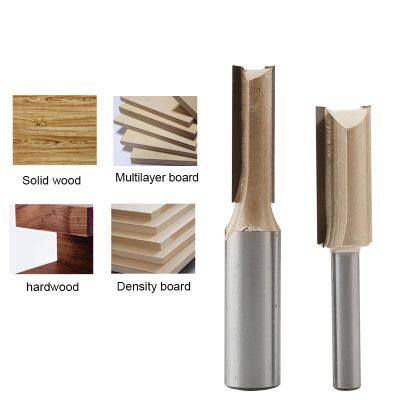

Applicable materials:Solid wood panels, hardwood, particle board, density board, ecological board, plywood and other materials

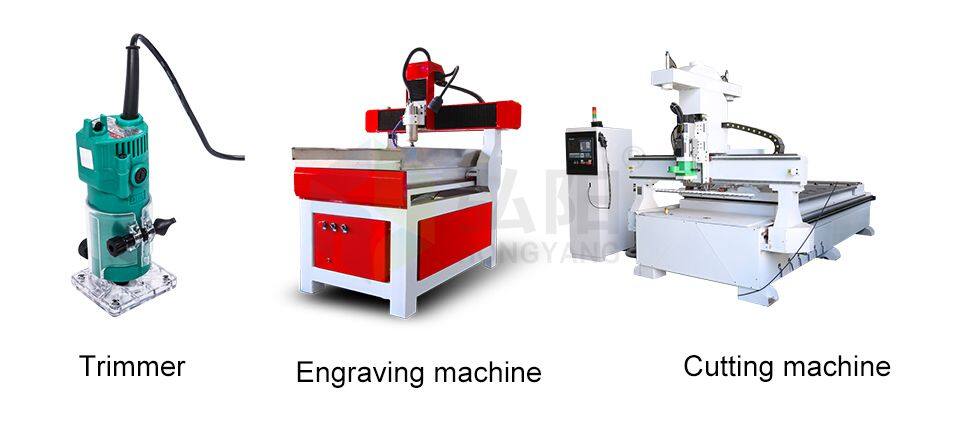

Applicable equipment:Electric wood milling machine, engraving machine, trimming machine (1/4 handle), hoisting machine, CNC, etc.
Use equipment such as computer engraving machine CNC etc.

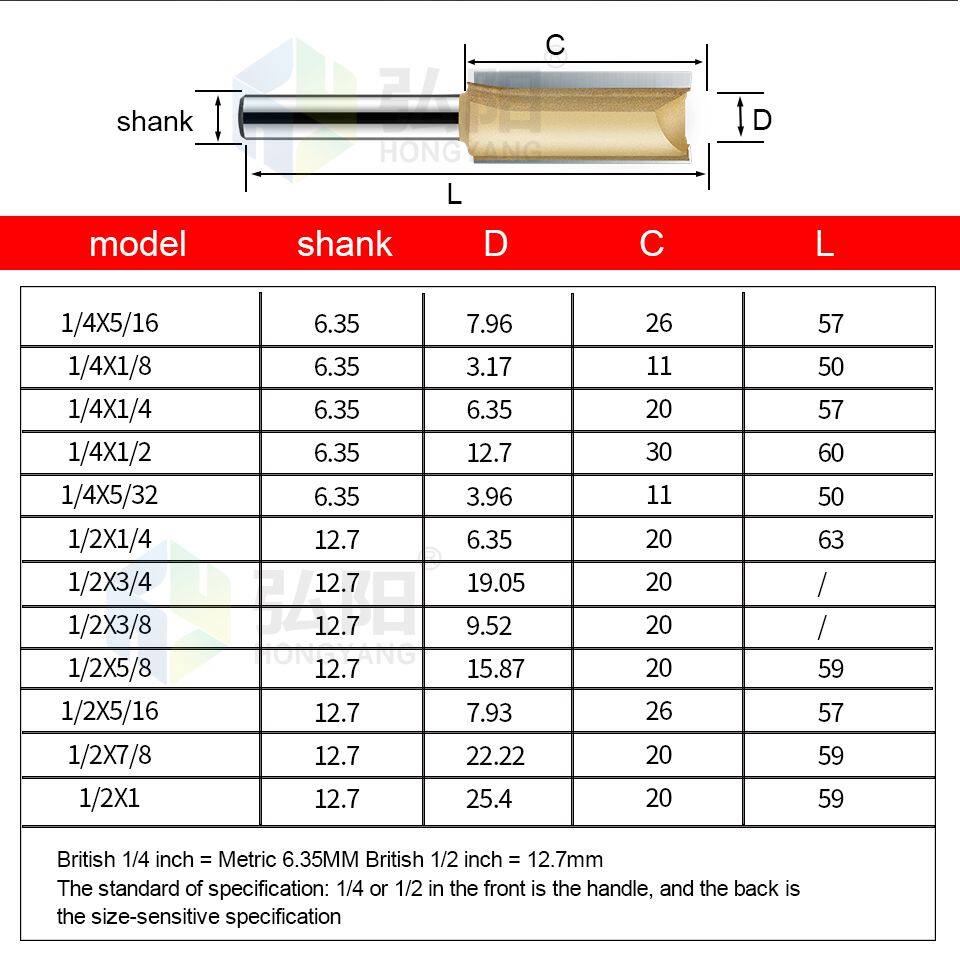

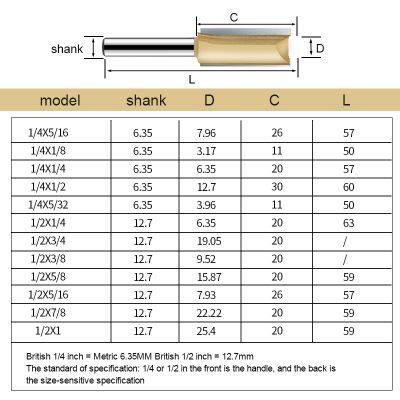

British 1/4 inch = Metric 6.35MM British 1/2 inch = 12.7mm The standard of specification: 1/4 or 1/2 in the front is the handle, and the back is the size-sensitive specification
Widely applicable
Thanks to the mirror sharpening process, the cutting is smooth
without burrs and no blackening.

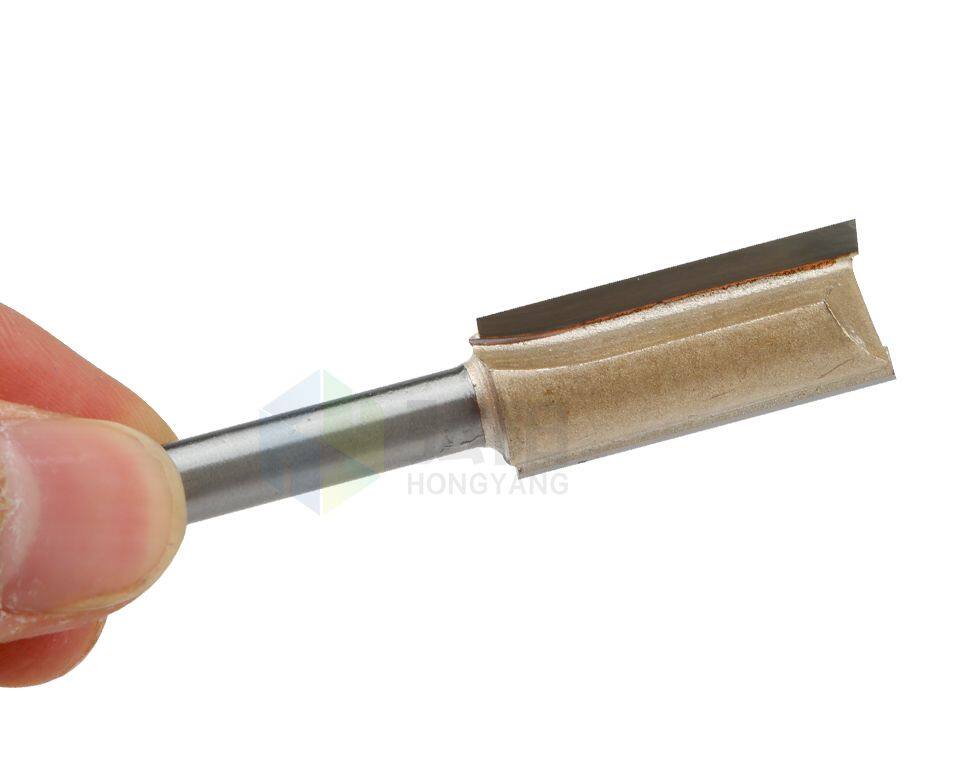

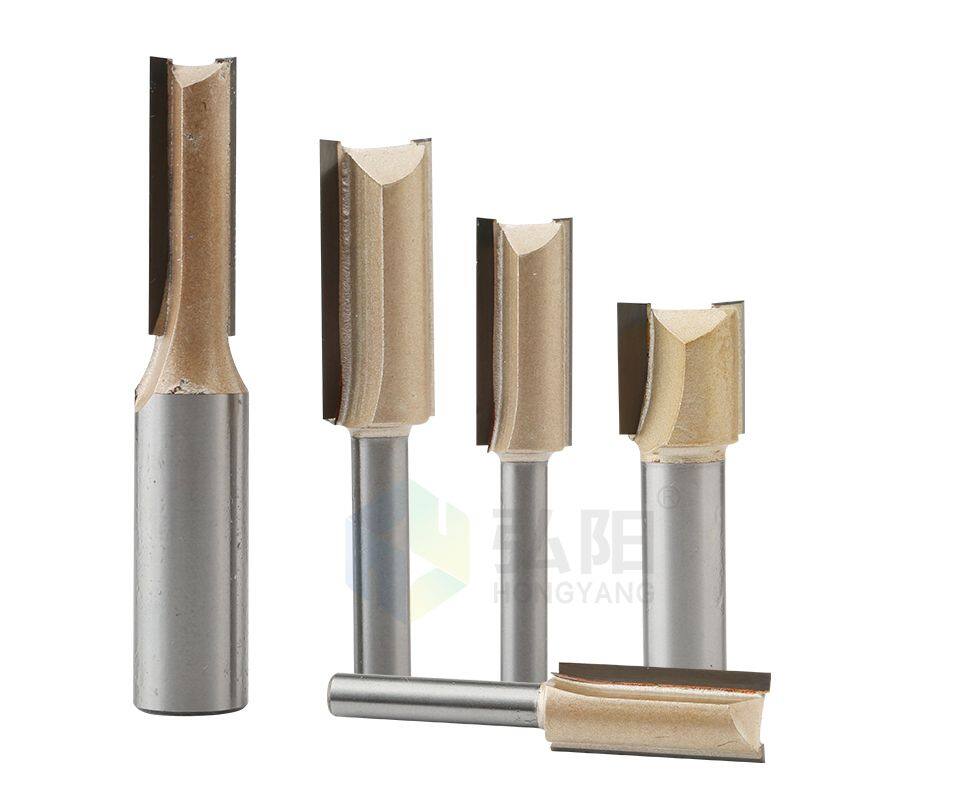

Hard tungsten steel blade
Use high-quality tungsten steel material, adopt high-tech special grinding technology, high strength High hardness, sharp and wear-resistant, not easy to break the knife

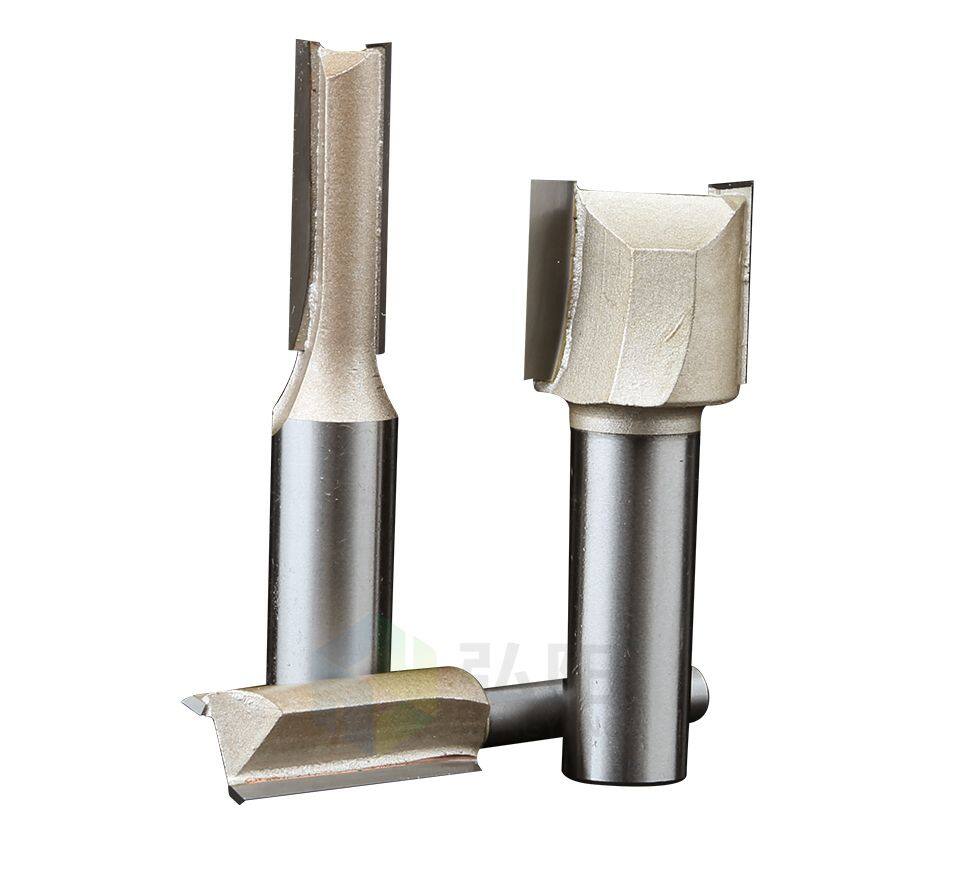

360° Whole knife finishing
Selection of high-precision equipment and precision processing
Tool selection
To achieve the purpose you require, be sure to use short-edged tools as much as possible. Too long cutting edge or too long tool body will cause vibration and deviation during machining, which will lead to tool damage and affect the quality of machining. We recommend using a tool with a larger shank diameter

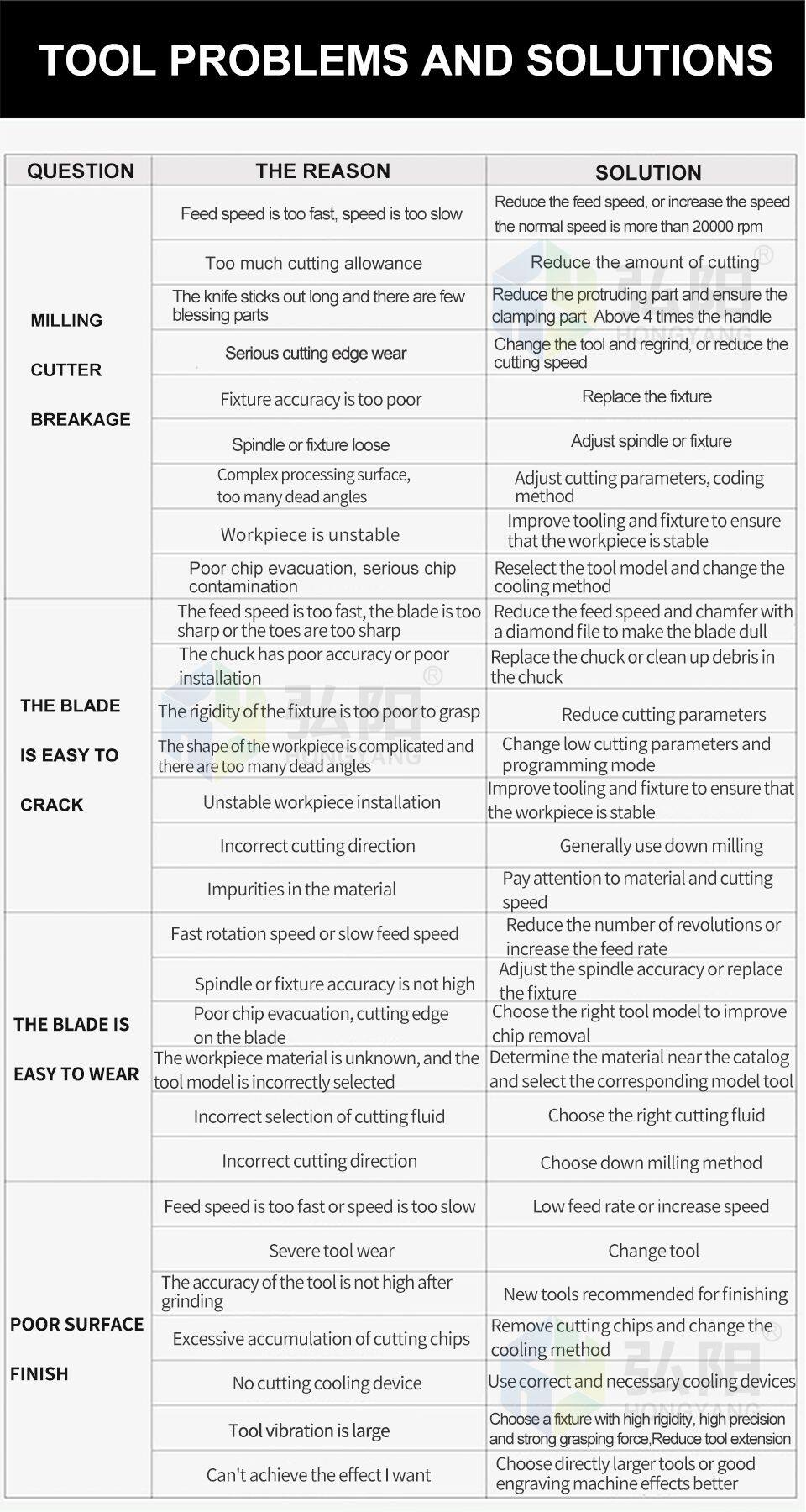

Tool operation
⑴. The woodworking milling cutter is designed for portable and desktop engraving machines and cannot be used on machines such as electric drills. ⑵. The tool can process hardwood, softwood, synthetic board and other wood to produce a smooth surface, but avoid processing metal materials such as copper, iron, and non-wood materials such as sand and stone. ⑶. It is necessary to use a suitable size jacket, because the jacket with serious wear, insufficient roundness and taper in the inner hole can not provide enough clamping force, which will cause vibration or break the tool handle and fly off. ⑷ Do not think that the new jacket must be safe and reliable. When the tool handle is found to have uneven contact marks or grooves after the tool is clamped, it indicates that there is slippage and deformation of the inner hole of the jacket. This is to replace the jacket immediately to avoid accidents. ⑸ After the tool is clamped, if the tool is found to be bounced when it is working, stop it immediately, repeat the clamping several times so that the tool shank and the jacket get sufficient contact, and then work. ⑹. The contact between the tool shank and the jacket should be good. The tool shank must be completely inserted into the jacket and tightened firmly, so as to provide sufficient clamping force for the tool, and not only a small part of it can be inserted into the jacket, otherwise it will be easy The tool handle is broken and the tool is damaged. ⑺. Use proper eye and ear protection devices during operation. ⑻ Body, clothes and other sundries should not be close to the working tool.
