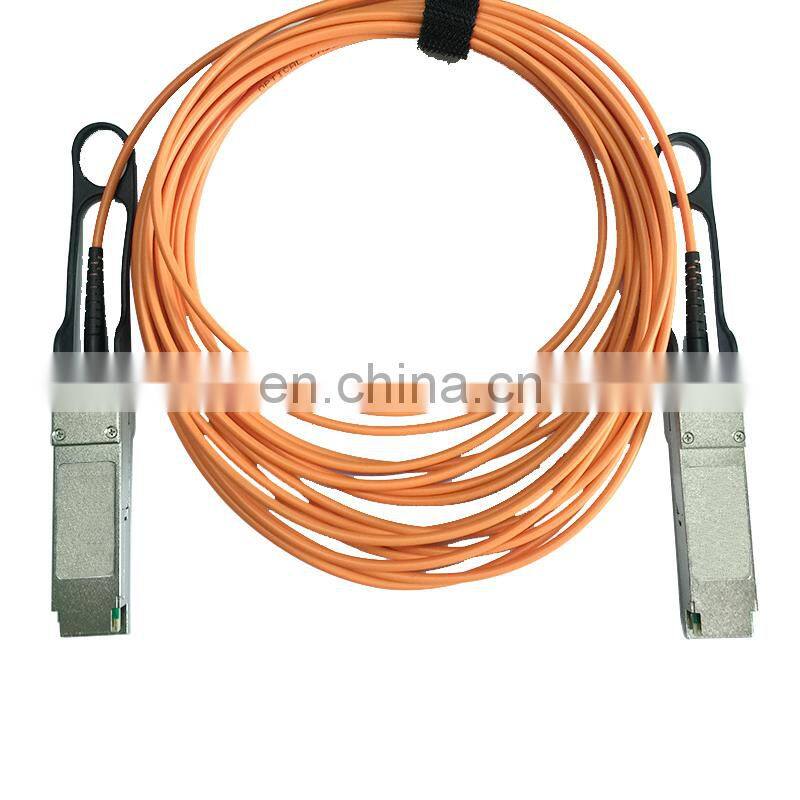

3.0M QSFP28 OM3 AOC Active Optical Cable 2M 5M 10M Customized QSFPS Fiber Cable

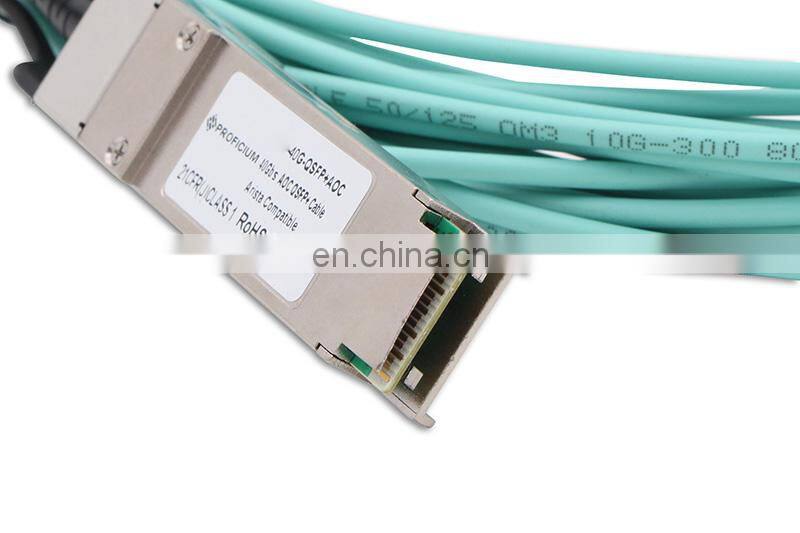

QSFP-40G-AOC 40G QSFP+ to QSFP+ Active Optical Cable

Product description

• Rollball’s QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. The Olink QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. The Olink QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.

• Features

  • Four-channel full-duplex active optical cable
  • Transmission data rate up to 11.3Gbit/s per channel
  • Reliable VCSEL array technology using multimode fiber
  • Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
  • Low power consumption <1.5W
  • 3.3V power supply voltage

    Specification

    Optical characteristics

    Unit	Values
    Operating Reach	m	10K
    Transmit
    Center wavelength (range)	nm	1260 -1355
    Side Mode Suppression Ratio (min)	dB	30
    Launched power
    – maximum	dBm	+0.5
    – minimum	dBm	-8.2     Notes1
    -   OMA	dBm	-5.2
    -   OMA-TDP (min)	dBm	-6.2
    Transmitter and dispersion penalty	dB	0       Notes4
    Average launch power of OFF transmitter (max)	dBm	-30
    Extinction ratio (min)	dB	3.5     Notes2
    RIN12 OMA (max)	dB/Hz	-128
    Optical Return Loss Tolerance (min)	dB	12
    Receiver
    Center wavelength (range)	nm	1260-1355
    Receive overload (max) in average power1	dBm	0.5
    Receive sensitivity (min) in average power1	dBm	-14.4   Notes3
    Receiver sensitivity (max) in OMA (footnote 2)	dBm	-12.6   Notes3
    Receiver Reflectance (max)	dB	-12
    Stressed receiver sensitivity (max) in OMA2	dBm	-10.3
    Vertical eye closure penalty (min)3	dB	2.2
    Stressed eye jitter (min)2	UIp-p	0.7
    Receive electrical 3dB upper cutoff frequency (max)	GHz	12.3
    Receiver power (damage, Max)	dBm	1.5

  •

Rollball is always at your services with our fiber optical products. As professional manufacturer with rich experience,  we have more than 100 different models for your choices, you are sure to stand out with Rollball advantage: competitive price , product warranty  and excellent quality. You may check the clients feedback from all over the world. We guarantee what we have showed is 100% genuine and what else you are waiting for?

Payment

1. Quality system of ISO900,CE,FCC,ROHS registration
2. Manufacture system
3. R&D system
4. Purchasing system
5. Prompt delivery and remarkable services
6. Reasonable prices
7. Accept orders according to customer's demands
8. Rich experience of OEM & ODM co-operation
9. Shipment,payment and delivery

We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you within 12hours !
