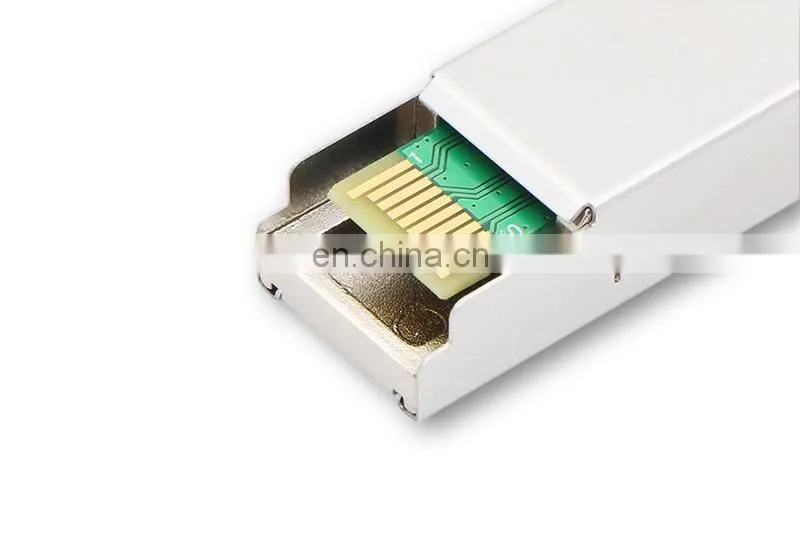

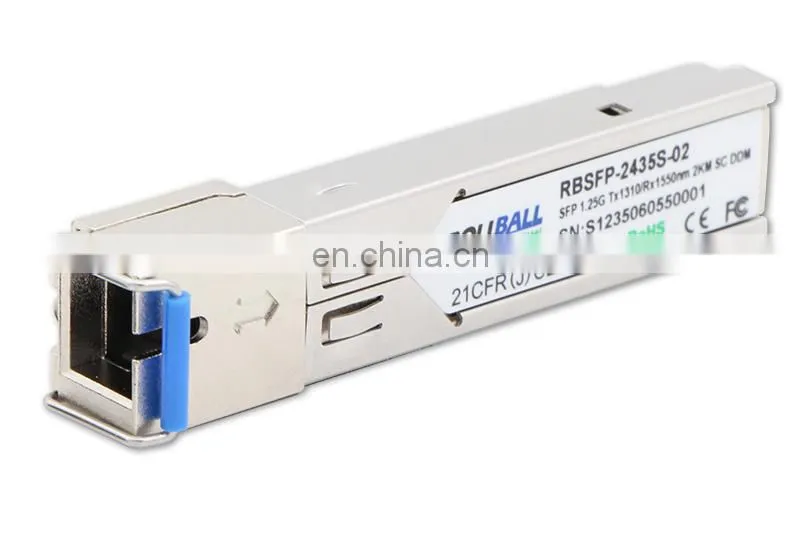

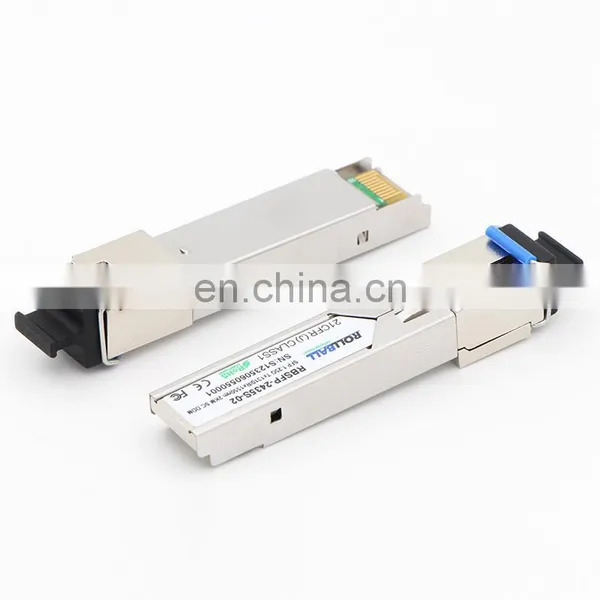

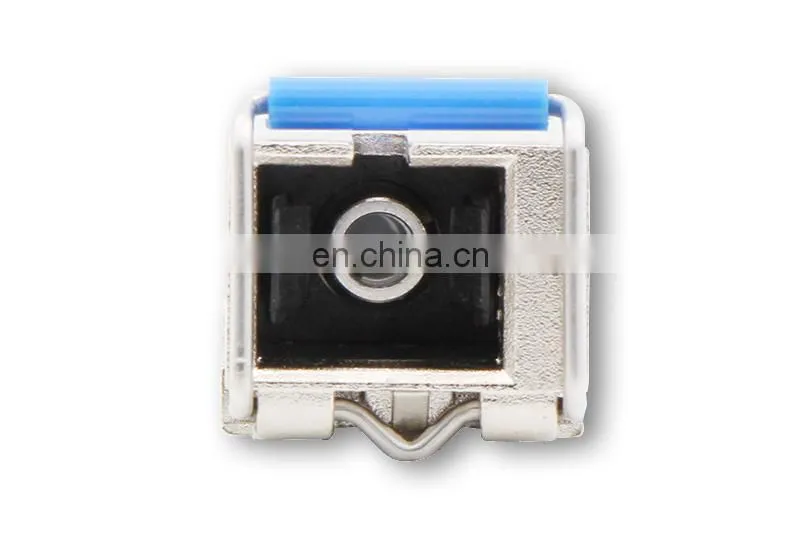

1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module

1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module thumbnail-1
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module thumbnail-2
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module thumbnail-3
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module thumbnail-4
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module thumbnail-5
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module photo-1
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module photo-2
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module photo-3
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module photo-4
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM Module photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shenzhen Rollball Comm-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

1.25G BIDI SFP 2km 1310nm/1550nm Simplex SC DOM Module





1.Description

1).The sfp bidi single fiber are high performance, cost effective modules supporting data-rate of 1.25gbps and up to 2km transmission distance with SMF

2).The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

3).The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km simplex SC DOM Module



1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km simplex SC DOM Module1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km simplex SC DOM Module



 2.Applications

1).SDH STM-1, S-1.1,L-1.1, L-1.2

2).SONET OC-3 IR1,LR1,LR2

3).Other optical links



3.Features

1).Up to 1.25Gbps data-rate

2).Transmission distance up to 2km

3).1310/1550nm or 1310/1490nm is optional

4).Compliant with SFP MSA and SFF-8472 with simplex LC/SC receptacle

5).Digital Diagnostic Monitoring:

6).Internal Calibrationor External Calibration

7).Compatible with RoHS

8).+3.3V single power supply

9).Operating case temperature:

10).Standard : 0 to +70°C





4.Product list

Part Number Data Rate Wavelenth Distance Package Temp. Source
BIDI SFP (1.25G LC Interface) without DDMI
RBSFP-2435L-02 1.25G 1310/1550 2KM SFP 0~70 FP+PIN
RBSFP-2453L-02 1.25G 1550/1310 2KM SFP 0~70 FP+PIN
RBSFP-2435L-L2 1.25G 1310/1550 0-20KM SFP 0~70 FP+PIN
RBSFP-2453L-L2 1.25G 1550/1310 0-20KM SFP 0~70 DFB+PIN
RBSFP-2434L-L2 1.25G 1310/1490 0-20KM SFP 0~70 FP+PIN
RBSFP-2443L-L2 1.25G 1490/1310 0-20KM SFP 0~70 DFB+PIN
RBSFP-2435L-L4 1.25G 1310/1550 40KM SFP 0~70 DFB+PIN
RBSFP-2453L-L4 1.25G 1550/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2434L-L4 1.25G 1310/1490 40KM SFP 0~70 DFB+PIN
RBSFP-2443L-L4 1.25G 1490/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2435-L6 1.25G 1310/1550 60KM SFP 0~70 DFB+PIN
RBSFP-2453-L6 1.25G 1550/1310 60KM SFP 0~70 DFB+APD
RBSFP-2445L-L6 1.25G 1490/1550 60KM SFP 0~70 DFB+PIN
RBSFP-2454L-L6 1.25G 1550/1490 60KM SFP 0~70 DFB+PIN
RBSFP-2445L-L8 1.25G 1490/1550 80KM SFP 0~70 DFB+PIN
RBSFP-2454L-L8 1.25G 1550/1490 80KM SFP 0~70 DFB+PIN
RBSFP-4835L-L2 2.5G 1310/1550 20KM SFP 0~70 DFB+PIN
RBSFP-4853L-L2 2.5G 1310/1550 20KM SFP 0~70 DFB+PIN
BIDI SFP (1.25G LC Interface) with DDMI
RBSFP-2435L-02D 1.25G 1310/1550 2KM SFP 0~70 FP+PIN
RBSFP-2453L-02D 1.25G 1550/1310 2KM SFP 0~70 FP+PIN
RBSFP-2435L-L2D 1.25G 1310/1550 20KM SFP 0~70 FP+PIN
RBSFP-2453L-L2D 1.25G 1550/1310 20KM SFP 0~70 DFB+PIN
RBSFP-2434L-L2D 1.25G 1310/1490 20KM SFP 0~70 FP+PIN
RBSFP-2443L-L2D 1.25G 1490/1310 20KM SFP 0~70 DFB+PIN
RBSFP-2435L-L4D 1.25G 1310/1550 40KM SFP 0~70 DFB+PIN
RBSFP-2453L-L4D 1.25G 1550/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2434L-L4D 1.25G 1310/1490 40KM SFP 0~70 DFB+PIN
RBSFP-2443L-L4D 1.25G 1490/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2435L-L6D 1.25G 1310/1550 60KM SFP 0~70 DFB+PIN
RBSFP-2453L-L6D 1.25G 1550/1310 60KM SFP 0~70 DFB+APD
RBSFP-2445L-L6D 1.25G 1490/1550 60KM SFP 0~70 DFB+PIN
RBSFP-2454L-L6D 1.25G 1550/1490 60KM SFP 0~70 DFB+PIN
RBSFP-2445L-L8D 1.25G 1490/1550 80KM SFP 0~70 DFB+PIN
RBSFP-2454L-L8D 1.25G 1550/1490 80KM SFP 0~70 DFB+PIN

BIDI SFP (1.25G SC Interface) without DDMI
RBSFP-2435S-02 1.25G 1310/1550 2KM SFP 0~70 FP+PIN
RBSFP-2453S-02 1.25G 1550/1310 2KM SFP 0~70 FP+PIN
RBSFP-2435S-L2 1.25G 1310/1550 20KM SFP 0~70 FP+PIN
RBSFP-2453S-L2 1.25G 1550/1310 20KM SFP 0~70 DFB+PIN
RBSFP-2434S-L2 1.25G 1310/1490 20KM SFP 0~70 FP+PIN
RBSFP-2443S-L2 1.25G 1490/1310 20KM SFP 0~70 DFB+PIN
RBSFP-2435S-L4 1.25G 1310/1550 40KM SFP 0~70 DFB+PIN
RBSFP-2453S-L4 1.25G 1550/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2434S-L4 1.25G 1310/1490 40KM SFP 0~70 DFB+PIN
RBSFP-2443S-L4 1.25G 1490/1310 40KM SFP 0~70 DFB+PIN
