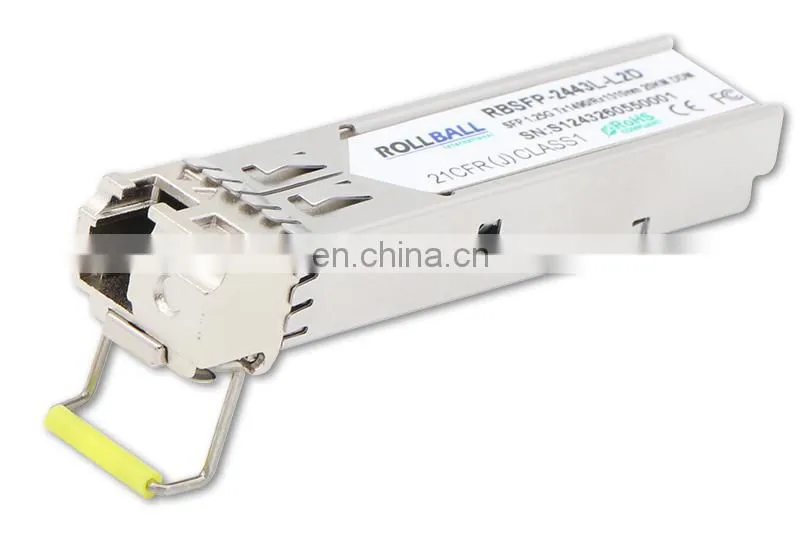

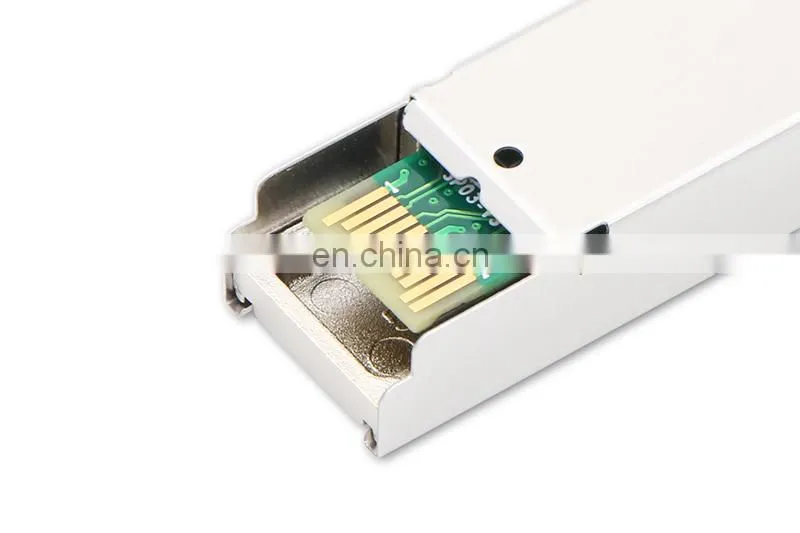

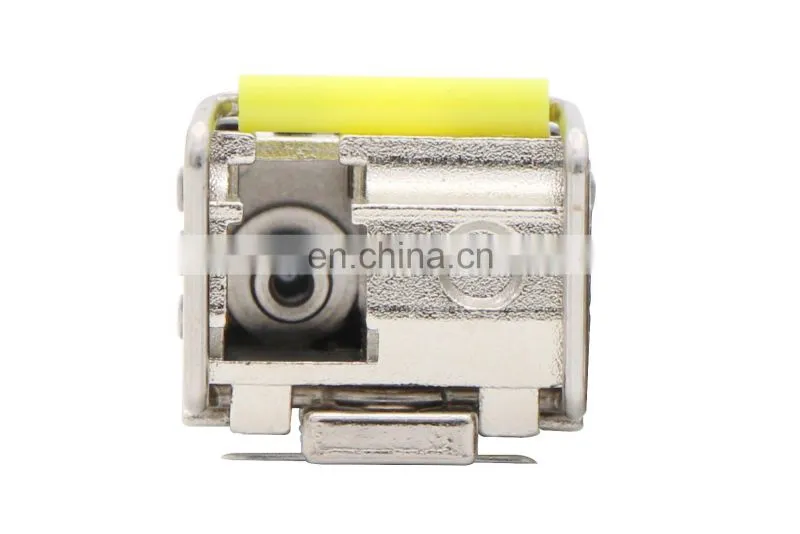

bidi sfp 1310/1490 LC/SC DOM 1.25G Transceiver Module





1.Description

1).The sfp bidi single fiber are high performance, cost effective modules supporting data-rate of 1.25gbps and up to 20km transmission distance with SMF

2).The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

3).The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.



 2.Applications

1).SDH STM-1, S-1.1,L-1.1, L-1.2

2).SONET OC-3 IR1,LR1,LR2

3).Other optical links



3.Features

1).Up to 1.25Gbps data-rate

2).Transmission distance up to 20km

3).1310/1550nm or 1310/1490nm is optional

4).Compliant with SFP MSA and SFF-8472 with simplex LC/SC receptacle

5).Digital Diagnostic Monitoring:

6).Internal Calibrationor External Calibration

7).Compatible with RoHS

8).+3.3V single power supply

9).Operating case temperature:

10).Standard : 0 to +70°C



bidi sfp 1310/1490 LC/SC DOM 1.25G Transceiver Modulebidi sfp 1310/1490 LC/SC DOM 1.25G Transceiver Modulebidi sfp 1310/1490 LC/SC DOM 1.25G Transceiver Module



4.Product list

Part Number Data Rate Wavelenth Distance Package Temp. Source
BIDI SFP (155M/1.25G LC Interface) without DDMI
RBSFP-0335L-L2 155M 1310/1550 0-20km SFP 0~70 FP+PIN
RBSFP-0353L-L2 155M 1550/1310 0-20km SFP 0~70 FP+PIN
RBSFP-0334L-L2 155M 1310/1490 0-20km SFP 0~70 FP+PIN
RBSFP-0343L-L2 155M 1490/1310 0-20km SFP 0~70 DFB+PIN
RBSFP-0335L-L4 155M 1310/1550 40KM SFP 0~70 FP+PIN
RBSFP-0353L-L4 155M 1550/1310 40KM SFP 0~70 DFB+PIN
RBSFP-0334L-L4 155M 1310/1490 40KM SFP 0~70 FP+PIN
RBSFP-0343L-L4 155M 1490/1310 40KM SFP 0~70 DFB+PIN
RBSFP-0335L-L6 155M 1310/1550 60KM SFP 0~70 DFB+PIN
RBSFP-0353L-L6 155M 1550/1310 60KM SFP 0~70 DFB+PIN
RBSFP-0334L-L6 155M 1310/1490 60KM SFP 0~70 DFB+PIN
RBSFP-0343L-L6 155M 1490/1310 60KM SFP 0~70 DFB+PIN
RBSFP-0335L-L8 155M 1310/1550 80KM SFP 0~70 DFB+PIN
RBSFP-0353L-L8 155M 1550/1310 80KM SFP 0~70 DFB+PIN
RBSFP-2435L-02 1.25G 1310/1550 2KM SFP 0~70 FP+PIN
RBSFP-2453L-02 1.25G 1550/1310 2KM SFP 0~70 FP+PIN
RBSFP-2435L-L2 1.25G 1310/1550 0-20KM SFP 0~70 FP+PIN
RBSFP-2453L-L2 1.25G 1550/1310 0-20KM SFP 0~70 DFB+PIN
RBSFP-2434L-L2 1.25G 1310/1490 0-20KM SFP 0~70 FP+PIN
RBSFP-2443L-L2 1.25G 1490/1310 0-20KM SFP 0~70 DFB+PIN
RBSFP-2435L-L4 1.25G 1310/1550 40KM SFP 0~70 DFB+PIN
RBSFP-2453L-L4 1.25G 1550/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2434L-L4 1.25G 1310/1490 40KM SFP 0~70 DFB+PIN
RBSFP-2443L-L4 1.25G 1490/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2435-L6 1.25G 1310/1550 60KM SFP 0~70 DFB+PIN
RBSFP-2453-L6 1.25G 1550/1310 60KM SFP 0~70 DFB+APD
RBSFP-2445L-L6 1.25G 1490/1550 60KM SFP 0~70 DFB+PIN
RBSFP-2454L-L6 1.25G 1550/1490 60KM SFP 0~70 DFB+PIN
RBSFP-2445L-L8 1.25G 1490/1550 80KM SFP 0~70 DFB+PIN
RBSFP-2454L-L8 1.25G 1550/1490 80KM SFP 0~70 DFB+PIN
RBSFP-4835L-L2 2.5G 1310/1550 20KM SFP 0~70 DFB+PIN
RBSFP-4853L-L2 2.5G 1310/1550 20KM SFP 0~70 DFB+PIN
BIDI SFP (155M/1.25G LC Interface) with DDMI
RBSFP-0335L-L2D 155M 1310/1550 0-20km SFP 0~70 FP+PIN
RBSFP-0353L-L2D 155M 1550/1310 0-20km SFP 0~70 FP+PIN
RBSFP-0334L-L2D 155M 1310/1490 0-20km SFP 0~70 FP+PIN
RBSFP-0343L-L2D 155M 1490/1310 0-20km SFP 0~70 DFB+PIN
RBSFP-0335L-L4D 155M 1310/1550 40KM SFP 0~70 FP+PIN
RBSFP-0353L-L4D 155M 1550/1310 40KM SFP 0~70 DFB+PIN
RBSFP-0334L-L4D 155M 1310/1490 40KM SFP 0~70 FP+PIN
RBSFP-0343L-L4D 155M 1490/1310 40KM SFP 0~70 DFB+PIN
RBSFP-0335L-L6D 155M 1310/1550 60KM SFP 0~70 DFB+PIN
RBSFP-0353L-L6D 155M 1550/1310 60KM SFP 0~70 DFB+PIN
RBSFP-0334L-L6D 155M 1310/1490 60KM SFP 0~70 DFB+PIN
RBSFP-0343L-L6D 155M 1490/1310 60KM SFP 0~70 DFB+PIN
RBSFP-0335L-L8D 155M 1310/1550 80KM SFP 0~70 DFB+PIN
RBSFP-0353L-L8D 155M 1550/1310 80KM SFP 0~70 DFB+PIN
RBSFP-2435L-02D 1.25G 1310/1550 2KM SFP 0~70 FP+PIN
RBSFP-2453L-02D 1.25G 1550/1310 2KM SFP 0~70 FP+PIN
RBSFP-2435L-L2D 1.25G 1310/1550 20KM SFP 0~70 FP+PIN
RBSFP-2453L-L2D 1.25G 1550/1310 20KM SFP 0~70 DFB+PIN
RBSFP-2434L-L2D 1.25G 1310/1490 20KM SFP 0~70 FP+PIN
RBSFP-2443L-L2D 1.25G 1490/1310 20KM SFP 0~70 DFB+PIN
RBSFP-2435L-L4D 1.25G 1310/1550 40KM SFP 0~70 DFB+PIN
RBSFP-2453L-L4D 1.25G 1550/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2434L-L4D 1.25G 1310/1490 40KM SFP 0~70 DFB+PIN
RBSFP-2443L-L4D 1.25G 1490/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2435L-L6D 1.25G 1310/1550 60KM SFP 0~70 DFB+PIN
RBSFP-2453L-L6D 1.25G 1550/1310 60KM SFP 0~70 DFB+APD
RBSFP-2445L-L6D 1.25G 1490/1550 60KM SFP 0~70 DFB+PIN
RBSFP-2454L-L6D 1.25G 1550/1490 60KM SFP 0~70 DFB+PIN
RBSFP-2445L-L8D 1.25G 1490/1550 80KM SFP 0~70 DFB+PIN
RBSFP-2454L-L8D 1.25G 1550/1490 80KM SFP 0~70 DFB+PIN

BIDI SFP (155M/1.25G SC Interface) without DDMI
RBSFP-0335S-L2 155M 1310/1550 0-20km SFP 0~70 FP+PIN
RBSFP-0353S-L2 155M 1550/1310 0-20km SFP 0~70 FP+PIN
RBSFP-0334S-L2 155M 1310/1490 0-20km SFP 0~70 FP+PIN
RBSFP-0343S-L2 155M 1490/1310 0-20km SFP 0~70 DFB+PIN
RBSFP-0335S-L4 155M 1310/1550 40KM SFP 0~70 FP+PIN
RBSFP-0353S-L4 155M 1550/1310 40KM SFP 0~70 DFB+PIN
RBSFP-0334S-L4 155M 1310/1490 40KM SFP 0~70 FP+PIN
RBSFP-0343S-L4 155M 1490/1310 40KM SFP 0~70 DFB+PIN
RBSFP-0335S-L6 155M 1310/1550 60KM SFP 0~70 DFB+PIN
RBSFP-0353S-L6 155M 1550/1310 60KM SFP 0~70 DFB+PIN
RBSFP-0334S-L6 155M 1310/1490 60KM SFP 0~70 DFB+PIN
RBSFP-0343S-L6 155M 1490/1310 60KM SFP 0~70 DFB+PIN
RBSFP-2435S-02 1.25G 1310/1550 2KM SFP 0~70 FP+PIN
RBSFP-2453S-02 1.25G 1550/1310 2KM SFP 0~70 FP+PIN
RBSFP-2435S-L2 1.25G 1310/1550 20KM SFP 0~70 FP+PIN
RBSFP-2453S-L2 1.25G 1550/1310 20KM SFP 0~70 DFB+PIN
RBSFP-2434S-L2 1.25G 1310/1490 20KM SFP 0~70 FP+PIN
RBSFP-2443S-L2 1.25G 1490/1310 20KM SFP 0~70 DFB+PIN
RBSFP-2435S-L4 1.25G 1310/1550 40KM SFP 0~70 DFB+PIN
RBSFP-2453S-L4 1.25G 1550/1310 40KM SFP 0~70 DFB+PIN
RBSFP-2434S-L4 1.25G 1310/1490 40KM SFP 0~70 DFB+PIN
RBSFP-2443S-L4 1.25G 1490/1310 40KM SFP 0~70 DFB+PIN



Rollball company show



bidi sfp 1310/1490 LC/SC DOM 1.25G Transceiver Modulebidi sfp 1310/1490 LC/SC DOM 1.25G Transceiver Module



Rollball Payment & Shippment & Delivery show



1.Payment:T/T,L/C,Western union,Paypal,Escrow etc.



bidi sfp 1310/1490 LC/SC DOM 1.25G Transceiver Module



 2.Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc.



bidi sfp 1310/1490 LC/SC DOM 1.25G Transceiver Module



3.Delivery time: 2-3 day for samples  and small quantity,5-7 days for large quantity.
