1.25Gbps/1.25Gbps 1000BASE-PX20 1490/1310nm GEPON OLT SFP Module

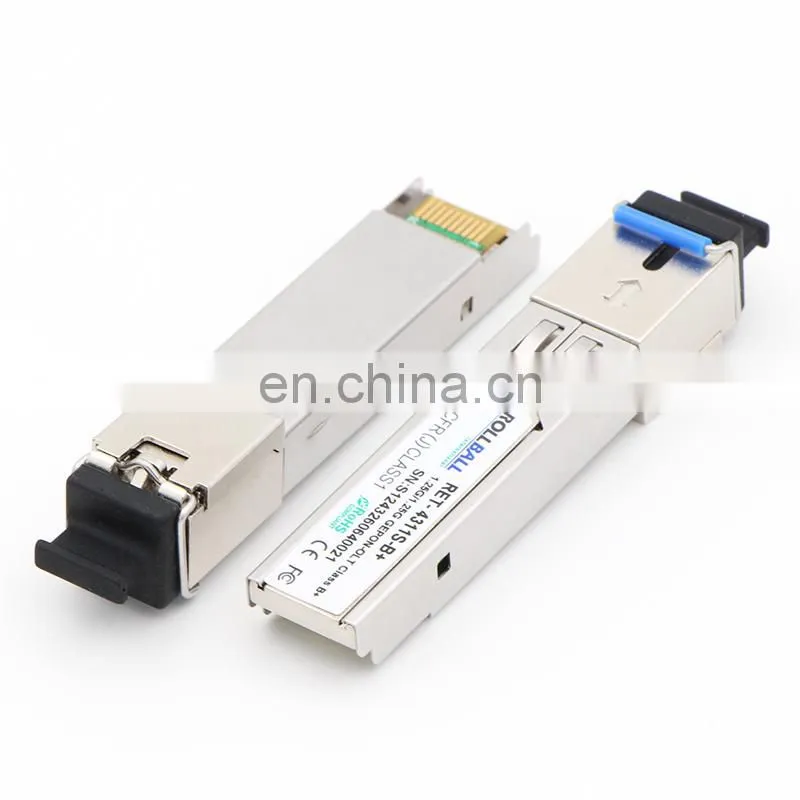

The RETP-4311S-E2CDB transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver. It is optical line terminal(OLT) for IEEE Std 802.3ah™ -2004 1000BASE-PX20. The optical transceiver is compliant with the Small Form- Factor Pluggable (SFP) Multi-Source Agreement (MSA).
Features
Single Fiber Transceiver with single mode SC receptacle
1490nm continuous-mode 1.25G/s transmitter with DFB laser
1310nm burst-mode 1.25G/s receiver with APD-TIA
Single 3.3V power supply
LVPECL compatible data input /output
Burst mode received signal strength indication (RSSI) output
Support more than 24dB dynamic range
Complies with IEEE Std 802.3ah™ -2004 1000BASE-PX20
Digital diagnostic interface compliant with SFF-8472 Rev 9.4 ,
Complies with RoHS directive (2002/95/EC)
Operating case temperature:
Standard : 0 to +70°C
Applications
Gigabit Ethernet Passive Optical Network (GEPON) OLT
Rollball International Co.,Ltd, specialized in providing high performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industry worldwide. With more than 10 years of industry experience, Rollball brand products have covered all areas of fiber optic transmission, International sales steadily, the products are exported to more than 200 countries and regions.
1. Our Factory
2. Our Facility

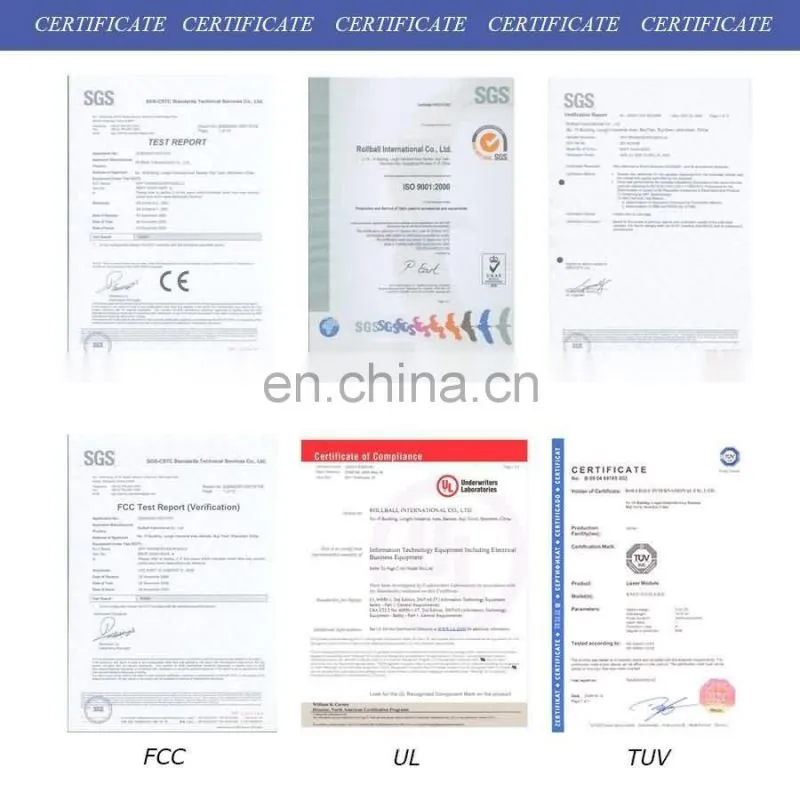

3. Our Certification
- Quality system of ISO900,CE,FCC,ROHS registration
- Manufacture system
- R&D system
- Purchasing system
- Prompt delivery and remarkable services
- Reasonable prices
- Accept orders according to customer's demands
- Rich experience of OEM & ODM co-operation
- Shipment,payment and delivery
Mob / Whatsapp / Wechat: +86 15971526204
Skype: sales013.rollball
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
