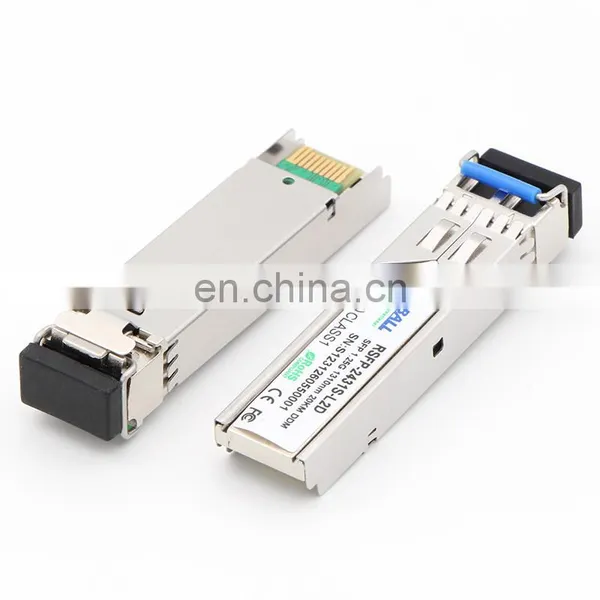

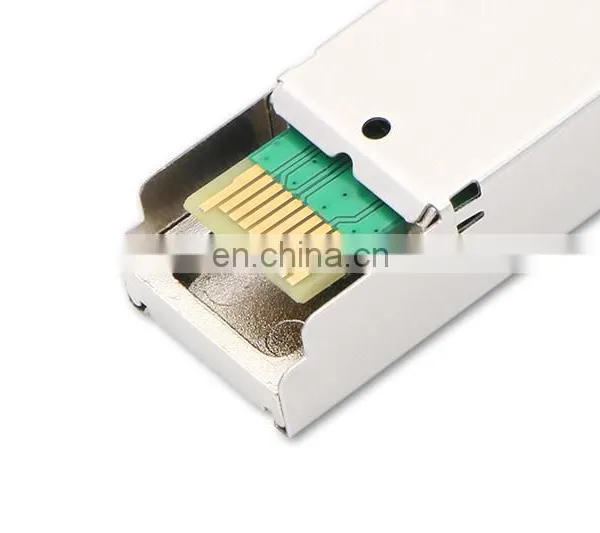

Home > Products > Fiber Transceiver Module > 1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module compatible with GLC-LH-SMD
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module compatible with GLC-LH-SMD
- 1000 per Month
- T/T Credit Card
- 1.25Gb/s BIDI SFP 120km bidi Tx 1490/Rx 1550nm SMF simplex LC dom transceiver modules
- 1.25Gbps/1.25Gbps 1000BASE-PX20 1490/1310nm GEPON OLT SFP Module
- WDM BIDI SFP 155M 1310/1550nm 60km LC/SC dom module
- 155M BIDI SFP 1310/1490nm 40km LC dom module
- 1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km simplex SC DOM Module
- 1.25G SFP CWDM 100km 120km SMF LC Dual DOM modules
Product Description
Nice price SFP 1310NM 10km 20km 1.25G SFP SMF Duplex LC DDM Module
Description
1.The sfp modules for switches are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 0-120km transmission distance with SMF.
2.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
3.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Main Features
1.Dual data-rate of 1.25Gbps/1.063Gbps operation
2.1310nm FP laser and PIN photodetector for 0-120km transmission

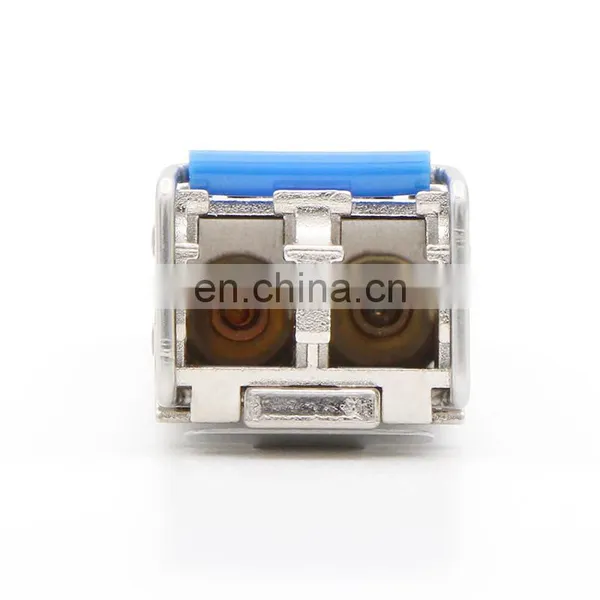

3.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
4.Digital Diagnostic Monitoring: Internal Calibrationor External Calibration
5.Compatible with SONET OC-24-LR-1
6.Compatible with RoHS
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Product List
SFP (155M/622M/1.25G/2.125G/2.5G/4.25G) without DDMI | |||||||
RSFP-0385M-02 | 155M | 850 | MM | 2KM | SFP | 0~70 | 850nm VCSEL |
RSFP-0331M-02 | 155M | 1310 | MM | 2KM | SFP | 0~70 | FP(LED)+PIN |
RSFP-0331S-L2 | 155M | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
RSFP-0331S-L4 | 155M | 1310 | SM | 40KM | SFP | 0~70 | FP+PIN |
RSFP-0355S-L8 | 155M | 1550 | SM | 80KM | SFP | 0-70 | DFB+PIN |
RSFP-1231S-L2 | 622M | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
RSFP-1231S-L4 | 622M | 1310 | SM | 40KM | SFP | 0~70 | DFB+PIN |
RSFP-1255S-L6 | 622M | 1550 | SM | 60KM | SFP | 0~70 | DFB+PIN |
RSFP-1255S-L8 | 622M | 1550 | SM | 80KM | SFP | 0~70 | DFB+PIN |
RSFP-2485M-S5 | 1.25G | 850 | MM | 550M | SFP | 0~70 | VSCEL+PIN |
RSFP-2431S-L2 | 1.25G | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
RSFP-2431S-L4 | 1.25G | 1310 | SM | 40KM | SFP | 0~70 | DFB+PIN |
RSFP-2455S-L6 | 1.25G | 1550 | SM | 60KM | SFP | 0~70 | DFB+PIN |
RSFP-2455S-L8 | 1.25G | 1550 | SM | 80KM | SFP | 0~70 | DFB+PIN |
RSFP-2455S-12 | 1.25G | 1550 | SM | 120KM | SFP | 0~70 | DFB+APD |
RSFP-4885M-S3 | 2.125G/2.5G | 850 | MM | 300M | SFP | 0~70 | VSCEL+PIN |
RSFP-4831S-02 | 2.125G/2.5G | 1310 | SM | 2KM | SFP | 0~70 | FP+PIN |
RSFP-4831S-L2 | 2.125G/2.5G | 1310 | SM | 20KM | SFP | 0~70 | DFB+PIN |
RSFP-4855S-L6 | 2.125G/2.5G | 1550 | SM | 60KM | SFP | 0~70 | DFB+APD |
RSFP-4855S-L8 | 2.125G/2.5G | 1550 | SM | 80KM | SFP | 0~70 | DFB+APD |
SFP (155M/1.25G/2.125G/2.5G/4.25G) with DDMI | |||||||
RSFP-0385M-02D | 155M | 850 | MM | 2KM | SFP | 0~70 | 850nm VCSEL |
RSFP-0331M-02D | 155M | 1310 | MM | 2KM | SFP | 0~70 | FP(LED)+PIN |
RSFP-0331S-L1D | 155M | 1310 | SM | 10KM | SFP | 0~70 | FP+PIN |
RSFP-0331S-L4D | 155M | 1310 | SM | 40KM | SFP | 0~70 | FP+PIN |
RSFP-0355S-L8D | 155M | 1550 | SM | 80KM | SFP | 0-70 | DFB+PIN |
RSFP-1231S-L2D | 622M | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
RSFP-1231S-L4D | 622M | 1310 | SM | 40KM | SFP | 0~70 | DFB+PIN |
RSFP-2485M-S5D | 1.25G | 850 | MM | 550M | SFP | 0~70 | VSCEL+PIN |
RSFP-2431S-L2D | 1.25G | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
RSFP-2431S-L4D | 1.25G | 1310 | SM | 40KM | SFP | 0~70 | DFB+PIN |
RSFP-2455S-L6D | 1.25G | 1550 | SM | 60KM | SFP | 0~70 | DFB+PIN |
RSFP-2455S-L8D | 1.25G | 1550 | SM | 80KM | SFP | 0~70 | DFB+PIN |
RSFP-2455S-12D | 1.25G | 1550 | SM | 120KM | SFP | 0~70 | DFB+APD |
RSFP-4885M-S3D | 2.125G/2.5G | 850 | MM | 300M | SFP | 0~70 | VSCEL+PIN |
RSFP-4831S-02D | 2.125G/2.5G | 1310 | SM | 2KM | SFP | 0~70 | FP+PIN |
RSFP-4831S-L2D | 2.125G/2.5G | 1310 | SM | 20KM | SFP | 0~70 | DFB+PIN |
RSFP-4831S-L4D | 2.125G/2.5G | 1310 | SM | 40KM | SFP | 0~70 | DFB+APD |
RSFP-4855S-L6D | 2.125G/2.5G | 1550 | SM | 60KM | SFP | 0~70 | DFB+APD |
RSFP-4855S-L8D | 2.125G/2.5G | 1550 | SM | 80KM | SFP | 0~70 | DFB+APD |
RSFP-4855-12D | 2.125G/2.5G | 1550 | SM | 120KM | SFP | 0~70 | DFB+APD |
RSFP-4G85M-S5D | 4.25G | 850 | MM | 500M | SFP | 0~70 | VSCEL+PIN |
RSFP-4G31S-L1D | 4.25G | 1310 | SM | 10km | SFP | 0~70 | DFB+PIN |
RSFP-4G31S-L3D | 4.25G | 1310 | SM | 30km | SFP | -20~85 | DFB+PIN |
RSFP-4G31S-02D | 4.25G | 1310 | SM | 2KM | SFP | -20~85 | FP+PIN |
Our Strength & Quality Assurance
Our Strength & Quality Assurance
- Quality system of ISO900,CE,FCC,ROHS registration

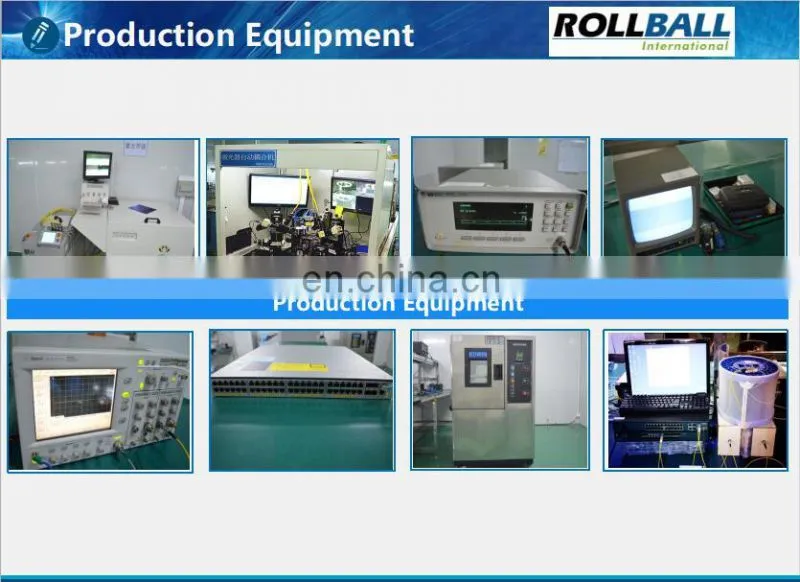

- Manufacture system
- R&D system
- Purchasing system
- Prompt delivery and remarkable services
- Reasonable prices
- Accept orders according to customer's demands
- Rich experience of OEM & ODM co-operation
- Shipment,payment and delivery
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
