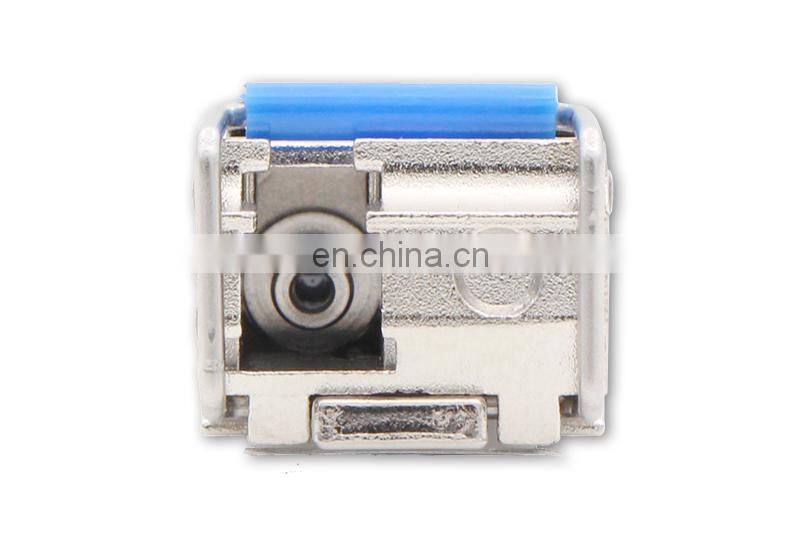

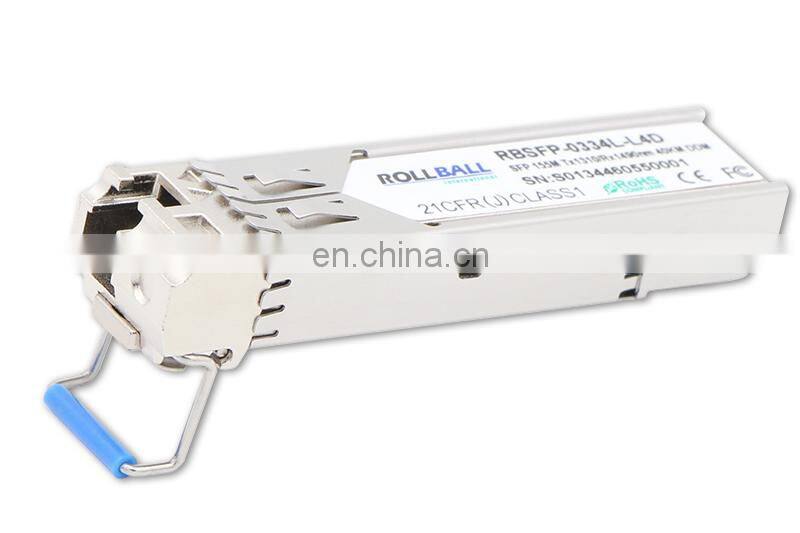

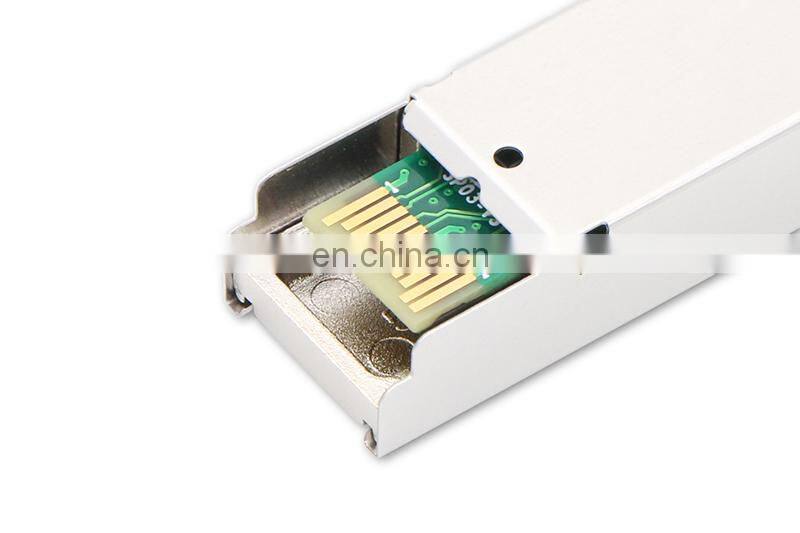

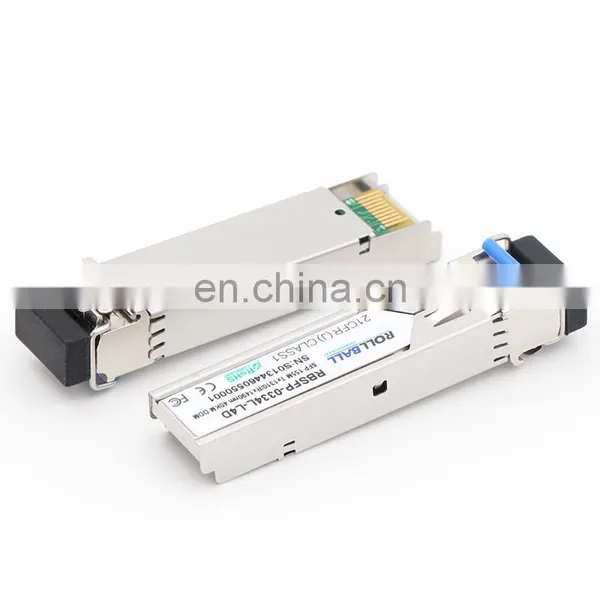

155M BIDI SFP 1310/1490nm 40km LC dom module

155M BIDI SFP 1310/490nm 40km sfp simplex LC ddm transceiver module

Description

• The SFP BIDI transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 40km transmission distance with SMF.
• The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.   The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Main Features

• Up to 155Mbps data-rate
• 1490nm FP laser and PIN photo detector for 40km transmission
• 1310nm FP laser and PIN photo detector for 40km transmission
• BIDI LC/UPC type pluggable optical interface
• Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
• RoHS compliant and lead-free
• Single +3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Compliant with SFF-8472
• Case operating temperature

            Commercial: 0°C to +70°C

            Extended: -10°C to +80°C

            Industrial: -40°C to +85°C

 Applications

• SDH STM-1, S-1.1,L-1.1, L-1.2
• SONET OC-3 IR1,LR1,LR2
• Other Optical Links

Product List

Our Strength & Quality Assurance

Payment

Shipment

1. Quality system of ISO900,CE,FCC,ROHS registration
2. Manufacture system
3. R&D system
4. Purchasing system
5. Prompt delivery and remarkable services
6. Reasonable prices
7. Accept orders according to customer's demands
8. Rich experience of OEM & ODM co-operation
9. Shipment,payment and delivery

We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
