Home > Products > GPON ONU and Ethernet device > PG 210G FTTH 10/100/1000Mbps auto-negotiation ethernet interface RJ45 interface 1 GE gpon onu

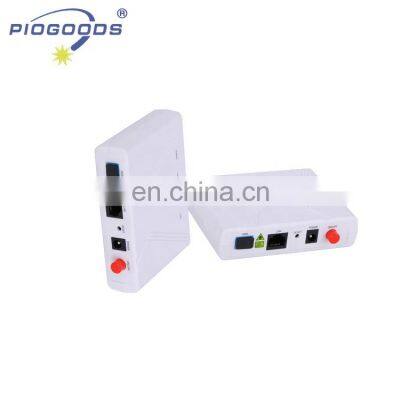

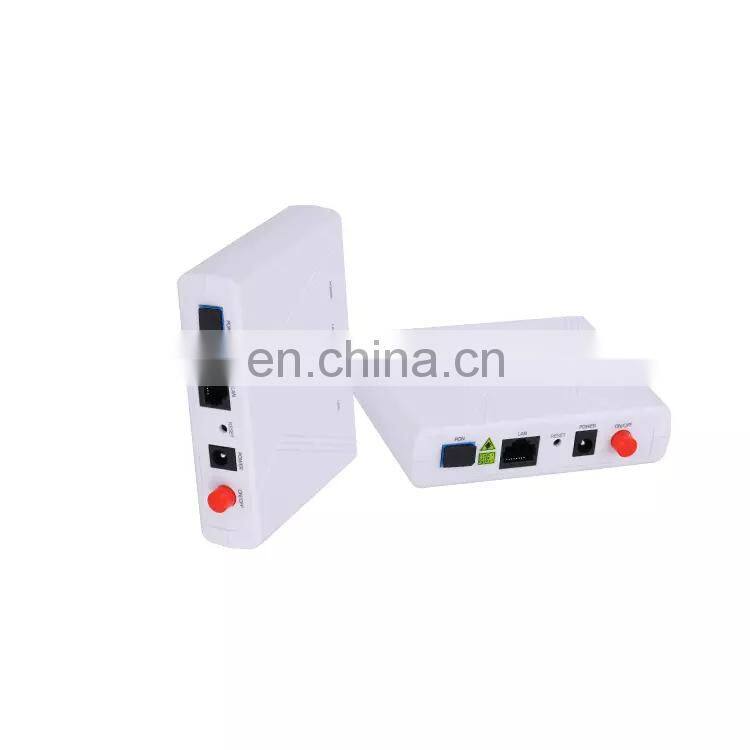

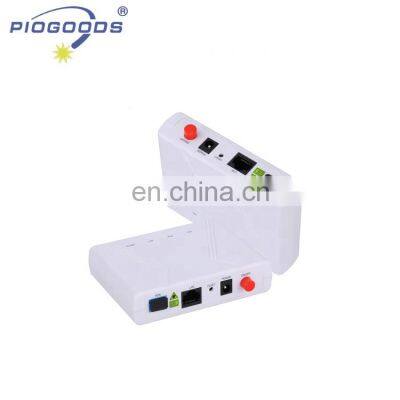

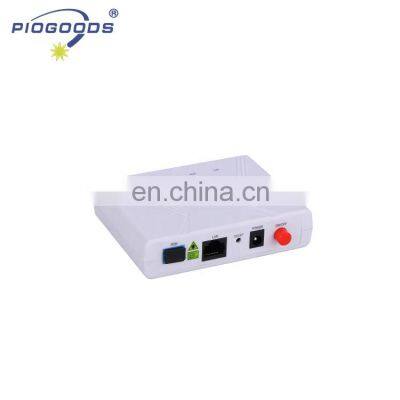

PG 210G FTTH 10/100/1000Mbps auto-negotiation ethernet interface RJ45 interface 1 GE gpon onu
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
PG2412GDE China oem supplier 3FE+1GE+WIFI ftth wifi catv gpon onu
-
PG-GE3103XR 1GE+3FE+CATV+WIFI EPON ONU gpon onu catv gpon ont
-
New 1GE 3FE 2.4GHz 5dBi onu iptv wifi epon gpon xpon onu ont with wifi catv for FTTH
-
1GE+1FE+24Ghz WIFI+CATV onus with rf catv wifi gpon xpon onu
-
PG221GE High quality 1GE+1FE+2.4G onu gpon onu wifi
-
1GE+1FE+2WIFI+1POTS epon gpon xpon onu
Product Description
Product Description
Tech parameter | Description |
Up-link interface | 1 GPON interface, SC single mode single fiber RX 2.488Gbits/s rate and TX 1.244Gbits/s rate Fiber type：SC/PC TX Optical power：0~4dBm RX Sensitivity：-28dBm safety: ONU authentication mechanism |
Wavelength(nm) | TX 1310nm，RX 1490nm |
Fiber connector | SC connector |
Down-link data interface | 1pcs 10/100/1000Mbps auto-negotiation Ethernet interface, RJ45 interface |
Indicator LED | 4pcs, refer to NO.6 definition of indicator LED |
DC supply interface | input＋12V 0.5A，footprint：DC0005 ø2.5MM |
Power | ≤2.5W |
Operating temperature | -5～+55℃ |
Humidity | 10～85%（non-condensation） |
Storage temperature | -30～+70℃ |
Dimension（MM） | 108*85*25.5（mainframe） |
Weight | 0.1Kg（mainframe） |
Model No. | |
210G | 1GE |
Packing list | |
Name | Quantity |
GPON ONU | 1 |
Supply power | 1 |
Manual & warranty card | 1 |
Recommend Products

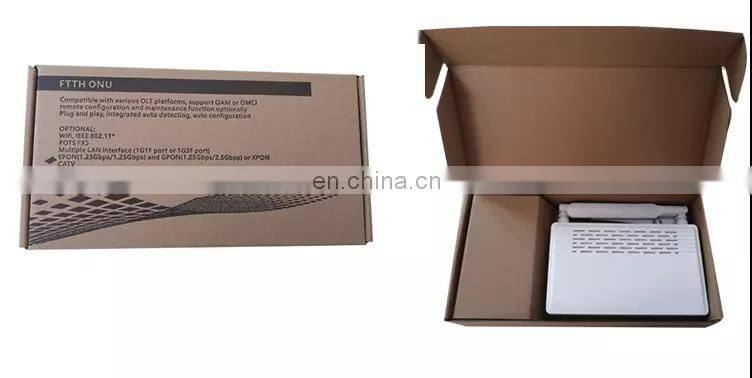

Product packaging
