Cctv to ip Converter Cctv to tv Converter

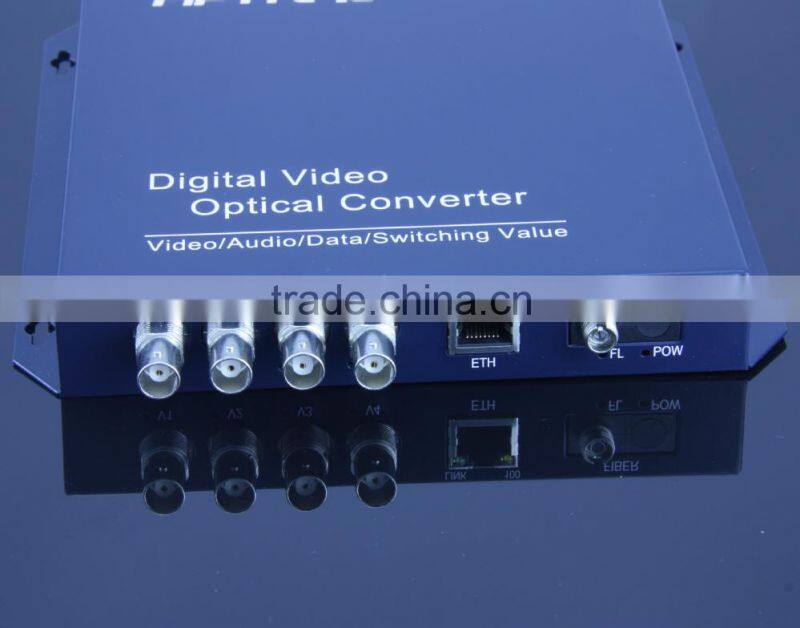

Cctv to ip Converter Cctv to tv Converter photo-1

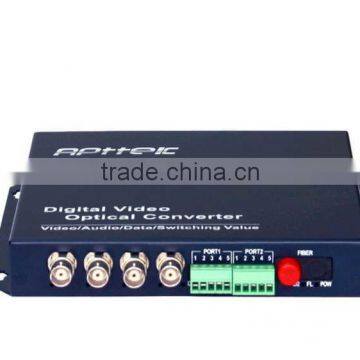

Cctv to ip Converter Cctv to tv Converter photo-2
US$ 1 - 100 MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Apt cctv to tv converter
Model Number:
APT-101F/D04V1D-WSX
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Apt cctv to tv converter
Model Number APT-101F/D04V1D-WSX

Cctv to ip converter cctv to tv converter



Product Description

Cctv to ip converter cctv to tv converter introducation

Features:

8 bit digital video coding

All-digital uncompressed video transfer,stable reliable function

Wall-hung type and 19 inches/2U chassis card for choice

Adaptive data rate,without setting

Automatic compatible with PAL,NTSC and SECAM video format

With a APC circuit,Output optical power constant,widely dynamic range

Statue LED can indicate system work status

Fiber transfer technology with WDM/CWDM/DWDM

Designed as industry-specific module,function expend easily

Special lightning protection design

No debugging after installing,easily for maintain

Support with customized and OEM machining



Cctv to ip converter cctv to tv converter

Video Characters:

Video port QTY:1,2,4,8,16 Channel can do as command

Video port type:BNC

Input/output impedance:75 Ω(unbalance)

Input/output voltage:1 Vp-p (Peak-peak)

Video banwidth:8 MHz

Sampling rate:16 MHz high speed

Differential gain:(10~90% APL)DG<10%(typical)

Differential phase:(10~90%APL)DP<0.7 o(Typical)

Video SNR(Weighting):S/N70dB(Max optical link loss)



  Cctv to ip converter cctv to tv converter

General Index:

Data port port type:Standard industrial connector

Data signal format:RS232,RS422,RS485

Bit rate:0~256

Bit error rate:10-9

Working temperature:-20~70

Humidity:0~95%(No condensation)

Power supply:AC85V~265 V/DC 5V

Power rate:2.5 W

MTBF:10,000 hours





cctv to tv converter detail image



Cctv to ip converter cctv to tv converter



Cctv to ip converter cctv to tv converter





Related Products

  Cctv to ip converter cctv to tv converter related product

Fiber type

Interface

Emission wavelength

(nm)

Transmitting power

(dBm)

Receiving sensitivity

(dBm)

Light degree of Saturation

(dB)

Light Loss

(dBm/Km)

Reach distance

(Km)

Multi mode

ST/FC

1310

-18~-16

-31

-9

1

0~3



FC/FC

1310

-18~-8

-35

-8

0.5

0~20

Single mode

FC/FC

1310

-8~-3

-35

-3

0.5

0~40



FC/FC

1550

-5~0

-35

+2

0.25

0~60





Packaging & Shipping

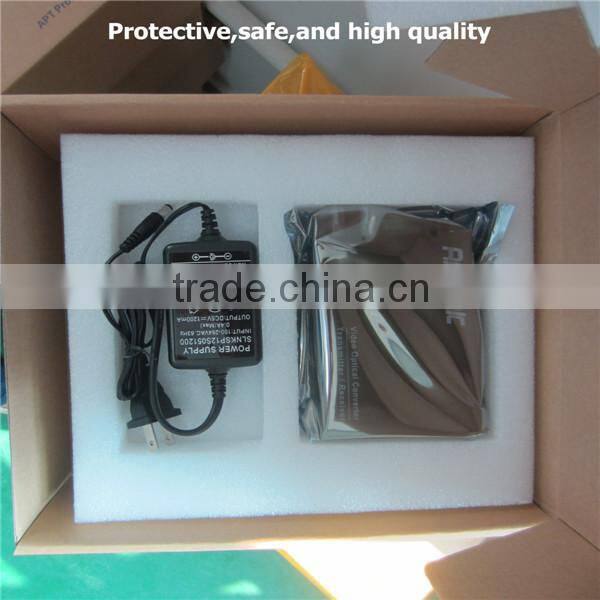

  Cctv to ip converter cctv to tv converter package and shipping details

Package:



Main body *1

Manual *1

Charger * 1

Warranty card *1

All this in a carton case



Delivery:



Leading time:5~10 working days

Delivery way:By air,sea and express(DHL,EMS,Ups,Fedex,Tnt)



Payment:



T/T,Paypal

 Cctv to ip converter cctv to tv converterCctv to ip converter cctv to tv converter
