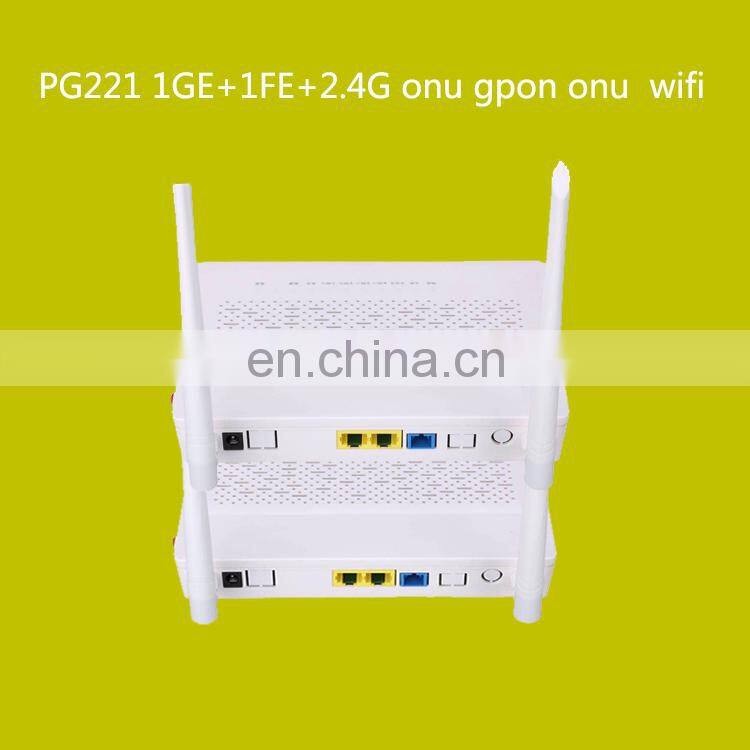

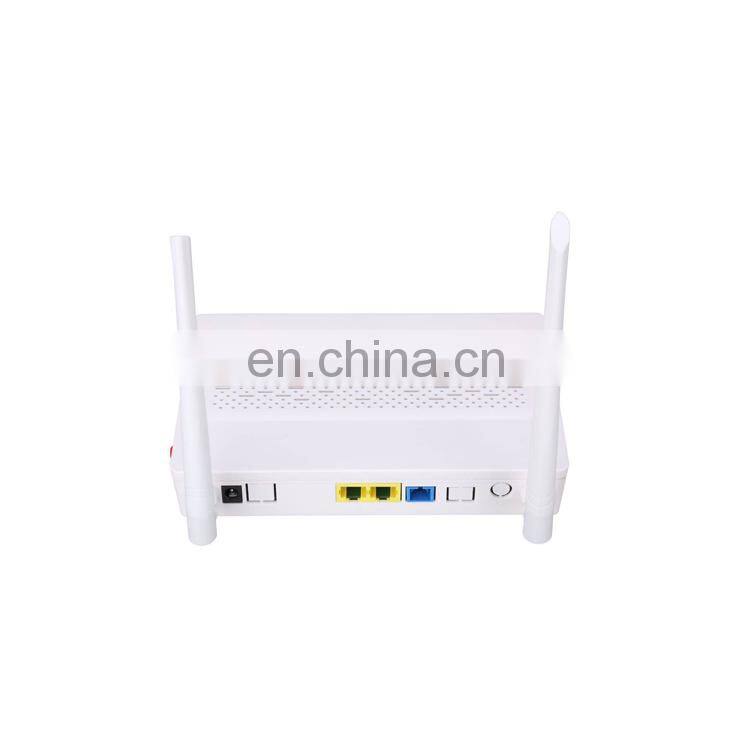

PG221GE High Quality 1GE+1FE+2.4G Onu Gpon Onu Wifi
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
1GE+1FE+2WIFI+1POTS Epon Gpon Xpon Onu
-
4GE+2.4G 5G WIFI+1USB+1POTS Good Price Optic Fiber XPON EPON GPON ONU for FTTH
-
Pole-mounted and Wall-mounted Outdoor Waterproof 16 Core FTTH PON Box Fiber Optic Distribution Box
-
Indoor 2 Port Small FTTH Mini Fiber Optic Terminal Patch Panel Box
-
8 Cores Fiber Distribution BOX 8 Ports Ftth Drop Cable Box
-
96/144/288/576 Cores Ftth Outdoor Cabinet
Product Description
Product Description
Specification
Tech parameter | Description |
Up-link interface | 1 GPON interface, SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type：SC/APC TX Optical power：0~4dBm RX Sensitivity：-28dBm Safety: ONU authentication mechanism |
Wavelength(nm) | TX 1310nm，RX 1490nm |
Fiber connector | SC/APC connector |
Down-link data interface | 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
Indicator LED | 7 pcs，refer to NO.6 definition of indicator LED |
DC supply interface | input＋12V 1A，footprint：DC0005 ø2.1MM |
Power | ≤5W |
Operating temperature | -5～+55℃ |
Humidity | 10～85%（non-condensation） |
Storage temperature | -30～+70℃ |
Dimension（MM） | 185*125*32mm（mainframe） |
Weight | 0.3Kg（mainframe） |
WIFI Characteristics | |
Tech features | Description |
Antenna | 2T2R Mode gain:5dBi |
Rate | IEEE802.11b/g/n: 300Mbps Channel number:13 for wifi4 |
Encryption methods | WFA、WPA、WPA2、WAPI |
Tx power | 17dBm for 2.4GHz |
Rx sensitivity | WIFI4：-59dBm @ channel 11 MCS7 |
WPS function | Support |
Ordering Information | |
Model No. | Descriptions |
221GE | 1GE+1FE+2.4G WIFI |
Product Features
△ Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
△ Support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
△ Support bidirectional FEC and RS(255,239) FEC CODEC
△ Support 32 TCONT and 256 GEMPORT
△ Support AES128 decryption function of G.984 standard
△ Support SBA and DBA dynamically broadband allocation
△ Support the PLOAM function of G.984 standard
△ Support Dying-Gasp check and report
△ Support synchronous Ethernet
△ Good interworking with the OLT from different manufacturers, such as Huawei, ZTE, Cortina, etc.
△ Down-link LAN ports:
1*10/100/1000M with auto-negotiation and 1*10/100M with auto-negotiation
△ Support the rogue ONU alarm function
△ Support VLAN function
△ Operation mode: SFU or HGU option
△ Double antennas: external box with 5DBi
△ Support of 300Mbps PHY rate
△ Support multiply SSID
△Multiple encryption methods:WFA、WPA、WPA2、WAPI
