1GE+1FE+24Ghz WIFI+CATV Onus With rf Catv Wifi Gpon Xpon Onu

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Specification

Technical item	Details
PON Interface	1 GPON BOB （Bosa on Board）Receiving sensitivity: ≤-28dBm Transmitting optical power: +1~+4dBm Transmission distance: 20KM
		Receiving sensitivity: ≤-28dBm
		Transmitting optical power: +1~+4dBm
		Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/APC Connector
Design Scheme	RTL9603C+RTL8192FR BOB(RTL8290B)
Chip Spec	CPU 950MHz,DDR2 128MB
Flash	SPI Nor Flash 16MB
LAN Interface	1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless	Compliant with IEEE802.11b/g/n, Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps, 2T2R,2 external antenna 5dBi, Support: Multiple SSID Channel: Auto Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
CATV Interface	RF, WDM, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: 78dBuV AGC range: -13~+1dBm MER: ≥32dB@-15dBm
LED	11 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN4、 Worn、 Normal(CATV)
Push-Button	3,For Function of Reset, WLAN, WPS
Operating Condition	Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing）
Storing Condition	Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing）
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	155mm×92mm×34mm（L×W×H）
Net Weight	0.24Kg

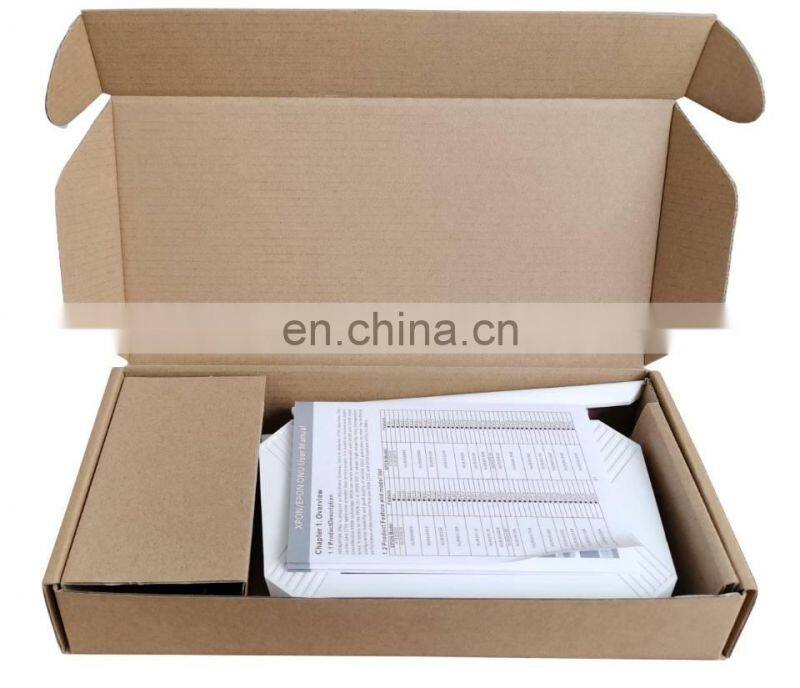

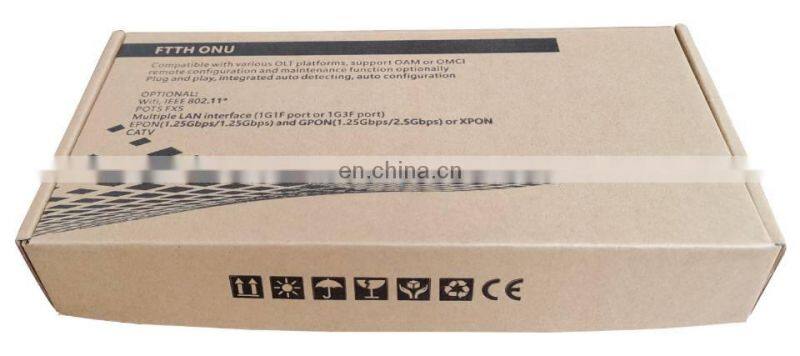

Packing & Delivery
