Passive optic FC Connector component

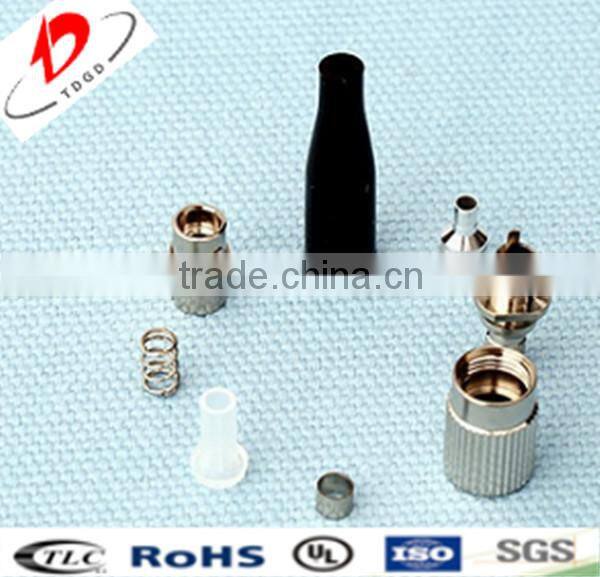

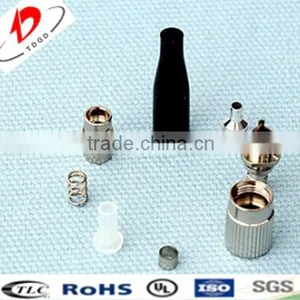

The FC Standard Connector is available for those who prefer to assemble the FC connector from its component parts. Kits are available in inner key and key ring styles, with boots available in a variety of sizes and colors.
| Characteristics | Unit | Value/Performance | Comments | ||
| SM | MM | ||||
| PC | APC | ||||
| Basic | |||||
| Insertion Loss (IL) | dB | <0.3 | IEC 61300-3-4 | ||
| Return Loss (RL) | dB | SPC>45 UPC>50 | >60 | >23 | IEC 61300-3-6 |
| Endurance | dB | <0.2 | IEC 61300-2-2, coupling and uncoupling 500 cycles, clean every 25 cycles | ||
| Operating Temperature | °C | -40 ~ +70 | |||
| Storage Temperature | °C | -40 ~ +70 | |||
| Mechanical | |||||
| Drop | dB | <0.2 | IEC 61300-2-12, 1.5m, 5 drops, no damage | ||
| Vibration | dB | <0.2 | IEC 61300-2-1, 10-55Hz, 0.75mm amplitude, 0.5 hrs/axis | ||
| Flex | dB | <0.2 | Telcordia GR326(4.4.3.2), 0.9kg, +90°, 100cycles, for 2mm or larger cable | ||
| Twist | dB | <0.2 | Telcordia GR326(4.4.3.3), 1.35kg load, +2.5 turns, 10 cycles, for 2mm or larger cable | ||
| Pull Proof | dB | <0.2 | Telcordia GR326(4.4.3.4), 3.4kg at 90°, 6.8kg at 0°, for 2mm or larger cable | ||
| Crushing | dB | <0.2 | IEC 61300-2-6, 4.2kg, 2min | ||
| Environmental | |||||
| Cold | dB | <0.2 | IEC 61300-2-17, -20°C, 96 hrs | ||
| Dry Heat | dB | <0.2 | IEC 61300-2-18, 70°C, 96 hrs | ||
| Damp Heat | dB | <0.2 | IEC 61300-2-19, 40°C, 95%RH, 96 hrs | ||
| Features | Applications |
| 1. Corrosion resistant body | 1. CATV |
| 2. Inner Key and Key Ring styles available | 2. Active device termination |
| 3. Variety of boot types and colors | 3. Telecommunication networks |
| 4. Test equipment | |
| 5. Multimedia | |
| 6. Premise installations | |
| 7. Industrial, and military |
