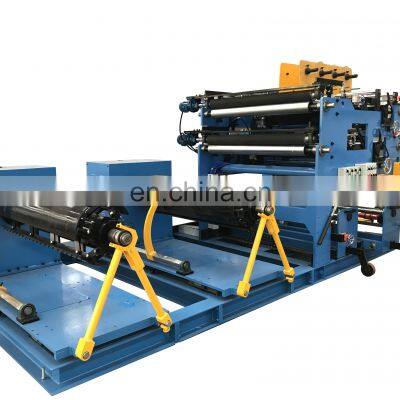

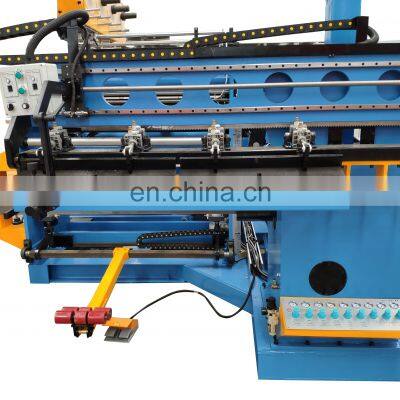

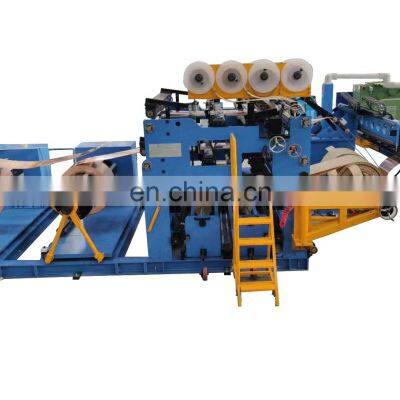

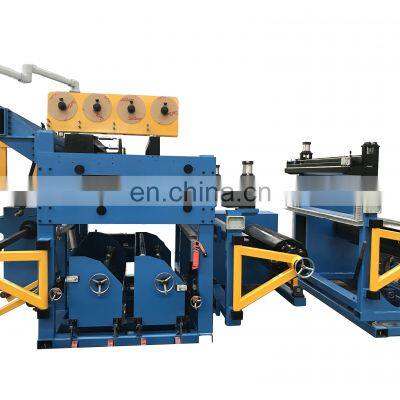

Foil Coil Winding Machine for Transformer Coil Manufacture
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1995
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Corrugated Fin Welding Machine for Transformer Tank UseNegotiableMOQ: 1 -
Corrugated Fin Forming Machine for Transformer Wall Tank MakingNegotiableMOQ: 1
-
Automatic CRGO Steel Slitting MachineNegotiableMOQ: 1
-
Cut to Length Line for Transformer Core Cutting, Fully Automatic MachineNegotiableMOQ: 1
-
Electrical Steel Cutting Line for Transformer CoresNegotiableMOQ: 1
Product Description
Specification
NO |
COMPONENT |
QTY |
1 |
Foil Decoiler with foil paper collector |
2 sets |
2 |
Pneumatic Tension Device |
2 sets |
3 |
Press Unit |
2 sets |
4 |
Cleaning Unit |
2 sets |
5 |
Feeding Device |
2 sets |
6 |
Insulation Paper Decoiler |
2 sets |
7 |
End Insulation |
8 sets |
8 |
Winding Device |
1 set |
9 |
Calibrating Device |
2 sets |
10 |
Shearing Unit |
2 sets |
11 |
Automatic TIG Welding Apparatus with Welding Machine |
1 set |
12 |
Electrical Control System |
1 set |
FOIL WINDING MACHINE
Adoption of the patent technology of Energy-saving hydraulic winding unit for foils and wires tension; based on principle of hydraulic transmission. This technology has clear advantages of being accurate and stable in the control of tension and stable in tension both in static and dynamic state and playes a critical role in the guarantee of coil winding quality in comparison with the principle of producing tension by friction braking.
Adoption of fully hydraulic servo system for foils and the automatic adjustment of foil winding position, Simple structure and high reliability. High offset regulating accuracy of 0.5mm.

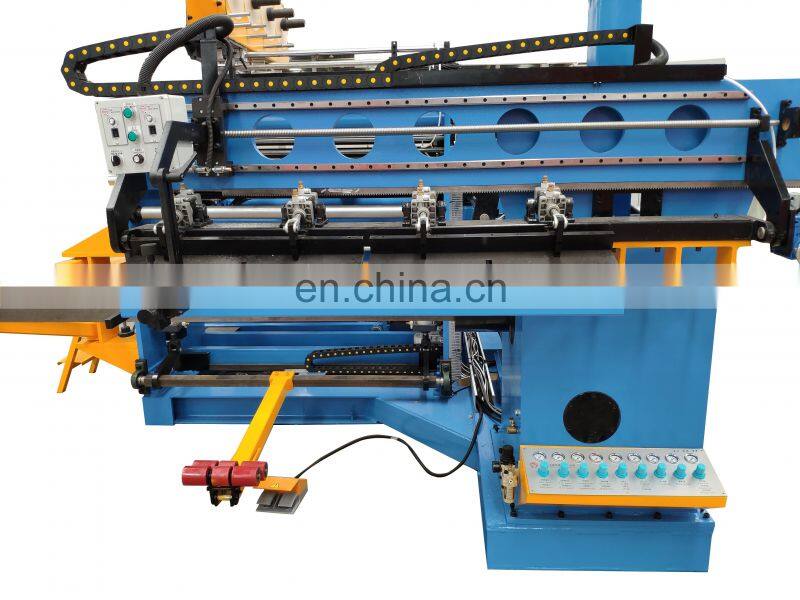

Adoption of special welder for automatic tungsten electrode argon welding of foils. Possibility of butt welding for material
saving besides overlap welding.
saving besides overlap welding.

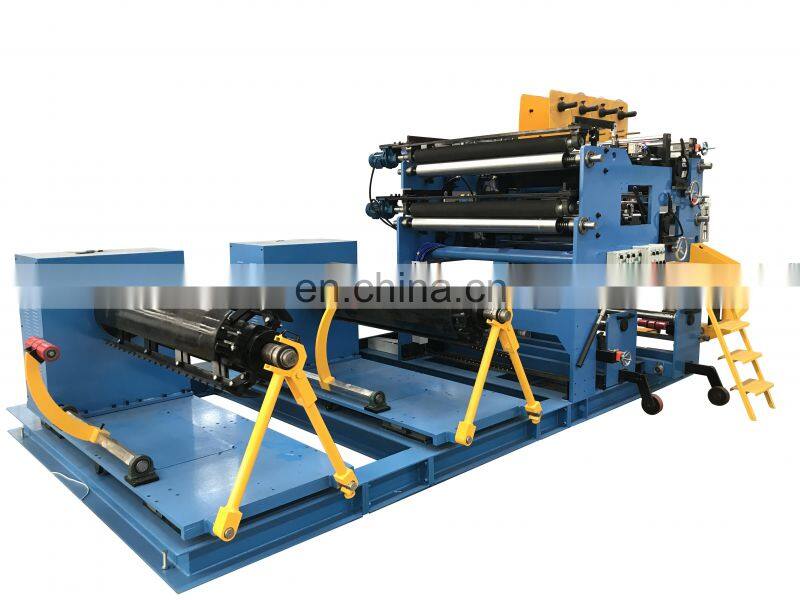

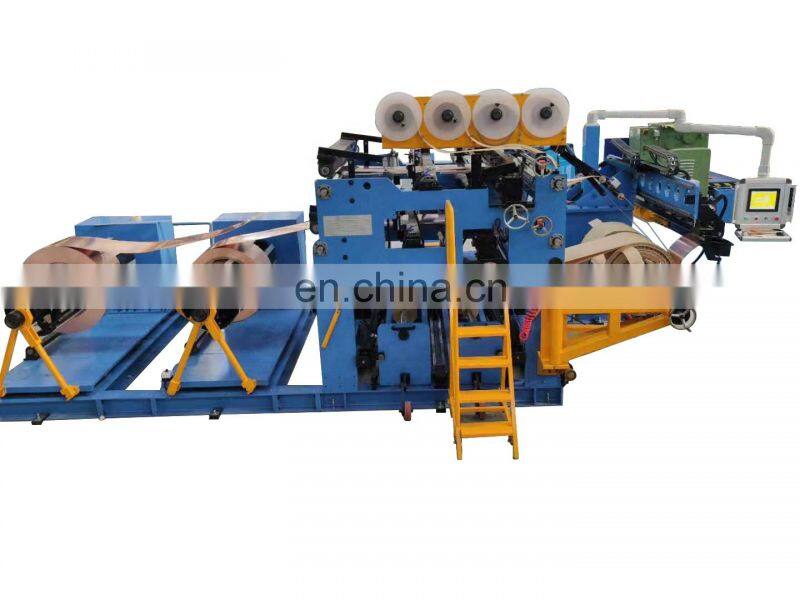

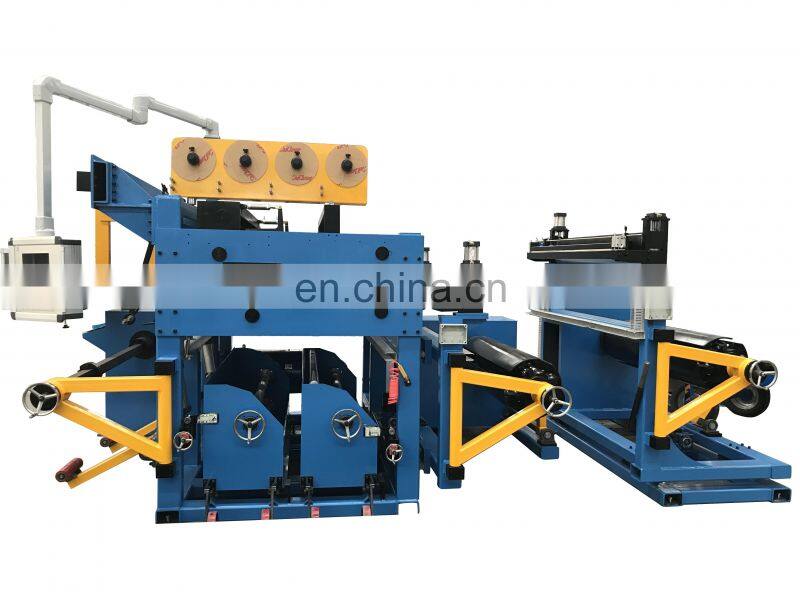

Double-layer Foil Coil Winding Machine 2BRJ-1600 can be used to manufacture low-voltage foil coil of larger capacity.
