Grain Oriented Silicon Steel Sheet

US$ 1,900 - 2,600 MOQ: 25 Tons

Key Specifications

Type:

Oriented Silicon Steel

Technique:

Cold Rolled

Thickness:

0.23, 0.30

Tangshan Tianming Steel Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG PORT

Delivery Detail:

Delivery time depends on order quantity.

Type Oriented Silicon Steel

Technique Cold Rolled

Thickness 0.23, 0.30

Surface Treatment Coated

Shape Steel Coil

Standard GB, JIS

Place of Origin Hebei, China

Specifications

Standard: AISI,ASTM,BS,DIN,GB,JIS Place of Origin: China(Mainland)

Oriented Electrical Steel After Slitting

Slitting size: as per customer requirement

Available Thickness: 0.23,0.27,0.30mm

Width: 800-1000mm Type: Steel Coil

Length: can be calculate Weight: 2-5 ton

Technique: Cold rolled Inside Diameter: 508mm

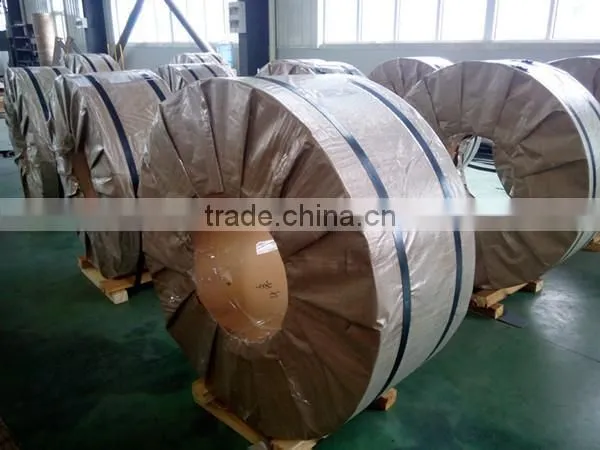

Packaging Detail: sea-worthy packing or as requirement of customer

Delivery Detail: Within 20-60 days after received of L/C or prepayment

Application: Large midium and small transformer,Large motors,Reactor and magnetic amplifier

Our advantage

Feature 1	Stable product quality
Feature 2	Excellent magnetic properties in rolling direction
Feature 3	Fine surface coating property
Feature 4	Outstanding processability
Feature 5	Perfect dimensional accuracy
Feature 6	Diversified width option
Feature7	stable performances, competitve prices and quick delivery
Feature8	Low tolerance, high lamination Factor, and well antistatic coating
Feature9	Easily punched and cut, high dimensional accuracy
Feature10	Smooth and flat surface, low core lss and permagnetic inducton

Grade

Type	Available Thickness /mm	Grade	Density /	Max.Core loss /	Min.Magnetic induction /T	Min.Lamination factor /%
Common type	0.27	27SQ120	7.65	1.20	1.82	95.0
		27SQ130	7.65	1.30	1.81	95.0
		27SQ140	7.65	1.40	1.80	95.0
	0.30	30SQ120	7.65	1.20	1.82	96.0
		30SQ130	7.65	1.30	1.81	96.0
		30SQ140	7.65	1.40	1.80	96.0
High magnetic induction type	0.27	27SQG095	7.65	0.95	1.89	95.0
		27SQG100	7.65	1.00	1.89	95.0
		27SQG110	7.65	1.10	1.89	95.0
		27SQG120	7.65	1.20	1.89	95.0
	0.30	30SQG100	7.65	1.00	1.89	96.0
		30SQG105	7.65	1.05	1.89	96.0
		30SQG110	7.65	1.10	1.89	96.0
		30SQG120	7.65	1.20	1.89	96.0
Domain refined high magnetic Induction type	0.27	27SQGD085	7.65	0.85	1.89	95.0
		27SQGD090	7.65	0.90	1.89	95.0
		27SQGD095	7.65	0.95	1.89	95.0
		27SQGD100	7.65	0.99	1.89	95.0
	0.30	30SQGD095	7.65	0.95	1.89	96.0
		30SQGD100	7.65	1.00	1.89	96.0
		30SQGD105	7.65	1.05	1.89	96.0
		30SQGD120	7.65	1.20	1.89	96.0
