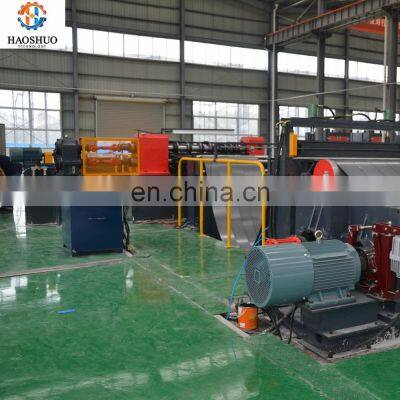

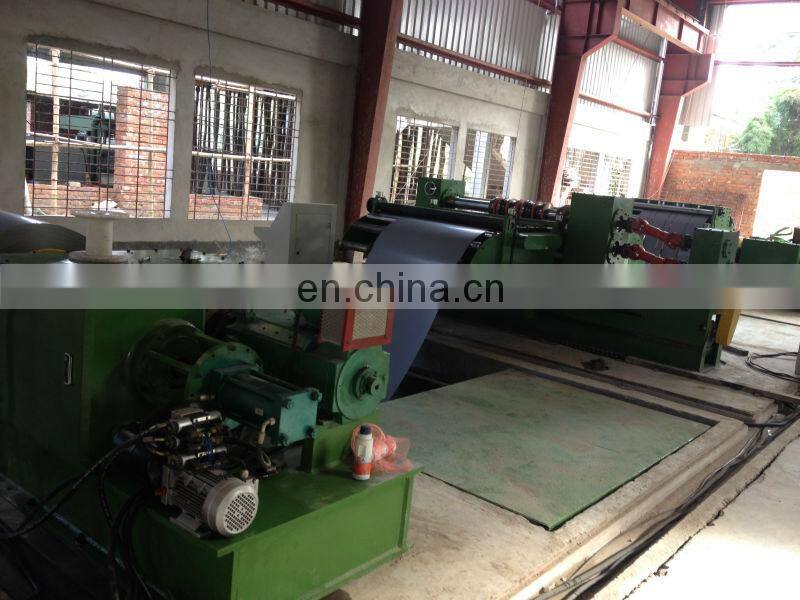

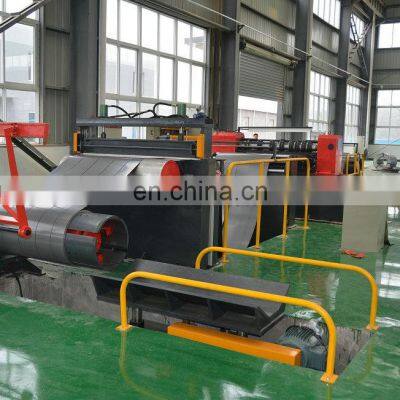

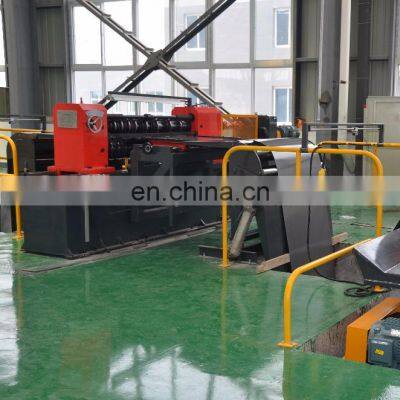

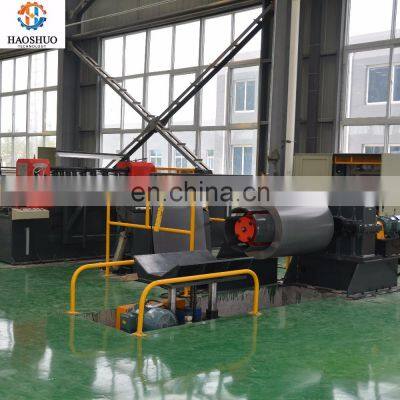

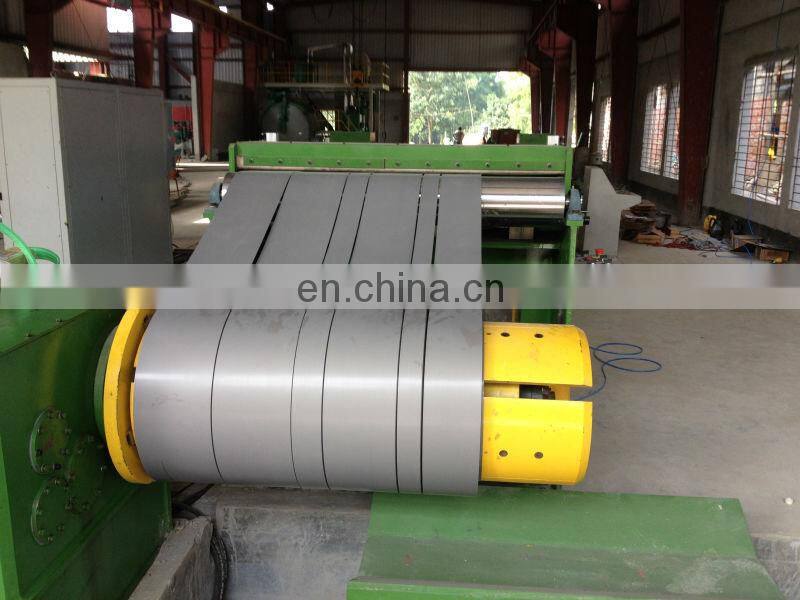

Automatic CRGO Steel Slitting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1995
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cut to Length Line for Transformer Core Cutting, Fully Automatic MachineNegotiableMOQ: 1 -
Electrical Steel Cutting Line for Transformer CoresNegotiableMOQ: 1
-
Corrugated Fin Forming Machine for Transformer Corrugated Tank MakingNegotiableMOQ: 1
-
High Quality Corrugated Tank Forming Machine for Transformer TankNegotiableMOQ: 1
-
Low Voltage Foil Winding Machine for Transformer ManufacturingNegotiableMOQ: 1
Product Description
High Quality silicon steel coil slitting machine
Machine Components:
- One set coil car for coil loading
- One set hydraulic DC powered decoiler(speedadjustable)
- One set coil sheet feeding system
- Two sets roll tables
- One set slitter(VF speed controlling)
- Two sets buffer pit moveable roll tables
- One set tensioning system
- One set hydraulic DC powered recoiler(speedadjustable)
- One set coil car for discharging
- One set controlling cabinet
- Main Technical Data
- Slitting width: 600-1250mm
- Slitting thickness: 0.23-0.5mm
- Slitting strip width: min. 40mm
- Work speed: 0-60m/min adjustable
- Max capacity of decoiler & recoiler: 5tons
- Power supply: as per customer’s request
- Main Elements Origin
- DC motor: Jiangsu Wangpai Z4 motor
- DC controller: PARKER590C
- Inverter: Delta Taiwan
- Pneumatic elements: Airtac Taiwan
- Bearings: NSK Japan
- PLC: Siemens German
- Human-computer interface: Siemens German
Packaging & Shipping

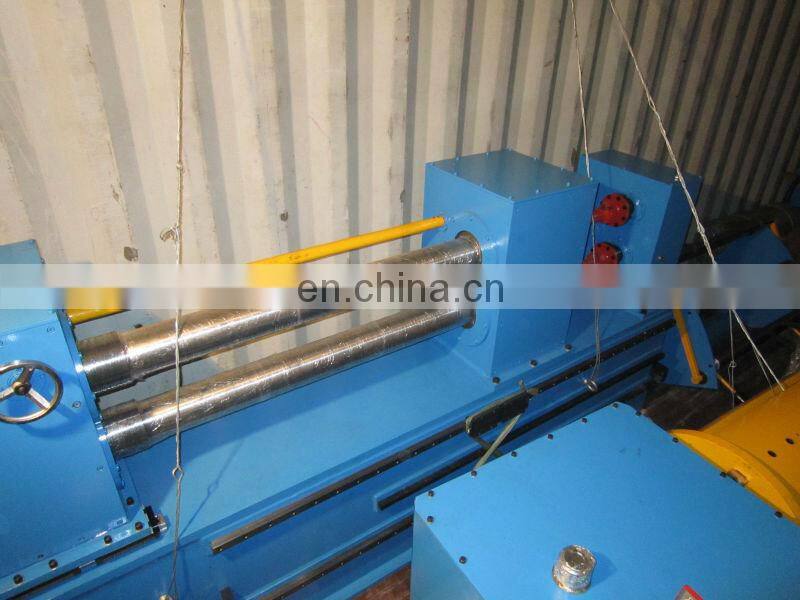

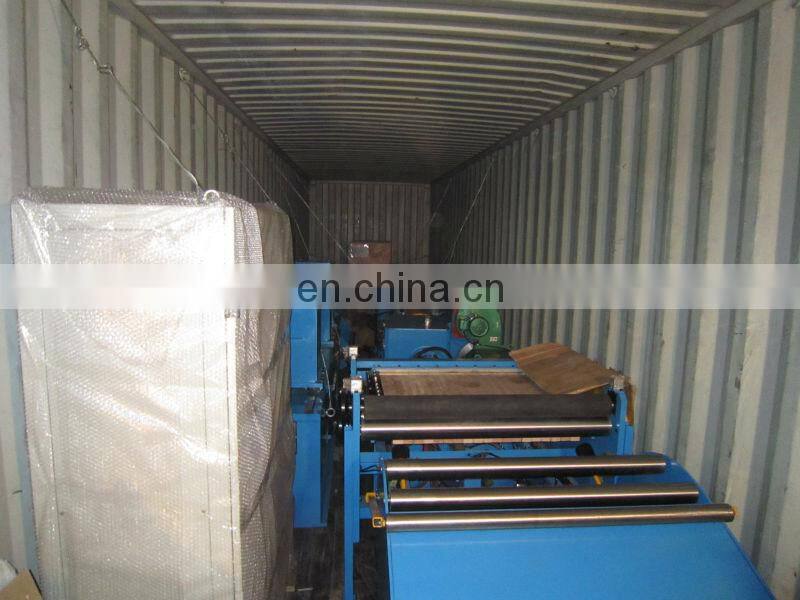

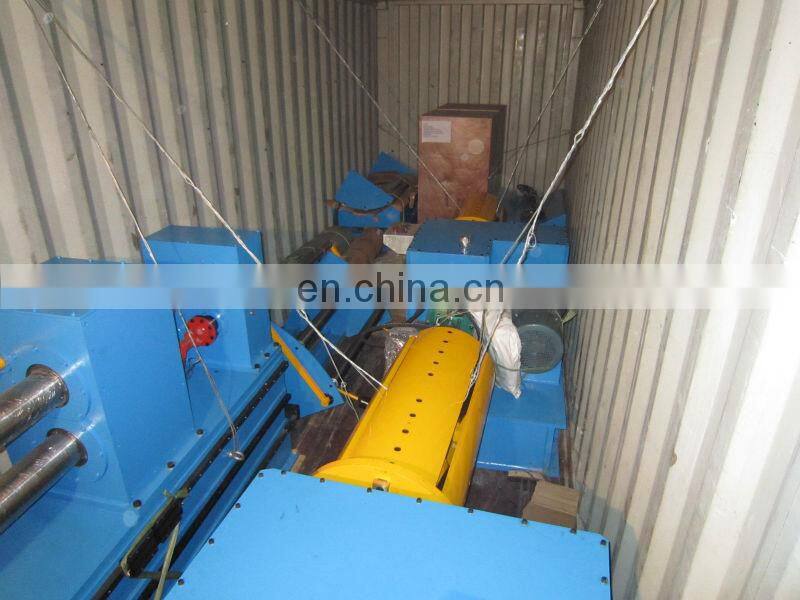

Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes.
Normally one machine needs one 40 feet container for shipping.
Layout
Our Services
- One stop service for customized machine
- Overseas installation & operating training
- One year warranty of the whole machine
- Life-long technical support
FAQ
1. Machine installation & commissioning, training:
1-2 technicians will be dispatched to Buyer’s plant for installation & commissioning. Work period: in 5 days
The expense of round trip tickets, accommodation, safety and interpretation shall be covered by Buyer, additional pay allowance to the technicians.
2. warranty: one year
3. Price basis: FOB or CNF or CIF
