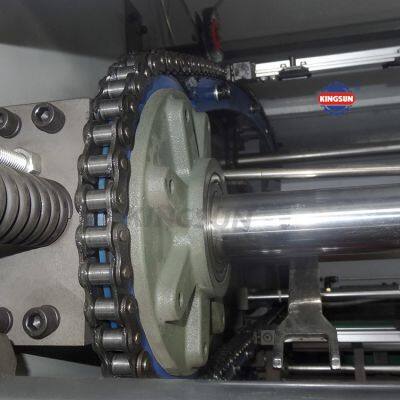

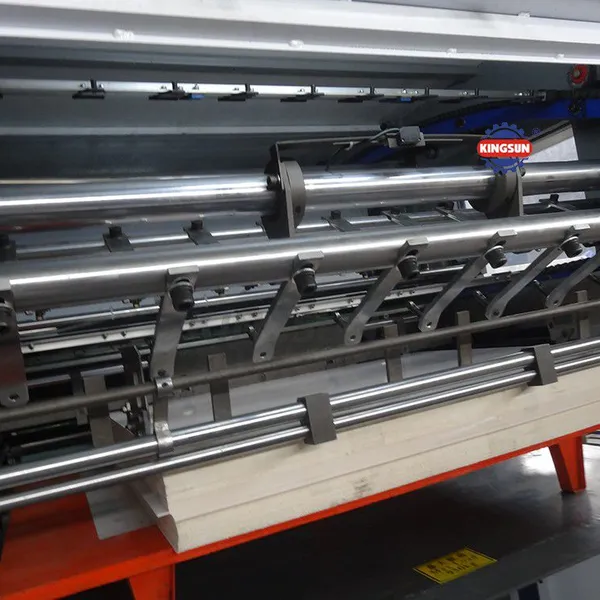

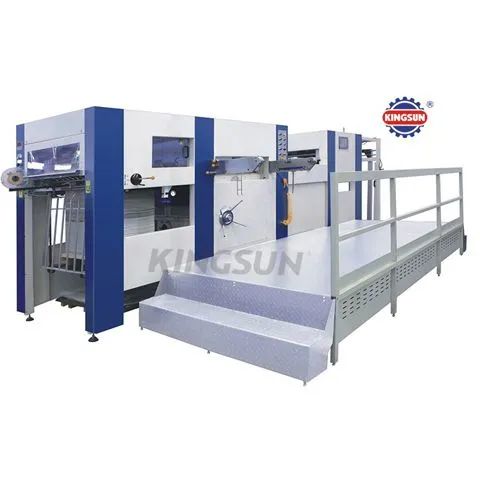

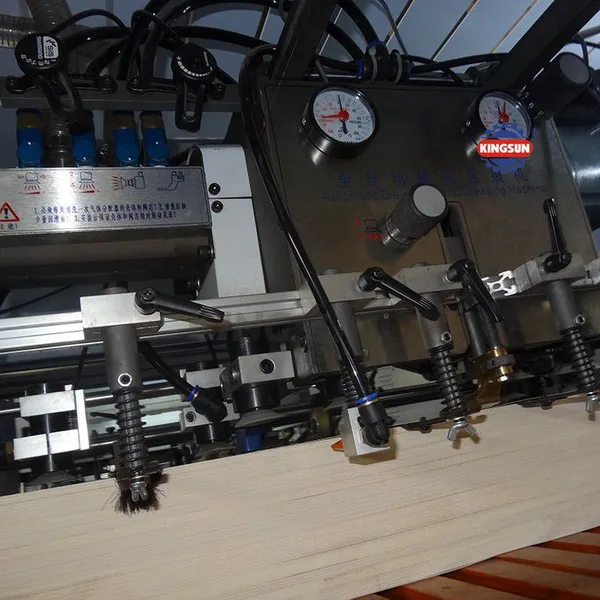

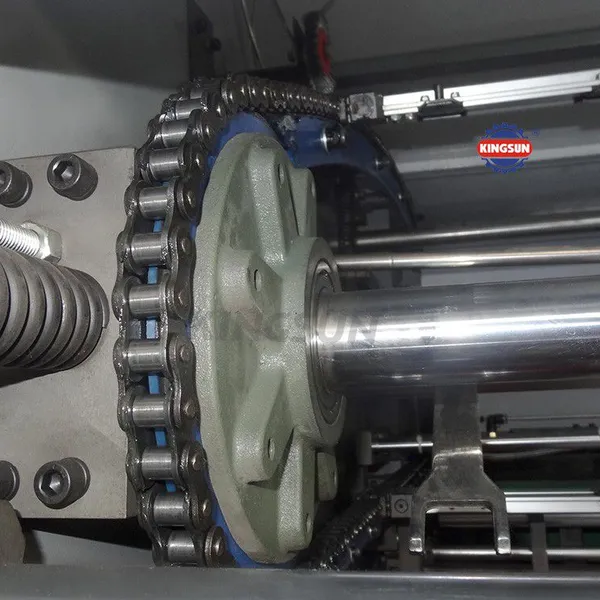

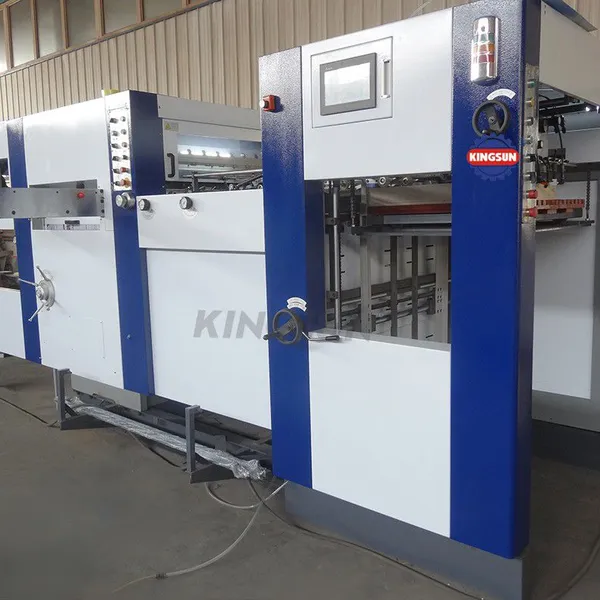

AD Series Flat Bed Fully Automatic Die Cutting Machine
Introduction:
AD series fully automatic die cutting machine is our newly improved type of paper converting system to meet the demands of various end users. It adopts the latest technology of the similar types in the world. The perfect design enables a high stability at all parts of the cutters, which means the lowest cost in maintenance and highest working hours compare of the others same type . The specially designed flat bed ensures the perfect matches of the upper and lower bed even under the different pressure, and also makes the smooth conveying of the paper to meet the high requirements of the customers. The key spare parts are internationally renowned and the main structure parts are all well processed by high precision machining centers, which enable the die cutters to reach its maximum productivity and ensure the excellent performance.
This flat bed automatic die cutter machine is mainly used for the cutting & creasing of folding cartons and corrugated boxes etc.
Machine specifications:
Model |
AD-1100E |
AD-1080E |
AD-1060E |
AD-1020E |
Max. paper size |
1120X780 |
1080X780 |
1060X760mm |
1020X720mm |
Min. paper size |
400X370 |
400X370 |
400X370mm |
400X370mm |
Max. die-cutting size |
1110×770mm |
1070X770 |
1050X750mm |
1010X710mm |
Paper type |
||||
Paper Board |
120-2000g/m2 |
120-2000g/m2 |
120-2000g/m2 |
120-2000g/m2 |
Corrugated Board |
≤5mm |
≤5mm |
≤5mm |
≤5mm |
Height of paper feeding pile |
1500mm |
1500mm |
1500mm |
1500mm |
Height of delivery pile |
1220mm |
1220mm |
1220mm |
1220mm |
Cutting precision |
≤±0.10mm |
≤±0.10mm |
≤±0.10mm |
≤±0.10mm |
Min. paper clipper size |
7mm |
7mm |
7mm |
7mm |
Max. machine speed |
7200s/h |
7200s/h |
7200s/h |
7200s/h |
Max. die-cutting speed |
6500s/h |
6500s/h |
6500s/h |
6500s/h |
Max. die-cutting pressure |
300T |
300T |
300T |
300T |
Power |
17.6KW |
17.6KW |
17.6KW |
17.6KW |
Dimensions(LXWXH) |
7800×4000×2150mm |
7650X3900X2150mm |
6750X3900X2200mm |
6500X3900X2150mm |
Weight |
17.5T |
17T |
16.5T |
16T |
Note: Bigger size also welcome for tailer made.
