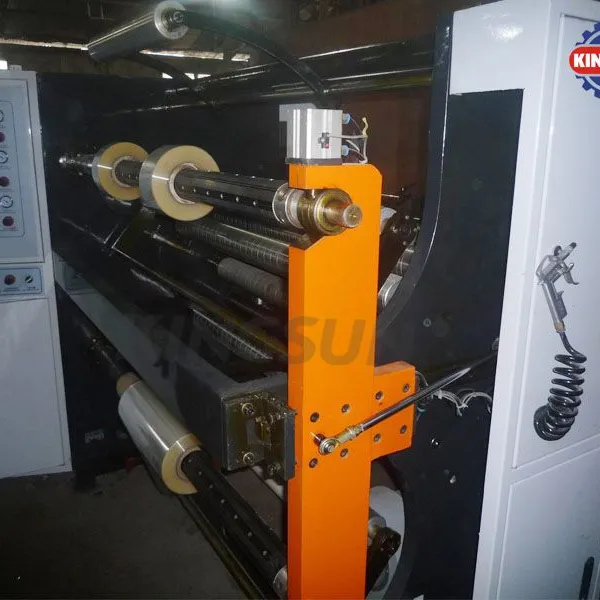

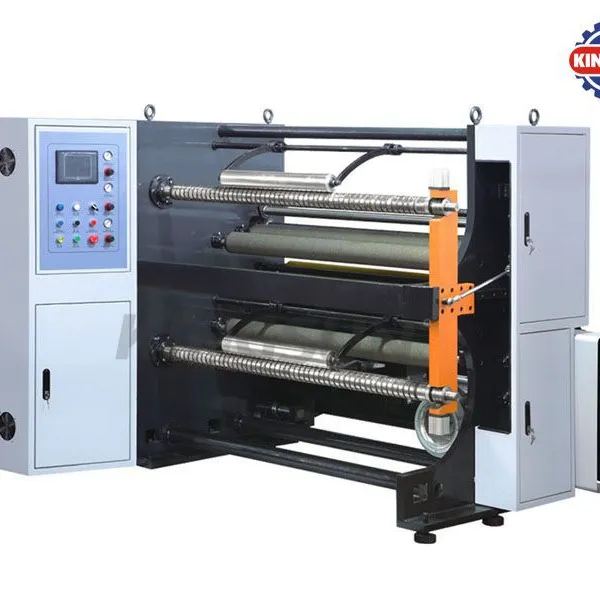

KHQR-A series High Speed Plastic Film Slitting Rewinding Machine
Introduction:
KHQR-A series slitting and rewinding machines are economical model but high speed machines for slitting rewinding double adhesive label paper, laminated film, laminated Al foil, or normal plastic film etc. We welcome the special sizes or materials, for different materials and requirement, the specifications of slitting machine will be some changes.
1) All electric system with PLC central control, HMI setting technical parameters, with English page.
2) Rewinding and unwinding use magnetic clutch and brake, PLC automatic tension control.
3) Unwinding with air shaft loading, with air cylinder for materials lifting.

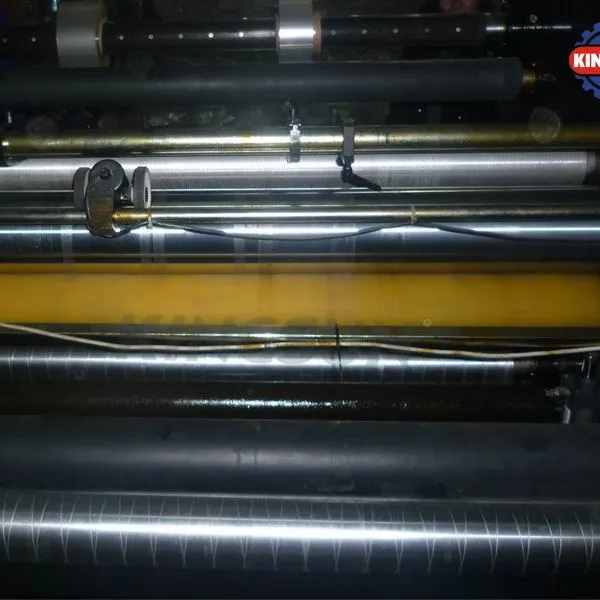

4) With straight knife and circle knife cutting device, rewinding edge side flat and smooth, the edge side has blower to treat the waste.
5) With EPC web guide so can rewinding more accurate.
6) Meter counter for length measuring.
Technical specifications:
Slitting material |
Film 12-180um, PE, PVC film 40um-150um, paper |
Max. unwind diameter |
φ800mm |
Max. rewind diameter |
φ500mm |
Slitting width |
40mm-1300mm |
Rewind paper core ID |
3″ |
Max machine speed |
300m/min |
Machine inner width |
1540mm (depends on models) |
Web guide Precision |
≤0.5mm |
Tension arrange |
2~30kg |
Unwind brake |
5KG |
Main motor |
5 kW(1300model) |
Whole machine power |
8 kW |
Machine size |
2400mm(L) × 3600mm(W) × 1700mm(H) |
Machine weight |
2600kg |

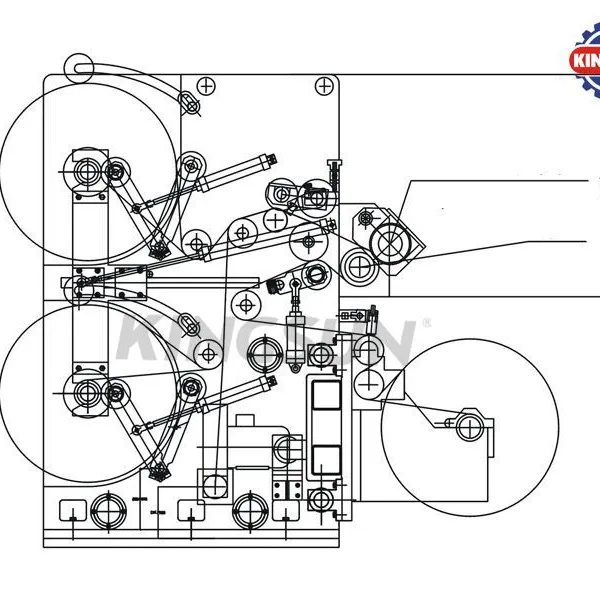

KHQR-A Series Slitting Rewinding Machines Diagrammatic Sketch:
