GDHH Pre-Folding And Crash-Lock Automatic Folder Gluer
- 50 Set / Sets per Month
- Ningbo,China
- T/T L/C
- 40 days
You May Like
Product Details
| Brand Name | KINGSUN | Place of Origin | China | |
| Model Number | GDHH | Certification | CE | |
| Type | Other, Folder gluer machine | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | One Year | Weight | 3000KG | |
| Dimension(L*W*H) | 9200X1100X1300mm | Condition | New | |
| Voltage | 380V | Power(W) | 8KW | |
| Computerized | Yes |
Product Description

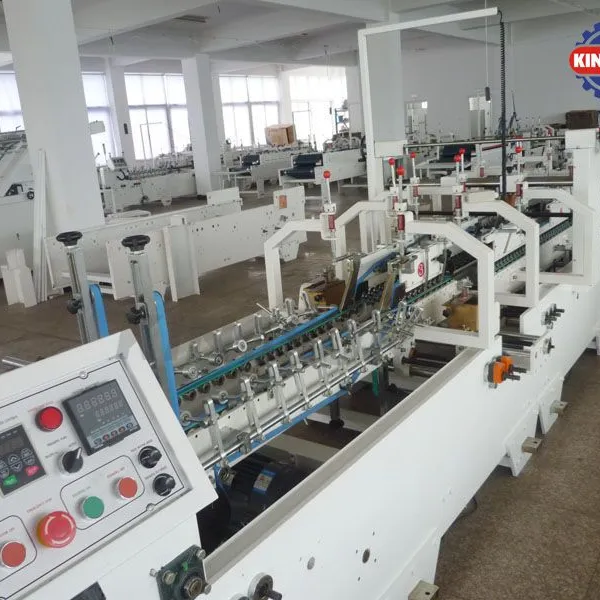

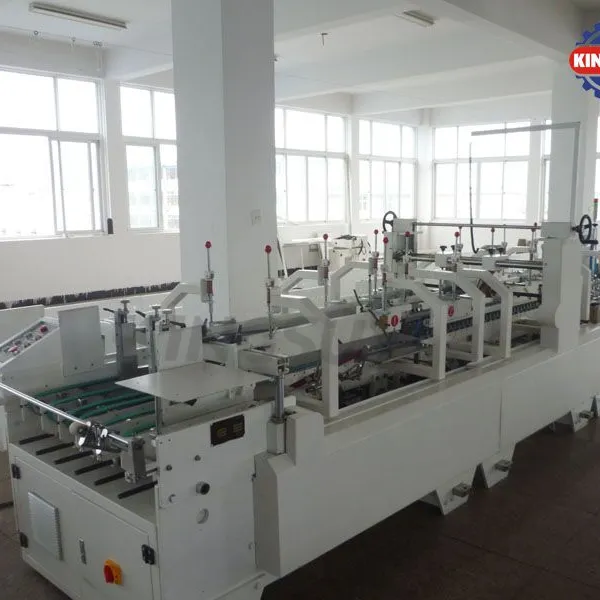

GDHH Pre-folding And Crash-lock Automatic Folder gluer

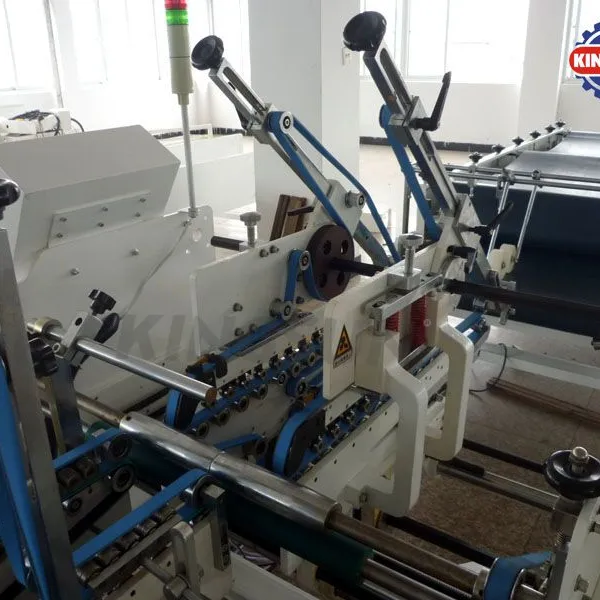

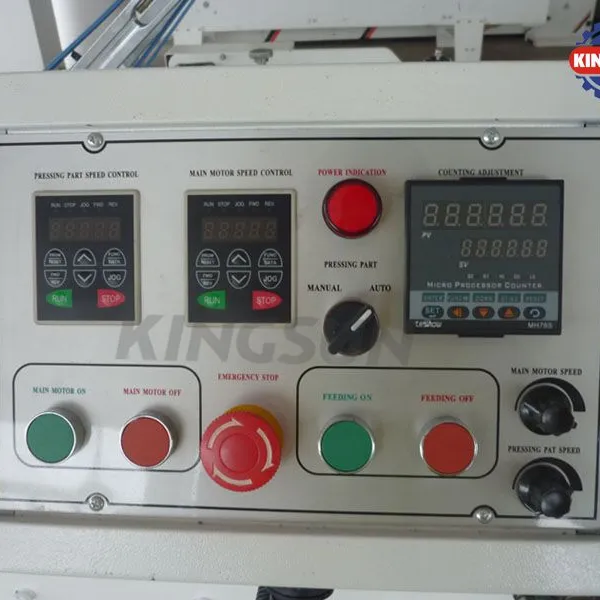

GDHH series automatic folder gluers are kind of four fold and bottom lock carton box making equipment for cartons. In the pre-fold part, 1st fold and 3rd fold can be folded as 180° or 150°, 2nd fold and 4th fold can be formed as 180°. Imported electrical parts and accessories,there is frequency converter in the front and at the backside of machine for the separate operate, it is convenient for paper feeding. With features of high speed and reasonable structure, it is easy for operation and it is widely used for making pharmaceutical box, cosmetic box, daily use goods packing box, etc.
Technical specifications of GDHH series :
Model | GDHH800 | GDHH1200 |
Paper thickness | 220-800g/m2 (depends on paper quality) | 220-800g/m2 |
Paper feeding | Automatic | Automatic |
Fold type | 1 and 3 line 90º, 2 and 4 line 180º | 1 and 3 line 90º, 2 and 4 line 180º |
Gluing mode | One side/two side/bottom glue | One side/two side/bottom glue |
Working speed | 0-220m/min | 0-220m/min |
Power | 8KW/380V | 8KW/380V |
Dimensions | 9200X1100X1300mm | 9200X1300X1300mm |
Box type | Model | A Max | A Min | B Max | B Min | C Min | D Min | F Min |
No crash-lock | GDHH-800 | 700 | 110 | 620 | 110 | 8 | 70 | 51 |
GDHH-1200 | 700 | 110 | 840 | 110 | 8 | 70 | 51 | |
With crash-lock | GDHH-800 | 700 | 160 | 520 | 180 | 9 | 90 | 85 |
GDHH-1200 | 700 | 160 | 800 | 180 | 9 | 90 | 85 |
Kingsun folder gluers with its good reputation for reliable quality and easy for operating, as long as you provide us the carton box sizes need to make , we will suggest our best model for you, even if your boxes are very special type, our engineers also make full efforts to help you to make special device so can well fit your actual products. Don't hesitate to contact Kingsun company now!
