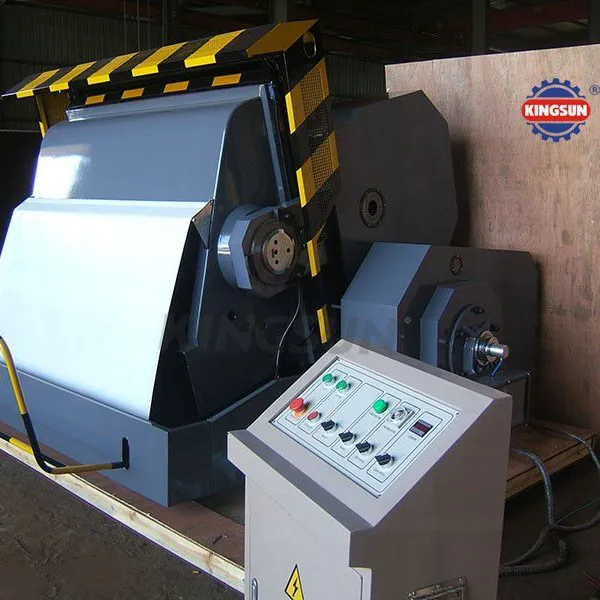

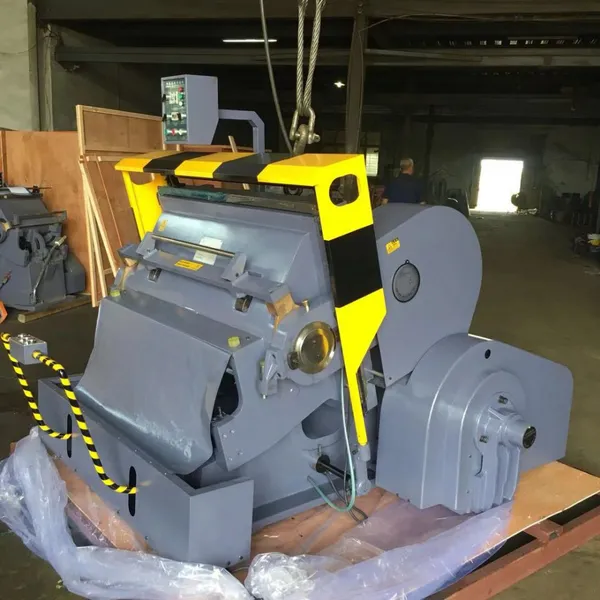

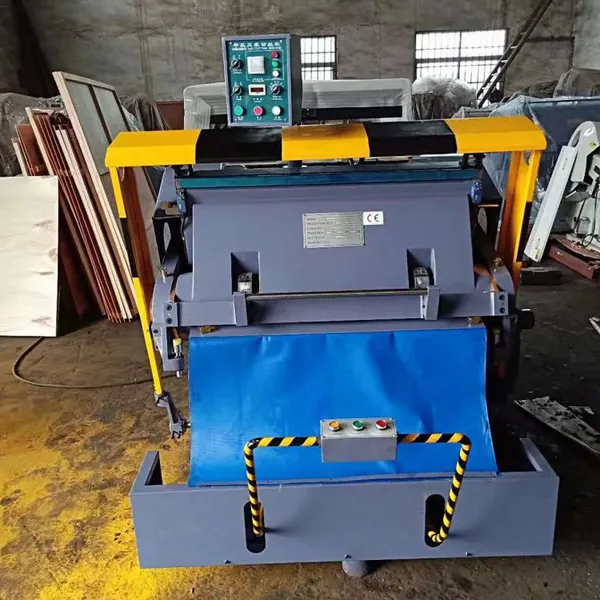

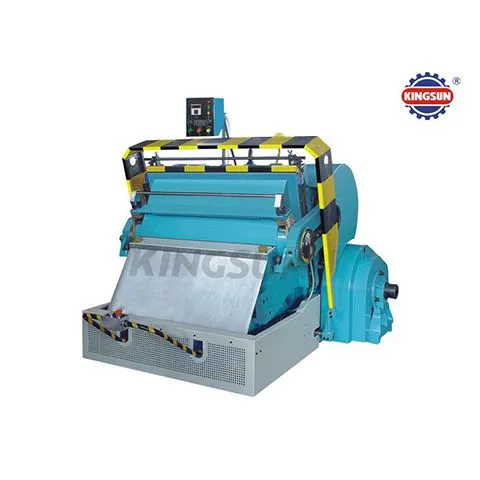

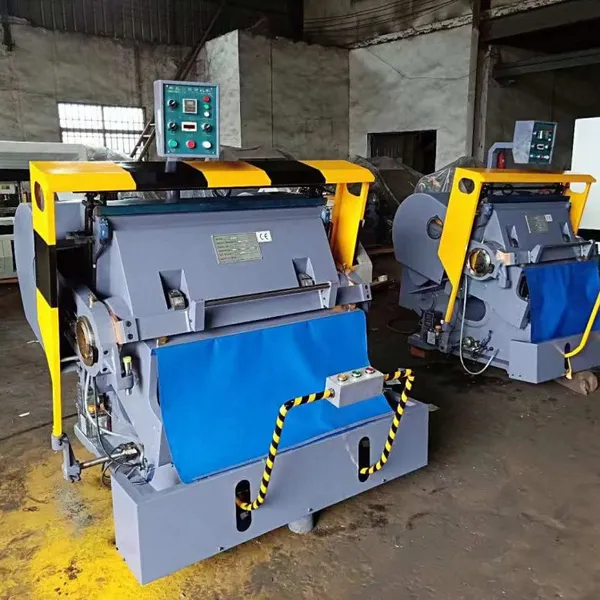

ML Series Die Cutting Creasing Machine

Name: ML Series Die Cutting Creasing Machine
Brand: KINGSUN
SKU: 170583195

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

KINGSUN

Place of Origin:

China

Model Number:

Wenzhou Kingsun Machinery Industrial Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo, China

Delivery Detail:

30 days

Brand Name KINGSUN

Place of Origin China

Model Number ML

After-sales Service Provided Engineers available to service machinery overseas

Condition New

ML Series Die Cutting and Creasing Machine

Features:

1.Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-friction and vibration reducing.

2.Flywheel with big moment of force and large pressure.

3.High strength due to whole iron casting by using high quality material for machine body.

4.Single plate electromagnetic clutch is sensitive and reliable.

5.With functions of single piece, continuous and opening delay operating, dwell range is adjustable from 1-10 seconds.

6.Operating position is reasonably designed, moving-bed can be opened to its optimum.

7.Central lubrication system guarantees fine lubrication and reduces friction.

8.Safety protection system is reliable.

9.Adjustable chase clamp structure can adapt all kind of die mould plate.

10.Easy to operate and maintain.

11.Electric control system is in line with international standard.

12.CE standard type can be made upon request: with all electric components world famous brand.

13.Heating plate as option for die cutting plastic sheet. Bigger size ML-3000 available for special made.

Technical specifications:

Model	Inner chase	Speed strokes/min	Rule length	Weight	Power	Overall size
ML 750	750x520mm	25±3	15m	2000kg	2.2kw	126x135x128cm
ML 930	930x660mm	25±3	25m	3200kg	4 kw	185x165x195cm
ML 1040	1040x720mm	23±3	30m	3500kg	4 kw	185x175x200cm
ML 1100	1100x800mm	23±2	32m	4500kg	4 kw(6p)	210x197x210cm
ML 1200	1200x830mm	20±2	32m	4500kg	5.5 kw	210x200x210cm
ML 1300	1300x920mm	20±2	40m	5600kg	5.5 kw	202x242x215cm
ML 1400	1400x1000mm	18±2	45m	6200kg	7.5 kw	201x240x193cm
ML 1500	1500x1050mm	18±2	48m	7500kg	7.5kw	205x262x220cm
ML 1700	1700x1300mm	16±2	50M	14500kg	11kw	220x280x213cm
ML 1800	1800x1300mm	16±2	52M	15500kg	11kw	234x292x220cm
ML 2000	2000x1400mm	16±2	58M	16500kg	15kw	234x310x220cm
ML 2500	2500x1400mm	13±2	75M	19000kg	18.50kw	234x360x220cm
