Glass Gas Discharge Tubes 500v ~5000v Spark Gaps for Blast Furnace Ignition

The GXH Series of 2-electrode spark gaps are gas discharge tubes, hermetically sealed in a glass/metal envelope. Tubes with a DC breakdown voltage in the range 0.50KV to 5kV are available. This is signified by a numeral or numerals following the type letters and is expressed in hundreds of volts.

Applications:

1. Single-shot pulse generators                 3. Medical lithotripsy

2. Turbine engine ignition circuits             4. High energy switches

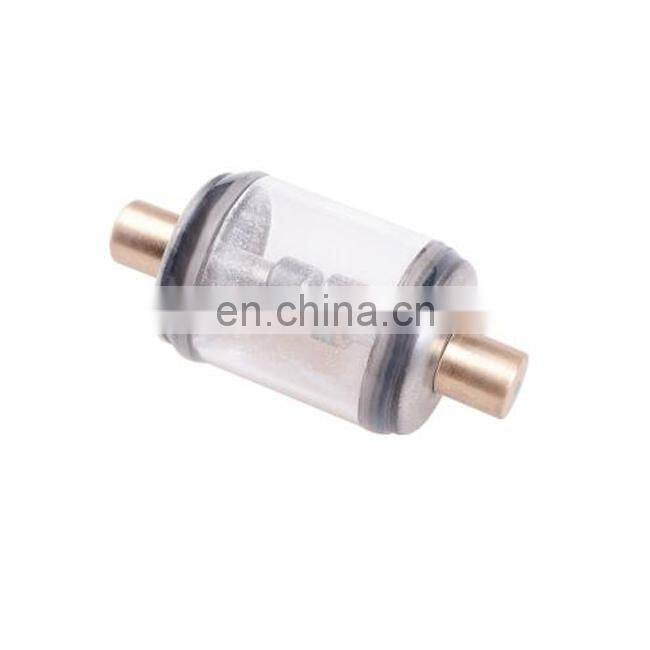

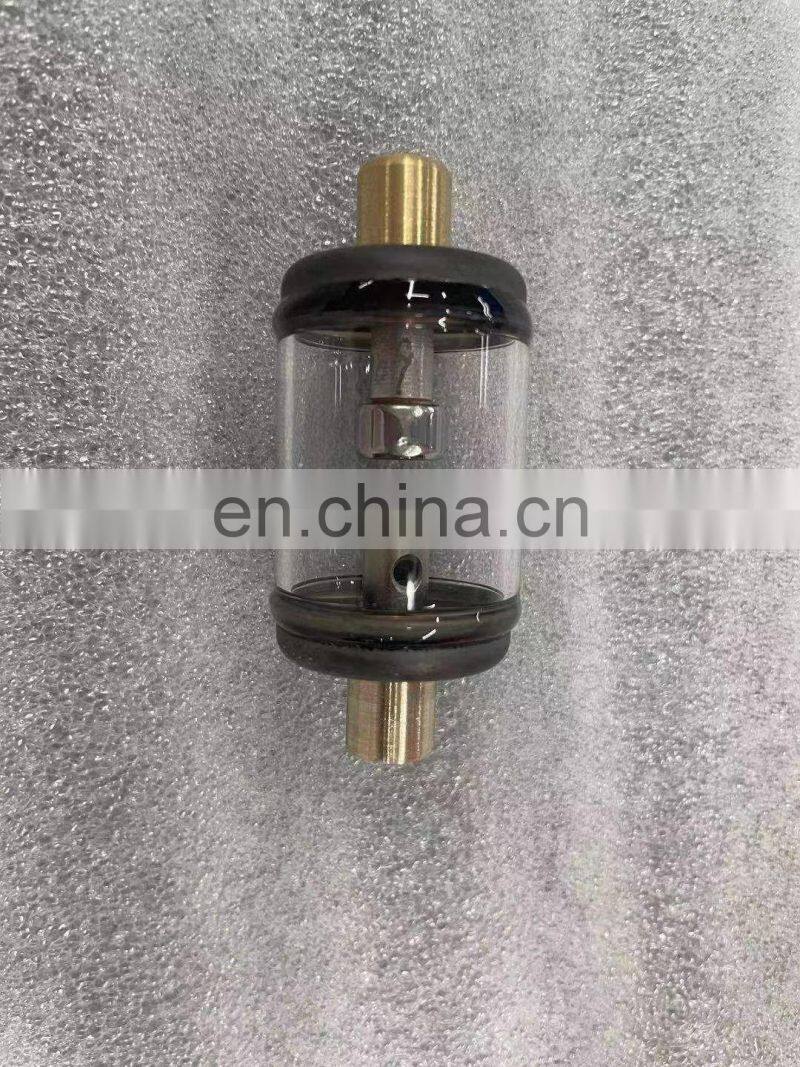

The GXH interface is arc-shaped, the shell is transparent glass, the maximum voltage is 5kV;

the terminal is metal, and the diameter is 9.6mm. m3 thread (0.5mm);

During the manufacturing process of the discharge tube, the discharge tube should be evacuated to remove other gases in the discharge tube, and then the discharge tube should be filled with inert gas to reach the rated discharge voltage of the discharge tube ( Voltage is typically ±10);

about 0.6~0.8 atmospheric pressure.

Each discharge tube is about 0.01μCi, and the radiation dose per 100 discharge tubes is about 0.1μSV/h, the annual exposure safety value of each is 1SV, and the annual effective dose is 0.25mSV.

Note:

μ: that is, micro (micro-), is the prefix of the International System of Units, referring to 10^−6, one millionth.

Ci: radioactivity unit

1SV=1,000mSV=1,000,000μSV

The inside of this product contains powder, and its function is to enhance the uniform distribution of the electric field and the stability of discharge.

The ignition tube has its own box and label:
