smd thyristor electronics

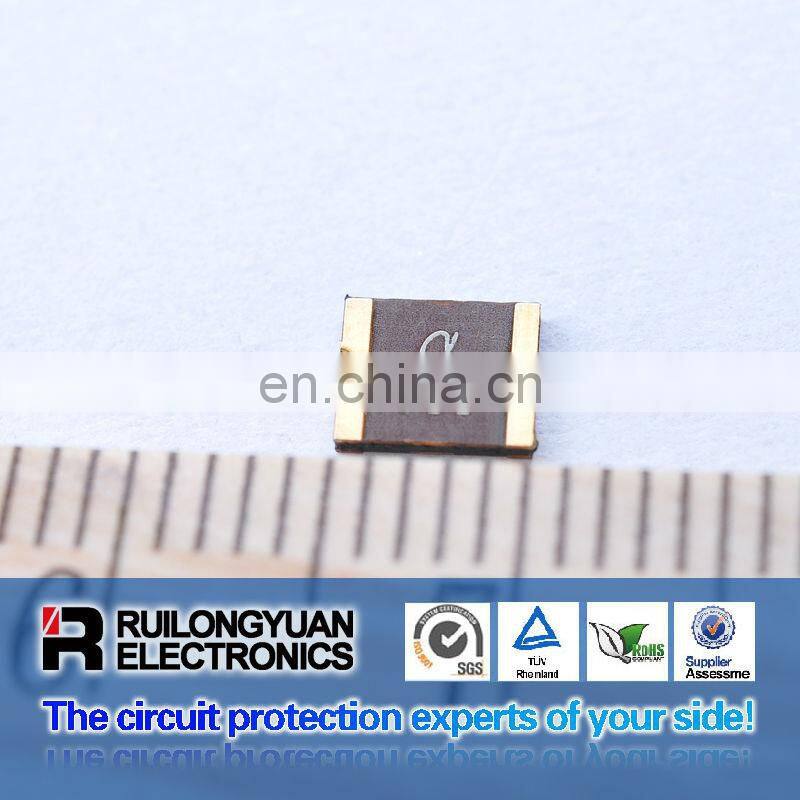

SMD2920P030TF PTC provides surface mount overcurrent protection
The SMD2920 Series PTC provides surface mount overcurrent protection for applications where space is at a
premium and resettable protection is desired.
Features
• Fast response to fault currents
• Compact design saves board space
• Low resistance
• Low-profile
• Compatible with high temperature solders
Application
• Disk drives
• CD-ROMs
• Plug and play protection for motherboards
and peripherals
• Mobile phones - battery and port protection
• Disk drives
• PDAs / digital cameras
• Game console port protection

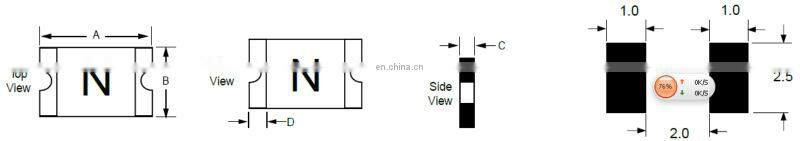

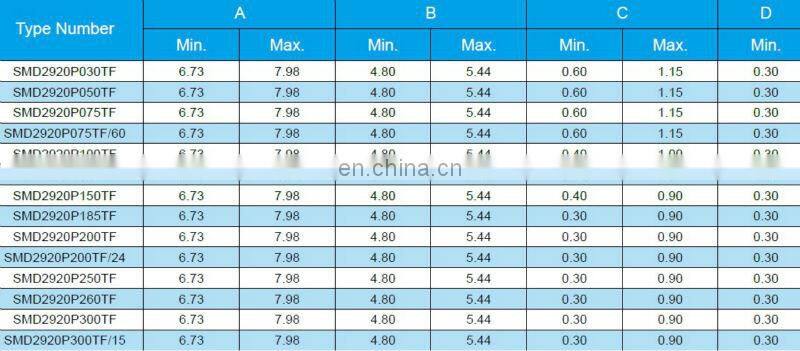

Dimension
MARKING CODE VARIES
WITH AMPERAGE RATING

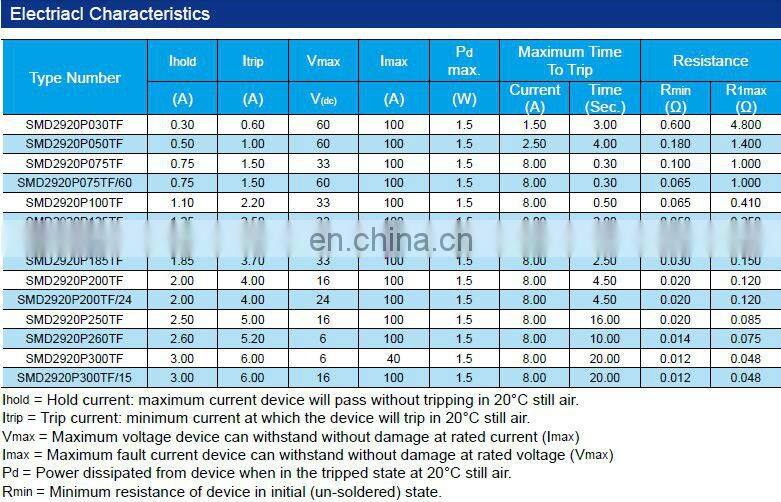

(See Electrical Characteristic Table)
SHOWN IS 1.0AMP RATING
Terms, Delivery Time ,Shipping,&After-Sales Service*
1.Terms:
T/T to our HSBC Bank/Western Union/PayPal.
2.Delivery time:
(1)If in stock ,usually less than 5 working days.
(2)If not,usually about 7-15 working days(all according to your final confirmation)
3.Shipping:
(1)Through your express account,like DHL,UPS,EMS,TNT,Fedex and so on.(DHL is the fastest&cheapest choice)
(2)Use our forwader,as we aslo have super affordable transport fees for you .
(3)We are not responsible for any accidents, delays or other situations related with shipping company. But we will keep focus on the package tracking.
4.After-Sales Serive:
(1)If goods damaged in the transportation or receving the wrong items,pls
send back the bad to us in time,we will resend new good type to you asap.
(2)If the goods exsists function problem,pls contact with us within 30 days.
Pls note all the condition above,the sellers don't bear the freight charge.
If artificially damaged(like use it without doing as our requirement etc.,we won't offer the rechange service.
Our Certificates

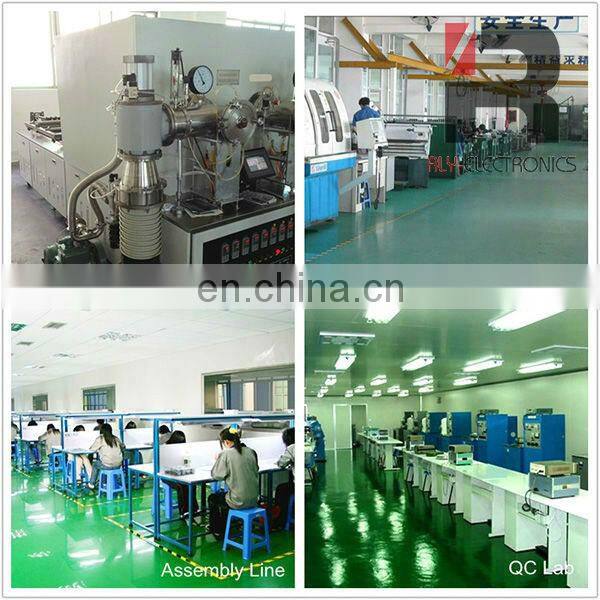

Factory
