Ruilon tal22010 Traffic Lighting Surge Protective Device LED Driver 10kA Lightning Protector for Garage Light IP67

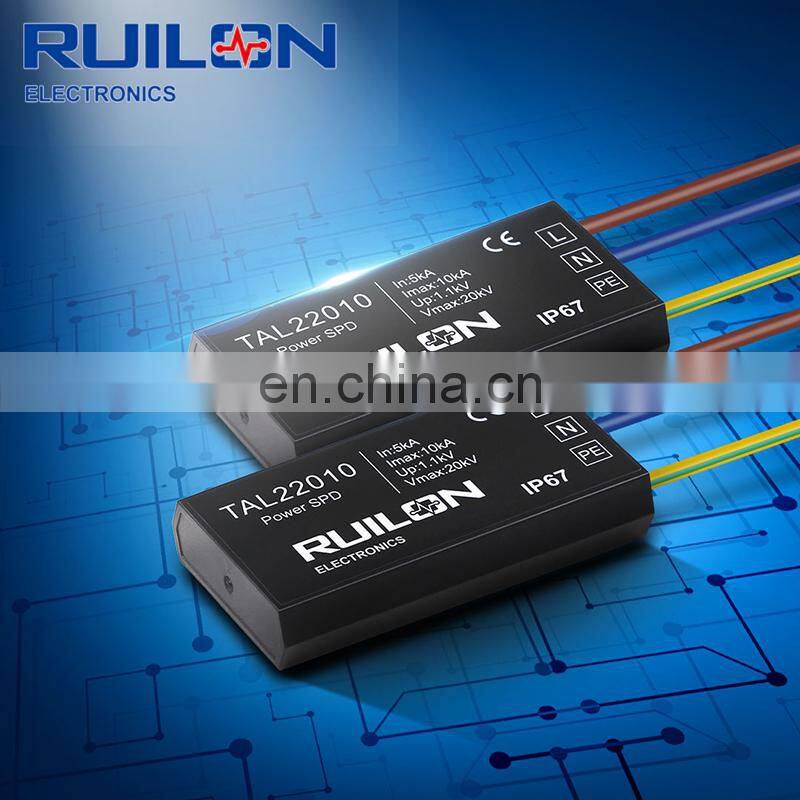

LED Street Light Power Surge Protector--TAL22010















Note:

UVT technology: It is an abbreviation of ultra loew voltage triggering technology. It is a design that absorb the high and low voltage energy of the surge in advance. It can absorb the surge energy more completely, and the residual volatge is low, and the protection effect in the back-end equipment id obvious. this technology is patented by Ruilongyuan.









LED lightning arrester Street lamp AC and DC surge arrester Parallel installation of lightning protection modules
Installation Notes:
1. The product needs to be installed at the front end of the street lamp power supply. Before installation, strip the lightning arrester wire so that it is exposed and partially tinned before connecting the terminals.
2. As shown in the figure: phase wire (L) - brown; neutral wire (N) - blue; ground wire (PE) - yellow-green
3. If there is no wiring terminal, the lightning arrester should be welded with the power inlet wire and the LED power wire end. Welds need to be insulated.







The role of surge protectors:

1. The surge protector can quickly release the lightning surge current to the earth, thereby protecting electrical equipment from lightning strikes.

2. Products with surge protectors can effectively absorb huge sudden energy and protect the connected equipment from damage.

3. Surge protector, also known as lightning protector, is an electronic device that provides safety protection for various electronic equipment, instruments, and communication lines.

4. When a spike current or voltage is suddenly generated in the circuit or communication circuit due to external interference, the surge protector can conduct and shunt in a very short time to prevent the surge from damaging other equipment in the circuit.



Features of Surge Protection Device:

√Nominal discharge voltage: 10kV, 1.2/50μs

√Maximum discharge current: 20kA,8/20μs

√Executive standard: IEC/EN: UL14494th;

√Parallel SPD equipment

√UVT ultra-low voltage technology, more adequate protection;





Note:

TTF refers to the fault critical value of the number of impacts that the product can withstand under the set surge level.

TTF test is a self-set test item set by RUILON laboratory to understand the performance litmit of surge protection products.

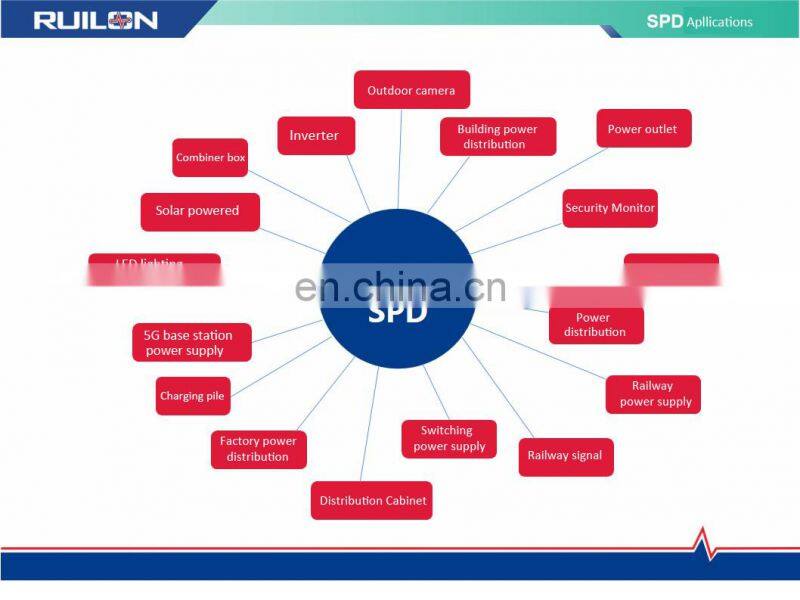

Lightning Protector Applications:



Applications:

1.Outdoor and Commercial LED Lighting           2. Roadway lighting
3. Traffic Signal Lighting                                     4. Digital signage
5. Security power supply                                    6. Wash wall lighting
7. Parking garage/lot lighting                              8. Flood lighting
9. Tunnel lighting                                               10. Street lighting

11. Smart Street Light System                          12. Landscape lighting
13. Car charging pile                                         14. Security monitoring system
15. Lighting drive power                                    16. Industrial Lighting
17. LED lights driver



Features:

Large flow /   Quick response  /  Safe and convenient

Quality, performance, reliability you can trust!



The product is small and comes with L, N and PE cables for easy instation and application, the product's maximum protection lightning current is 20kA, which can withstand 20kV surge voltage shock.







Over the years, our products have won the trust of customers at home and abroad with their beautiful appearance, excellent performance, stable and reliable quality and perfect after-sales service.

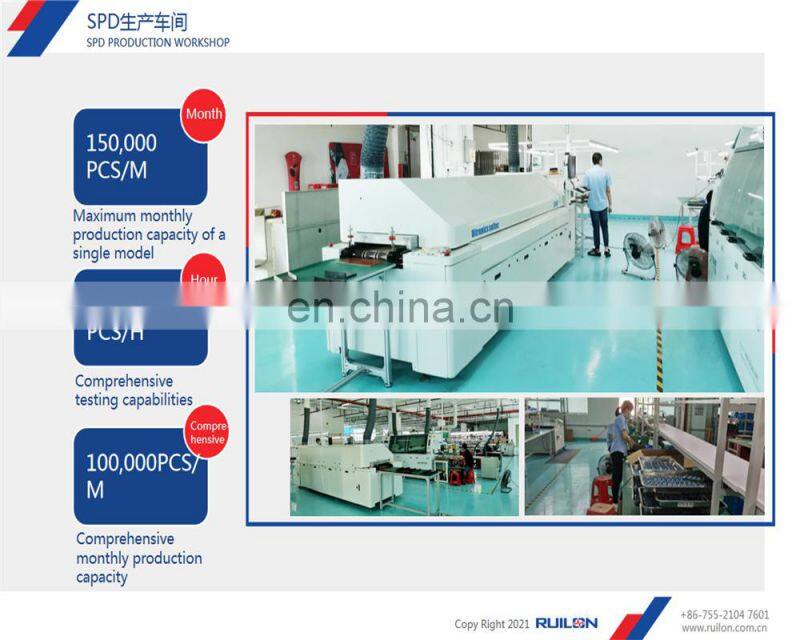

Production craft:



Tangent line (length): 9cm ; 10cm ; 13 cm (customizable).

Diameter: 16AW; 14AW.

Tin-plating on the other end of the line.

With two cables in series.

Wave soldering tin-plating, trimming, fix shaping.

Semi-finished product test, defective product repair.

Laser marking or Labeling.

Finished product testing, functional testing, inspection of appearance before package.





Professional circuit protection manufacturer
Committed to providing global customers with world-renowned overvoltage and overcurrent protection components and complete circuit protection solutions.

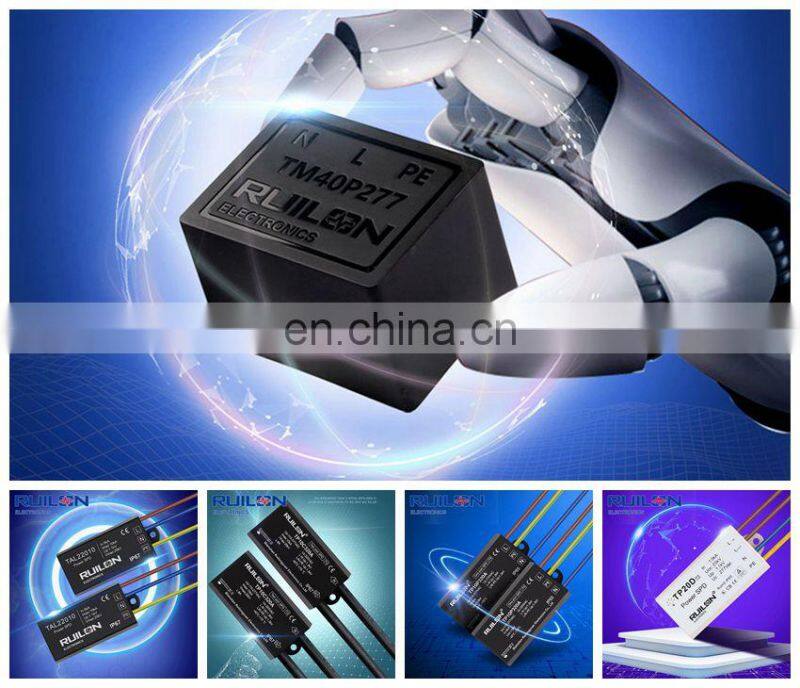

Best selling product:

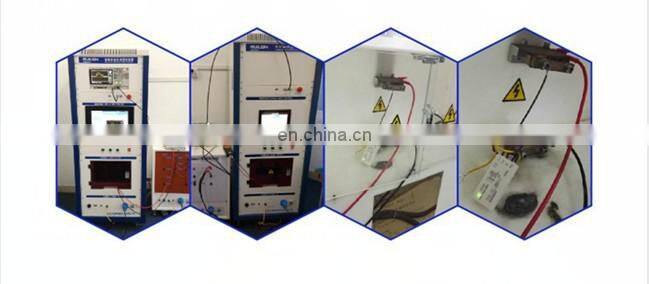

Advanced Testing Laboratory:
The company has a group of high-quality professionals with many years of industry experience, and has trained a group of high-quality young technical backbones, forming a strong and strong technical team, strict inspection, to ensure better quality products.



Certification authority:
This product has been reported by a national testing agency, and the company has passed ISO9001 international quality certification and EU safety CE certification. In September 2021, it will be audited by TÜV (Rheinland).

Officially become a TÜV (Rheinland) witness laboratory. Under the supervision of TÜV Rheinland experts, the testers of the enterprise complete the test, and the test data is submitted to the TÜV certification body Issue a certificate.

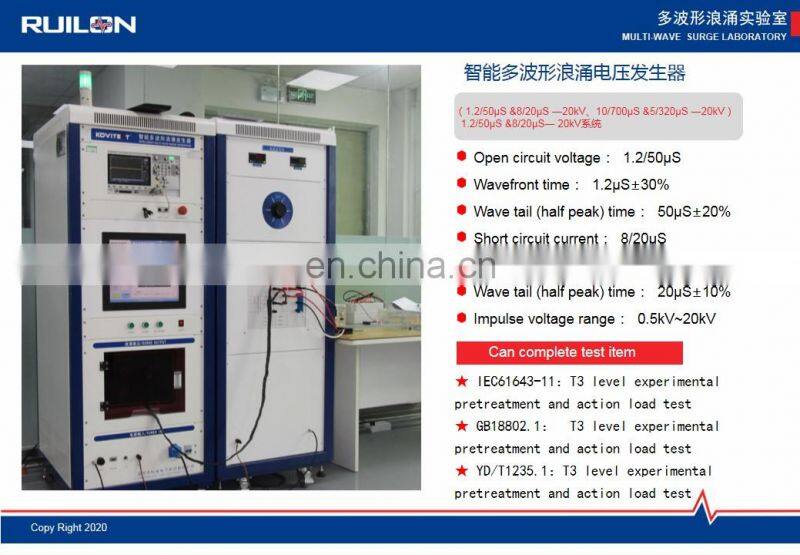

In terms of surge detection, Ruilongyuan Product Compliance Inspection Center (PCIC) can provide action load tests with waveforms such as 10/350μs, 8/20μs, 1.2/50μs;

Reliability environment test; mechanical and electrical performance test; pulse discharge test and other types of surge test items.



Specializing in the research and development, production and sales of surge arresters, the products are widely used in outdoor energy-saving lighting fixtures, industrial equipment power supply systems, distribution boxes, medical equipment, instrumentation, LED street lights, charging piles, etc.



In addition to independent research and development, production and sales, the company can assist customers in product safety certification based on surge lightning protection technology, improve product lightning protection specifications, and can undertake customers

Processing with supplied materials, design and development, production, customization and other services on behalf of customers.
