10kV Surge Protector LED Surge Arrester TAL22010 LED Power Supply Surge Protection Device for Air Conditioner Medical Equipment

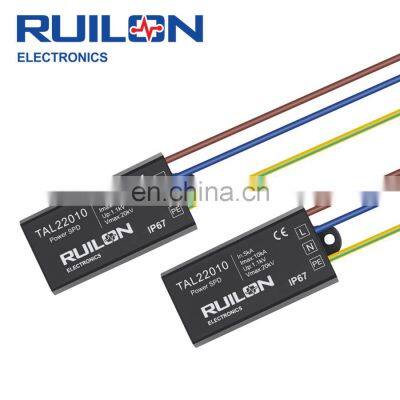

Description of TAL22010 110V-277V 10kA 20kv LED Street Lighting Surge arrester:

       LED Street Lights Power SPD: TAL22010 designed for protecting 220V LED Driver

and could be connected perfectly with its input port, sealed enclosure, waterproof and

dustproof, IP67 protection grade, belongs to Class III power SPD. This SPD use common mode,differential mode,full protection with leakage current and cut the overcurrent capabilities.

      The product size small, 81*13.6*13.5mm (includes mounting holes), using parallel wiring,

attached with L, N and PE cable, very convenient in installing. The maximum discharge

current is 10kA/line, nominal discharge current is 5kA/line, able to withstand voltage 20kV, protection level is below 1.1kV, especially good for protecting LED Street lights from lightning surge damage.

Features of TAL22010 110V-277V 10kA 20kv LED Street Lighting Surge arrester :

• High discharge capacitance,low voltage protection level

• Quick response

• All the core components are from international famous brand Ruilon

• UVT Utra-low voltage technology

• With lead wire

• Utra-thin shape

• IP67 waterproof and dustproof

• Residual voltage: 960V

• Material: ABS765A(94V0)

• Weight(One piece): 68g

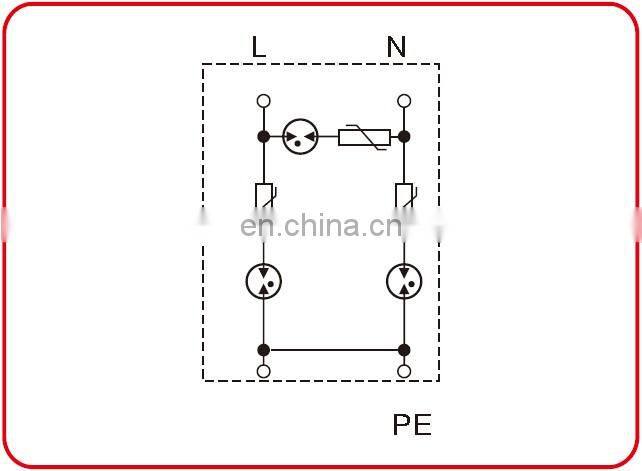

Basic Circuit Diagram of TAL22010 110V-277V 10kA 20kv LED Street Lighting Surge arrester :

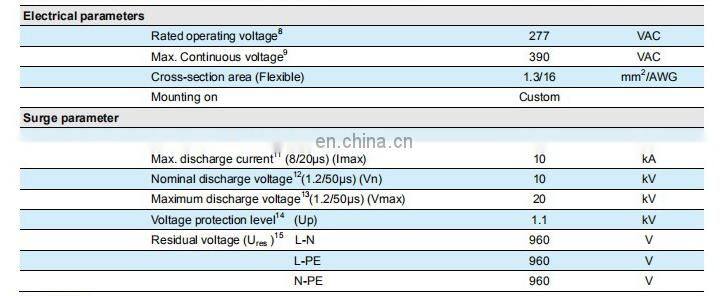

Characteristics of TAL22010 110V-277V 10kA 20kv LED Street Lighting Surge arrester :

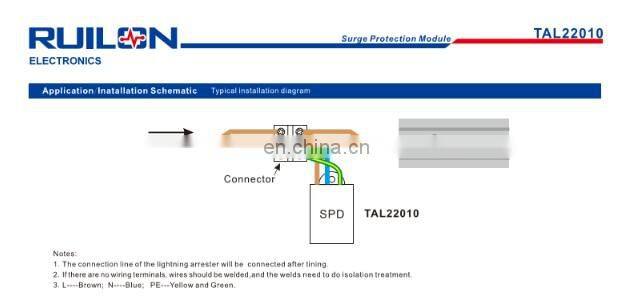

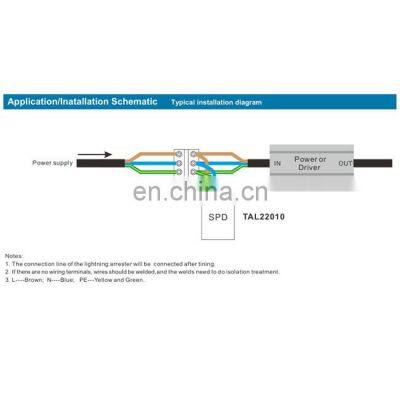

Installation diagram of TAL22010 110V-277V 10kA 20kv LED Street Lighting Surge arrester :

Package details of TAL22010 Surge Protector:

150pcs/ Carton
Package size: 39.5*26.7*28.5CM
G.W: 10.67KG
