Product Description
C3JY24A 3 in 1 Video Monitor Surge Protective Devices
Description :
The 3 in 1 Video monitor lightning arrester is a lightning protection device designed for video monitor which uses the BNC port for monitor signal transmission. The product includes three sections, the network video, power supply and the control system.
The product has applied the ESD and the malfunction selfrecovery, which can provide thorough protection for signal and power supply. By the mean time, with the special touch-ground isolation design, it can avoid the influence of ground crosstalk, thus making the operation more stable and safer.
Features :
• High discharge capacitance,low voltage protection level
• Quick response
• Integrated protection for power supply line and video signal line of the camera
• All the core components are from international famous brand Ruilon
Basic Circuit Diagram:
Characteristics:

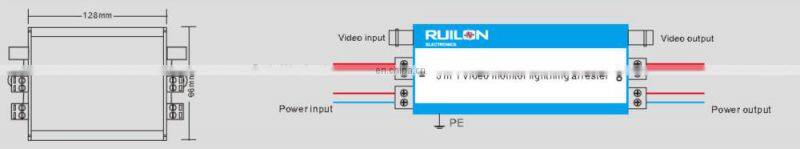

Dimension and Installation diagram :
Payment Options:
Shipping Options:
About Ruilon:
Shenzhen Ruilongyuan Electronics Co.,Ltd. was founded in 1996 and established its own brand RUILON in 2009 after company’s re-integration. We are a high-tech enterprise which specializing in component developing , designing , manufacturing and selling. Under the principles of “making operation standardization, making quality internationalization”, we could meet the market demand of domestic and foreign customers depending on high-qualified enterprise team , first-class product quality , mature technology solutions and first-rate services.
Our Team:
Certifications:
Our Exhibitions:
2014 Hongkong Spring China Sourcing Fair
ELECTRONICS FOR YOU EXPO 2014,New Delhi, India
Why choose us?
Five reasons for you:
1. Dedicated customer team to perform business services such as order follow-up for customers;
2. The FAE team provides customers with one-to-one technical exchanges and program discussions;
3. Have a complete surge test laboratory to provide customers with EMC surge and static electricity full-scale testing and solutions; 4. Provide market support and technical support for dealers;
5. The technical research and development team can customize solutions and products for customers.
Terms, Delivery Time ,Shipping,&After-Sales Service
|
(1) Terms: T/T to our HSBC Bank / Western Union / PayPal. (2) Delivery time: A.If in stock ,usually less than 5 working days. B. If not,usually about 7-15 working days(all according to your final confirmation) (3) Shipping: A. Through your express account, like DHL, UPS, EMS, TNT, Fedex and so on.(DHL is the fastest and cheapest choice) B. Use our forwader,as we aslo have super affordable transport fees for you . (4) After-Sales Service: A. If goods damaged in the transportation or receving the wrong items,pls send back the bad to us in time,we will resend new good type to you asap. B. If the goods exsists function problem,pls contact with us within 30 days. |
