Hot Sale Fibers Paper Drinking Straw Extrusion Machine Aper Core Tube Straw Making Machine Manufacturers
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1990
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Paper Straw Counting Machine Straw Pipe Making Machine Wheat Straw Pulp Plate Making MachineNegotiableMOQ: 1 -
Paste Machine Packaging Automatic Tomato Paste Filling And Packaging Machine Sachet Water Packaging MachineNegotiableMOQ: 1
-
Automatic Honey Mayonnaise Packaging Machine Sachet Peanut Paste Packing MachineNegotiableMOQ: 1
-
80 Bags/Min Automatic Mayonnaise Packaging Machine Tomato Paste Ketchup Sachet Packing MachineNegotiableMOQ: 1
-
Automatic Chili Sauce Packaging Packing Machine Tomato Paste Packing Machine Small Pouch Honey Packing MachineNegotiableMOQ: 1
Product Description
Paper straw making machine is suitable for making variety package, food, industrial etc. Small paper tube. Such as paper drinking straw, Ballpoint pen tube, Yarn tube etc
Product Feature
1. Adopt human-machine operation interface, more convenient for operation;
2. T BarPaper reeling stand , Slitting rolls are easily placed into reel stand.
3. Choose Single or double glue coating unit.
4. Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven).
5. Multi-knife System in-line cutting unit controlled by encoder .,cutting final paper tube directly ,Servo motor control cutting system.
6. Option device : Full stainless steel body.
2. T BarPaper reeling stand , Slitting rolls are easily placed into reel stand.
3. Choose Single or double glue coating unit.
4. Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven).
5. Multi-knife System in-line cutting unit controlled by encoder .,cutting final paper tube directly ,Servo motor control cutting system.
6. Option device : Full stainless steel body.
Working principle

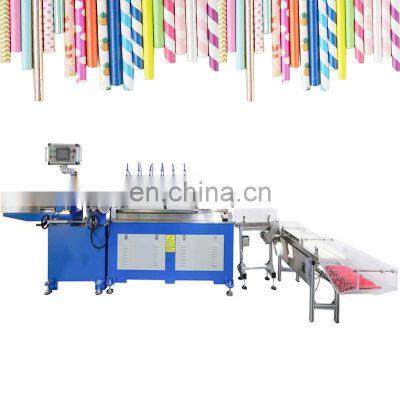

This paper drinking straw making Machine is suitable for producing different sizes of paper straws, such as 6mm; 8mm; 10mm,12mm etc.
[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
Specification
PaperRoll |
2-3 Plies |
Thickness |
0.25-1mm |
Cutting Length |
120-820mm |
Hub Wheel |
Two Head |
Way Of Fixing Shaft |
Clamp |
Production speed |
10-40m/Min (20-30 degree summer 20-40m/min , 0-10 degree Winter 10-25m/min ) |
Way Of Cutting |
58*38*1.5mmCircularCutting Blade |
Way Of Gluing |
Single /DoubleSide |
Type Of Paper Reel Stand |
T-bar |
Blade |
5 Groups |
Paper Reel Stand |
6 PliesT-bar l Paper Reel Stand |
Glue System |
3 pliesindependent glue tank 3 |
Main Motor |
1.5kwx2 +0.75Kwx3 |
Inverter |
3kw Schneider |
Servo Motor |
1.5kw Schneider |
Control System |
Schneider |
Cylinder solenoid valve |
AirTAC |
Operator |
1-2 Persons 1-2 |
Main PartDimension |
3200*1200*1750mm |
Overall Dimension |
7200*4800*1500mm |
Weight |
1500kgs |
Way Of Scraping Glue |
Independent Glue BoxPolyurethane Scraping Blade |
Moving FinishedPaper Straw |
Automatically |
Lubricating Oil |
Automatic Giving |
Details Images

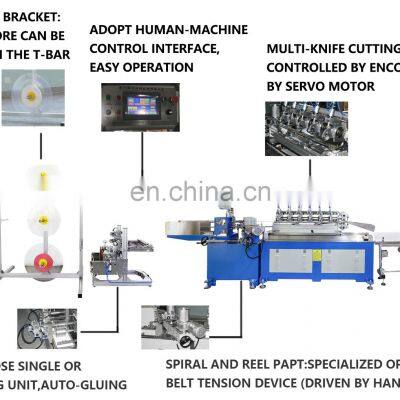

1.The price includes Paper Reel Stand Unit (1 SET), Stainless Steel Glue Unit (1 SET), Paper Straw Forming Unit (1 SET), PaperStraw Cutting Unit and Conveyor Unit (1 SET). 2.It equipped with 6 sets of blades to cut off paper drink straw on line. It is suitable for making 5-12mm diameter paper drink straw. 3.Machine adopts Programming control, all data can be display in the touch screen. 4.T Bar Paper reeling stand , Slitting rolls are easily placed into reel stand 5.Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven) 6.Choose Single or double glue coating unit 7.6 sets of blades system in-line cutting unit controlled by servo motor, no need secondary cutting, save labor and time. 8.Automatically cut, automatically fall pipe, automatically change speed and revert; 9.Paper straw diameter 6 mm, stable production 40 m/min, diameter 8 mm, stable production 35 m/min.
Finished product
Suitable inner diameter of straws made: 5mm - 12mm, only change the mold) (Suitable straw length made: 100mm - 220mm, only adjust blade distance)
