Product Description
Paper straw making machine is suitable for making variety package, food, industrial etc. Small paper tube. Such as paper drinking straw, Ballpoint pen tube, Yarn tube etc

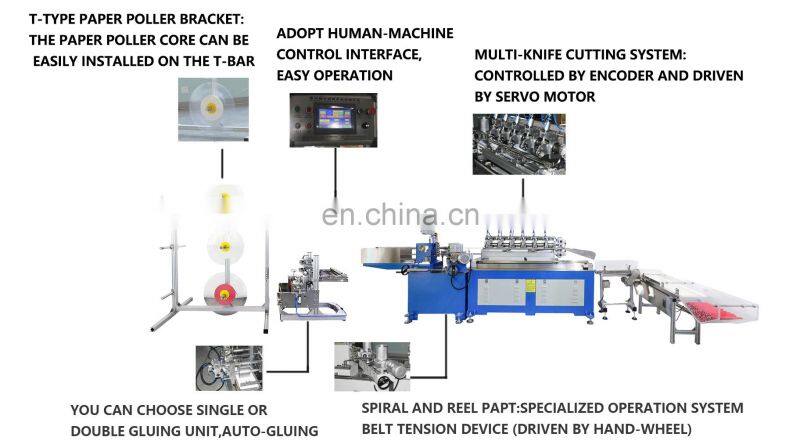

Product Feature
1. Adopt human-machine operation interface, more convenient for operation;
2. T BarPaper reeling stand , Slitting rolls are easily placed into reel stand.
3. Choose Single or double glue coating unit.
4. Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven).
5. Multi-knife System in-line cutting unit controlled by encoder .,cutting final paper tube directly ,Servo motor control cutting system.
6. Option device : Full stainless steel body.

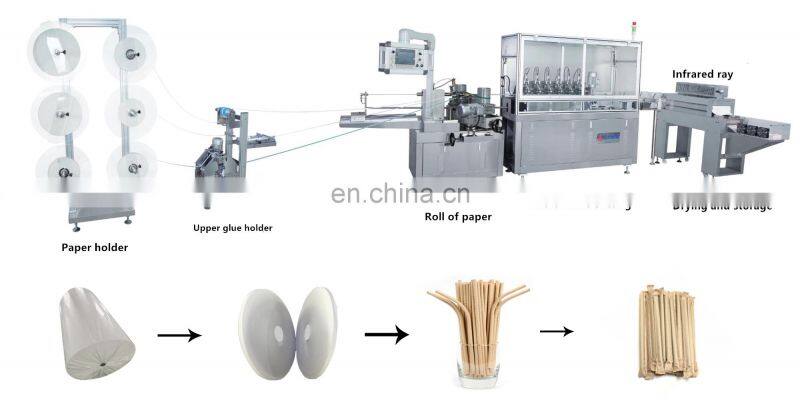

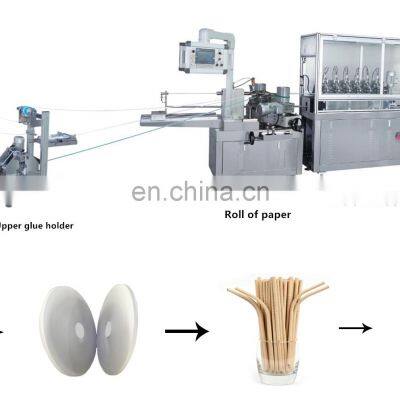

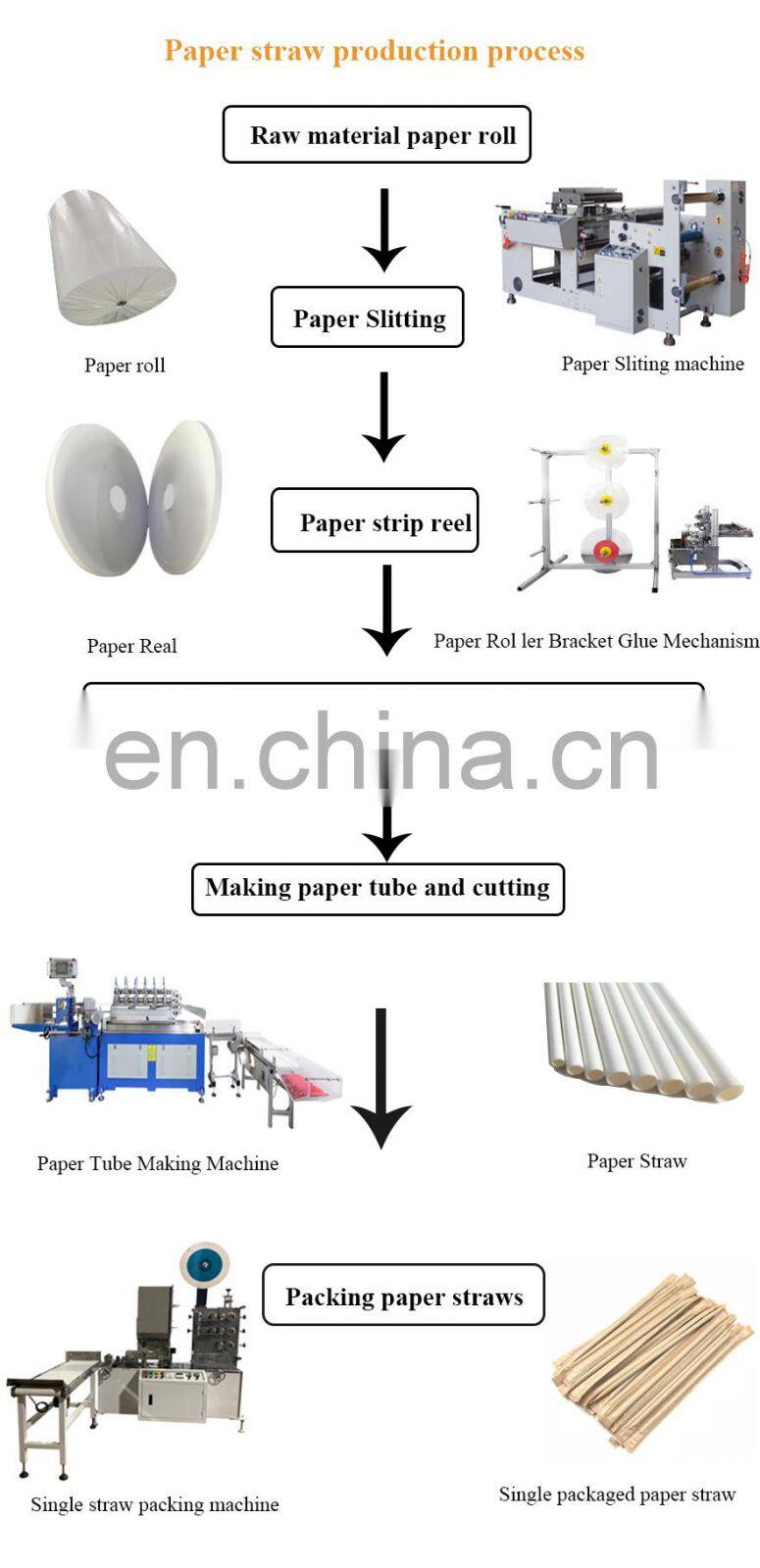

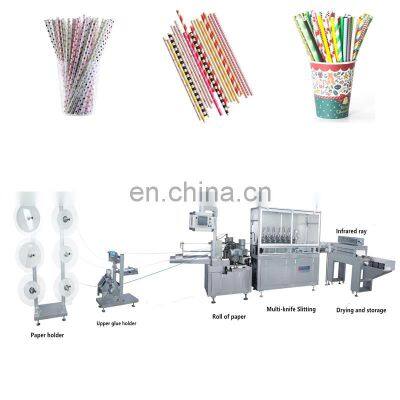

Working principle
This paper drinking straw making Machine is suitable for producing different sizes of paper straws, such as 6mm; 8mm; 10mm,12mm etc. [1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating. [2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency. [3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
Specification
PaperRoll
2-3 Plies
Thickness
0.25-1mm
Cutting Length
120-820mm
Hub Wheel
Two Head
Way Of Fixing Shaft
Clamp
Production speed
10-40m/Min (20-30 degree summer 20-40m/min , 0-10 degree Winter 10-25m/min )
Way Of Cutting
58*38*1.5mmCircularCutting Blade
Way Of Gluing
Single /DoubleSide
Type Of Paper Reel Stand
T-bar
Blade
5 Groups
Paper Reel Stand
6 PliesT-bar l Paper Reel Stand
Glue System
3 pliesindependent glue tank 3
Main Motor
1.5kwx2 +0.75Kwx3
Inverter
3kw Schneider
Servo Motor
1.5kw Schneider
Control System
Schneider
Cylinder solenoid valve
AirTAC
Operator
1-2 Persons 1-2
Main PartDimension
3200*1200*1750mm
Overall Dimension
7200*4800*1500mm
Weight
1500kgs
Way Of Scraping Glue
Independent Glue BoxPolyurethane Scraping Blade
Moving FinishedPaper Straw
Automatically
Lubricating Oil
Automatic Giving

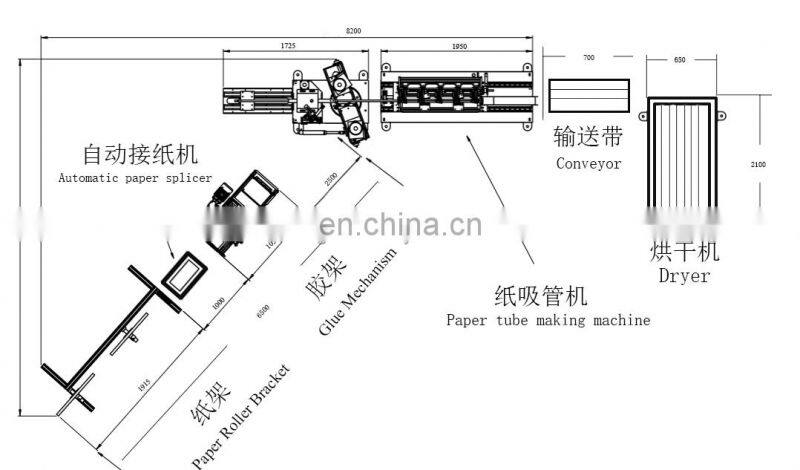

Details Images

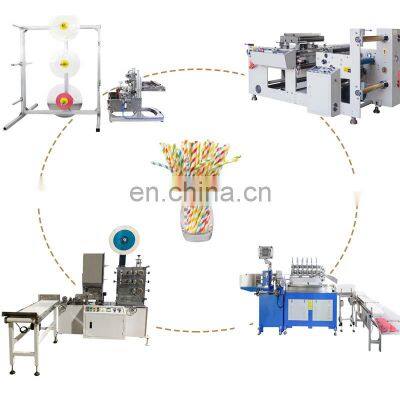

1.The price includes Paper Reel Stand Unit (1 SET), Stainless Steel Glue Unit (1 SET), Paper Straw Forming Unit (1 SET), PaperStraw Cutting Unit and Conveyor Unit (1 SET). 2.It equipped with 6 sets of blades to cut off paper drink straw on line. It is suitable for making 5-12mm diameter paper drink straw. 3.Machine adopts Programming control, all data can be display in the touch screen. 4.T Bar Paper reeling stand , Slitting rolls are easily placed into reel stand 5.Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven) 6.Choose Single or double glue coating unit 7.6 sets of blades system in-line cutting unit controlled by servo motor, no need secondary cutting, save labor and time. 8.Automatically cut, automatically fall pipe, automatically change speed and revert; 9.Paper straw diameter 6 mm, stable production 40 m/min, diameter 8 mm, stable production 35 m/min.

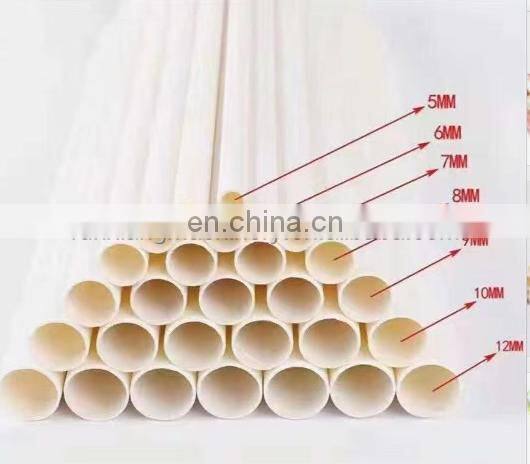

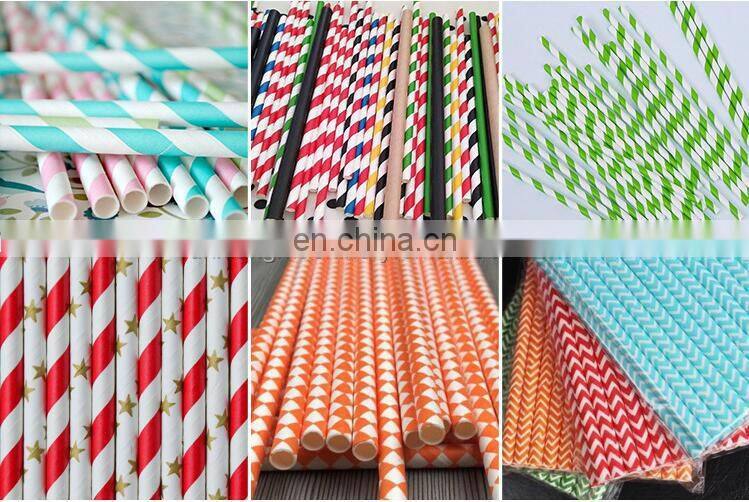

Finished product
Suitable inner diameter of straws made: 5mm - 12mm, only change the mold) (Suitable straw length made: 100mm - 220mm, only adjust blade distance)
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
