Drinking straw making machine
- Perforance of drinking straw making machine
1. XG series machines process PP or PE material into drinking straw.
2.The drinking straw can be made into straight straw,bending straw,spoon straw,single color straw,double color straw and Trichroic straw.
3.This machine is fully automatic form loading material to finished products.Such machine has counting automatically.We can set any quantity products.
4.When the products reach such amount,the machine will start warning function.It is very easy to pack.When the machine break,it will stop automatically in order to break other parts of the machine.
- Technical data of drink straw making machine
Equipment configuration |
Technical data |
screw extruder |
Diameter: 50mm Length-diameter ratio: 28:1 Nitriding depth: 0.4-0.7mm Motor power: 7.5Kw Speed control: Transducer Transducer power 7.5Kw Gearbox: Standard Heating method: Strip heater Heating power: 7.44Kw
|
Cooling water tank |
Adjustment manner: Manual operation Material: Rustless steel Length: 3500mm (Can be choose) Cooling type: Water Drying type: Air blow Vacuum air pump: Can be choose |
Traction and cutting machine |
Traction roll: PU Control method: Manual operation Traction motor power: 0.75Kw Traction speed control: Transducer Cutting method: Disc cutter means Cutting motor power: 0.75Kw Cutting speed control: Transducer
|
Picture of drinking straw making machine
- Picture of straight straw
- Picture of bending straw

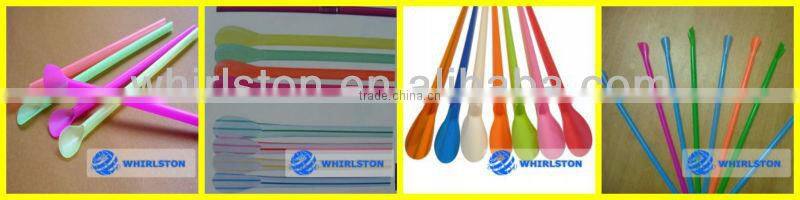

- Picture of Spoon straw

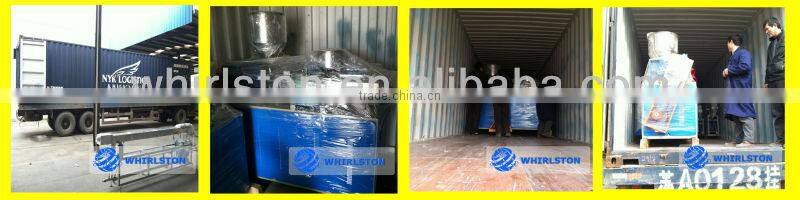

Transportation of drinking straw making machine
Contacts:
Nancy
Zhengzhou Whirlston Trade Co., Ltd.
Tel /Fax:0086-371-65956636
Mobiel Phone:0086-15638124617
Website: www.whirston.en.china.cn
Skype:Nancyzxd24
Send Inquiry to This Supplier
