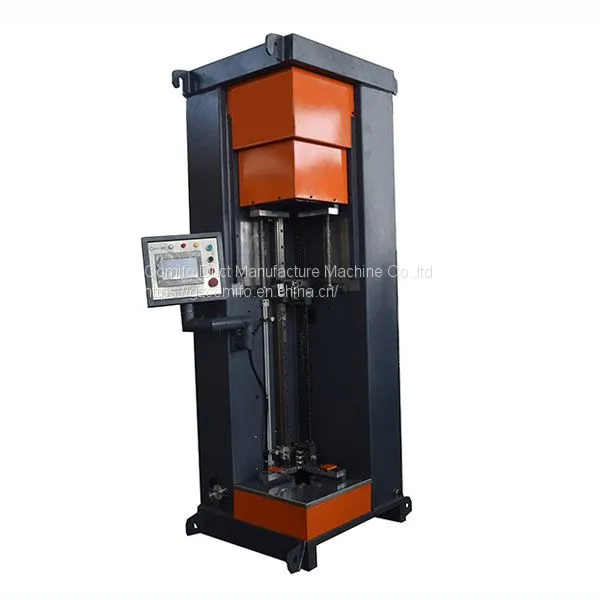

Vertical Duct Seam Closing Machine

Model No.: VWSC-1600

Style: Verical

Thickness Range: 0.4-1.2mm

Duct Length: 1200-1550mm

Speed: 24m/min(78 FPM)

Min.Order Quantity: 1 Set

Supply Ability: 10 Sets per Month

Port: GUANGZHOU PORT,SHENZHEN PORT

Payment Terms: T/T,L/C

Vertical duct seam closing machine Products Information

Generally,three different seams are common in the industry to connect the corners of the ducts:button lock seam,Pittsburgh seam and Duct seam.Button snap lock and Pittsburgh lock can be produced on the Comifo lock forming machines.The pittsburgh seam machine shows much better results and can also be used for a higher pressure.

Vertical duct seam locking machine is what we highly recommend.Pittsburgh joint is commonly used to join the seams of metal ducts. Seam closing has traditionally been accomplished by manually hammering the margin of the seam against the duct wall (peening). Disadvantages of such peening include the time required and the almost intolerable noise produced.

The latest design in seaming technology is now available. At the Pittsburgh joint, the individual seams are called Pittsburgh seam(pittsburgh lock) and standing seam(right angle flange). On a Pittsburgh joint, the operator pushes the standing seam into the Pittsburgh seam, fastens them to each other and closes the joint on a seam machine.

Vertical duct seam closing machine Configuration

Comifo is one of the most professional duct machines manufacturers, we provide ventilation duct machine, tdf machine, duct seaming machine, seam closer, pittsburgh seam closer, flange forming machine, etc. Contact us to know the price of duct machine.
