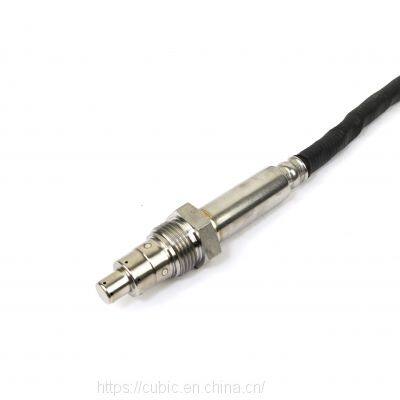

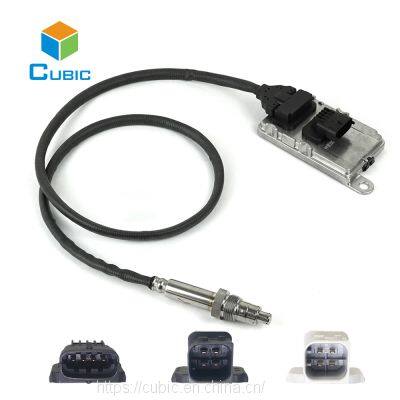

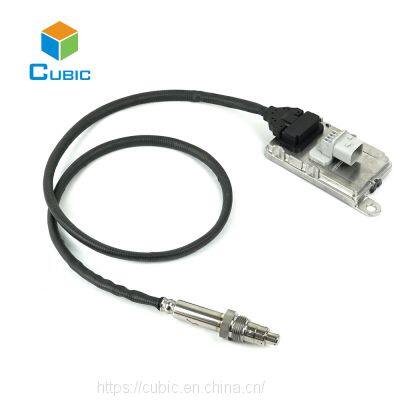

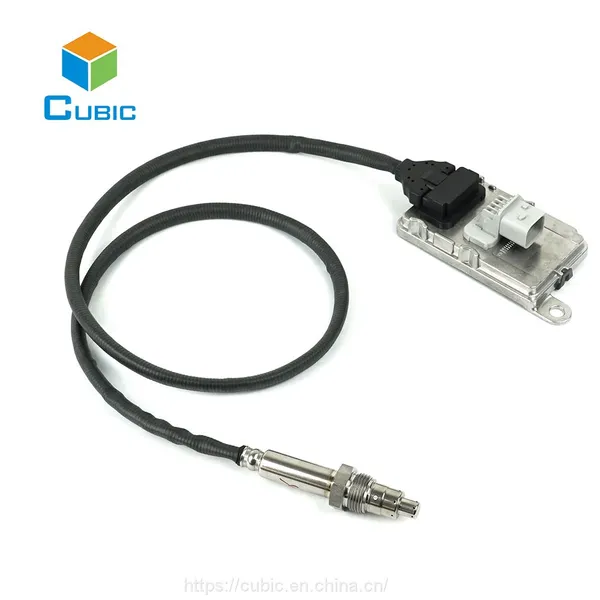

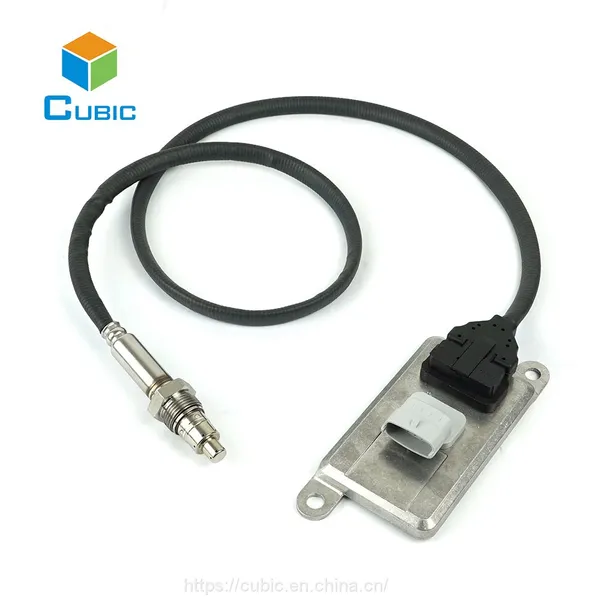

5WK96615F Truck NOX Sensor For Iveco 5801754015 24V Nitrogen Oxide Sensor For Diesel Engine

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Cubic		Place of Origin	China
Model Number	NOx Sensor		Type	Oxygen Sensor

Product Description

Introduction

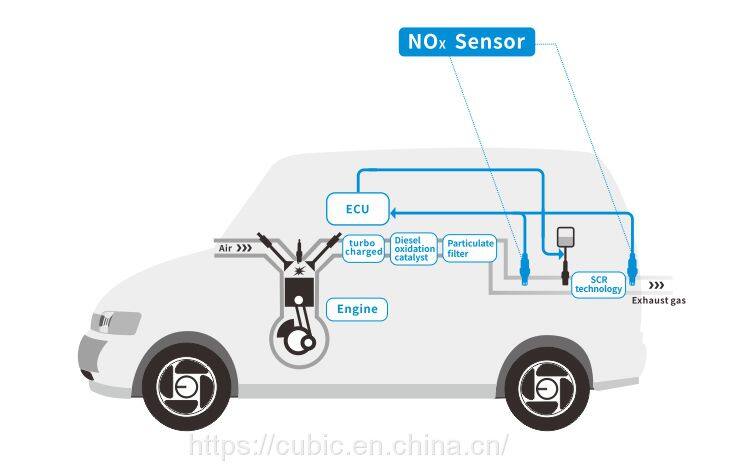

The NOx sensor used for catalyst management in vehicles with gasoline or diesel engines. The NOx sensor consists of a ceramic sensor element and an electronic control unit (ECU). The NOx sensor measures the NOx concentration, air/fuel ratio (A/F ratio) and equilibrium oxygen partial pressure in the exhaust gas of combustion engines (gasoline and diesel).

Features

1.Independent R&D and production of chips

2.Covering multiple series of car models

3.Meet the requirements of stable sensor signals, high accuracy and long service life under various atmosphere environments during vehicle driving

Specifications

Measurement Range	0-1500ppm
Accuracy	<100 ppm: ±10[ppm] ≥100 ppm: ±10[%]
Exhaust Gas Temperature	≤800°C
Exhaust Pressure	≤2.5bar
Storage Temperature	ECU: -40℃-115℃ Unpowered: -40℃-95℃
Power Supply	12V/24V
Typical Supply Current	600mA
Maximum Heating Current	20A
Concentration	NOx: 0-1500ppm; Oxygen: 0~21%;
Response Time Ƭ33−66%	NOx: 1200ms; Oxygen: 1000ms;
Light-off Time	Nox<100 s (fresh) ;Oxygen <80s;

OE Code List

No.	Part Number	Reference Number	Parameters
1	5WK96616F	A0091533628/005/61537328	24V 590mm
2	5WK96642B	A0081539828/004/A0101539328/001	24V 590mm
3	5WK96652B	A0081539928	24V 590mm
4	5WK96682C	A0009053503	12V 590mm
5	5WK96682D	A0009053503-210902	12V 590mm
6	5WK96682F	A0009053606	12V 590mm
7	5WK96683D	A0009053603	12V 590mm
8	5WK96683E	A0009057100	12V 590mm
9	5WK96683F	A009053706	12V 590mm
10	5WK97329A	A0101531428/003	12V 590mm
11	5WK97332A	A0101531728/003	12V 445mm
12	5WK97332A	A0101531728	24V 890mm
13	5WK97338A	A0101532228/0002	12V 590mm
14	5WK97339A	A0101532328	12V 590mm
15	5WK97341A	A0101531928	12V 590mm
16	5WK96612F	2296799 1872080 2247379	24V 890mm
17	5WK96679	2296798	24V 890mm
18	5WK97400	2294290/2064768/2247380/2296800	24V 890mm
19	5WK97401	2294291/2064769/2247381/2296801	24V 1143mm
20	5WK96618D	51154080015	24V 590mm
21	5WK96721B	51154080016	24V 890mm
22	5WK96722B	51154080008 51154080017	24V 890mm
23	5WK96783A	51154080011	24V 420mm
24	5WK96783B	51154080011 51154080018	24V 420mm
25	5WK96790B	51154080012 51154080019	24V 590mm
26	5WK96605C	20873395	12V 590mm
27	5WK96717A	21984358	24V 890mm
28	5WK96717B	22827993 22219283	24V 590mm
29	5WK96718B	22219283	24V 890mm
30	5WK97366	22303391/A2C93782000-01	12V 590mm
31	5WK97367	21479638/21567764/22303390	12V 590mm
32	5WK97368	22827991/7422827991/A2C93782700	24V 590mm
33	5WK97371	22827993/22219283/20873395	24V 590mm
34	5WK97372	22827995	24V 890mm
35	5WK97373	22827992	24V 890mm
36	5WK96615F	5801754015	24V 890mm
37	5WK96711C	84414466	24V 890mm
38	5WK96720A	5801777219	24V 890mm
39	5WK96733B	5801754016	24V 890mm
40	5WK96775A	5801754014	24V 890mm
41	5WK96619D	2011648/ 1793378/ 1836059	12V 795mm
42	5WK96626B	1836061	24V 490mm
43	5WK96626C	2011650/1793380/1836061	24V 890mm
44	5WK96628C	1836060/2011649/1793379	24V 890mm
45	5WK96661D	2006245	24V 490mm
46	5WK96675A	2894940/2871979/4984577/4954222/1705572	24V 590mm
47	5WK96759C	4326864/2006246	12V 490mm
48	5WK97344B	2006243	24V 890mm
49	5WK97348A	4326769/A045H141	24V 590mm
50	5WK96693A	2872298 2894946RX	24V 890mm
51	5WK96614I	5801363754	24V 590mm
52	5WK96651A	05149216AB	12V 590mm
53	5WK96672A	2894943 2894943RX	12V 890mm
54	5WK96673A	2894941	12V 795mm
55	5WK96674A	2894939RX/2871978/2894939	12V 590mm
56	5WK96675A	2871978/2894939RX	12V 590mm
57	5WK96676A	2894942/2894942RX	24V 590mm
58	5WK96684A	68067521AA	12V 590mm
59	5WK96691A	2894944/A034X854/2894944RX	12V 590mm
60	5WK96692A	2894945/4326870/2872297	12V 590mm
61	5WK96730	68085740AA	12V 420mm
62	5WK96740B	A2C95990700-01	12V 590mm
63	5WK96741B	4326874RX/4326874	12V 890mm
64	5WK96742B	4326873/A0415S170	12V 1095mm
65	5WK96749B	4326872RX	12V 590mm
66	5WK96751C	4326862	24V 590mm
67	5WK96752C	4326868	24V 890mm
68	5WK96753	A2C34968000-01	12V 420mm
69	5WK96753B	4326869	12V 590mm
70	5WK96754C	4326867 A045S161	24V 890mm
71	5WK96765A	4326863	24V 590mm
72	5WK96765B	4326863	24V 590mm
73	5WK96766C	4326861/A045S155	24V 590mm
74	5WK97338A	A0101532228/0002	12V 420mm
75	5WK97339A	A0101532328/0002	12V 730mm
76	5WK97360	68227468AA	12V 590mm
77	5WK97366	A2C93782000-01	12V 590mm
