5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier

5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier thumbnail-1
5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier thumbnail-2
5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier thumbnail-3
5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier thumbnail-4
5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier thumbnail-5
5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier photo-1
5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier photo-2
5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier photo-3
5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier photo-4
5WK96747 Truck NOX Sensor For Renault 227908539R 12V Nitrogen Oxide Sensor Factory Supplier photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Cubic
Place of Origin:
China
Model Number:
NOx Sensor
Contact Supplier Request Quote Chat Now
Cubic Sensor And Instrument Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Cubic
Place of Origin China
Model Number NOx Sensor
Type Oxygen Sensor

Introduction

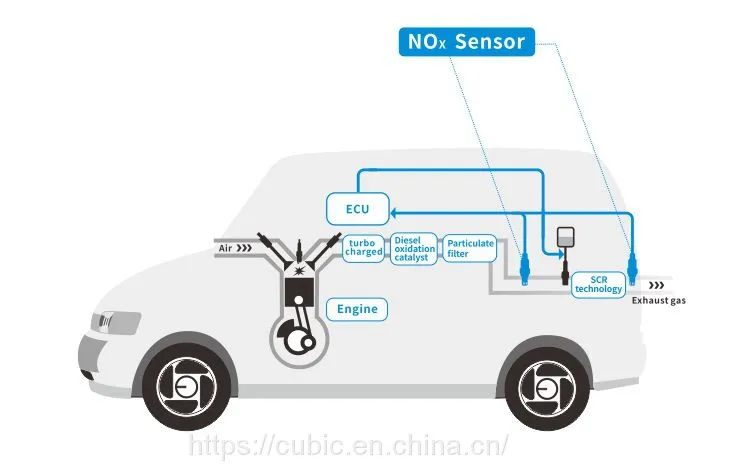

The NOx sensor used for catalyst management in vehicles with gasoline or diesel engines. The NOx sensor consists of a ceramic sensor element and an electronic control unit (ECU). The NOx sensor measures the NOx concentration, air/fuel ratio (A/F ratio) and equilibrium oxygen partial pressure in the exhaust gas of combustion engines (gasoline and diesel).



Features

1.Independent R&D and production of chips

2.Covering multiple series of car models
3.Meet the requirements of stable sensor signals, high accuracy and long service life under various atmosphere environments during vehicle driving



Specifications

Measurement Range
0-1500ppm
Accuracy
Exhaust Gas Temperature
≤800°C
Exhaust Pressure
≤2.5bar
Storage Temperature
ECU: -40℃-115℃ Unpowered: -40℃-95℃
Power Supply
12V/24V
Typical Supply Current
600mA
Maximum Heating Current
20A
Concentration
NOx: 0-1500ppm; Oxygen: 0~21%;
Response Time Ƭ33−66%
NOx: 1200ms; Oxygen: 1000ms;
Light-off Time
Nox



OE Code List

No. Part Number Reference Number Parameters
1 5WK96616F A0091533628/005/61537328 24V 590mm
2 5WK96642B A0081539828/004/A0101539328/001 24V 590mm
3 5WK96652B A0081539928 24V 590mm
4 5WK96682C A0009053503 12V 590mm
5 5WK96682D A0009053503-210902 12V 590mm
6 5WK96682F A0009053606 12V 590mm
7 5WK96683D A0009053603 12V 590mm
8 5WK96683E A0009057100 12V 590mm
9 5WK96683F A009053706 12V 590mm
10 5WK97329A A0101531428/003 12V 590mm
11 5WK97332A A0101531728/003 12V 445mm
12 5WK97332A A0101531728 24V 890mm
13 5WK97338A A0101532228/0002 12V 590mm
14 5WK97339A A0101532328 12V 590mm
15 5WK97341A A0101531928 12V 590mm
16 5WK96612F 2296799 1872080 2247379 24V 890mm
17 5WK96679 2296798 24V 890mm
18 5WK97400 2294290/2064768/2247380/2296800 24V 890mm
19 5WK97401 2294291/2064769/2247381/2296801 24V 1143mm
20 5WK96618D 51154080015 24V 590mm
21 5WK96721B 51154080016 24V 890mm
22 5WK96722B 51154080008 51154080017 24V 890mm
23 5WK96783A 51154080011 24V 420mm
24 5WK96783B 51154080011 51154080018 24V 420mm
25 5WK96790B 51154080012 51154080019 24V 590mm
26 5WK96605C 20873395 12V 590mm
27 5WK96717A 21984358 24V 890mm
28 5WK96717B 22827993 22219283 24V 590mm
29 5WK96718B 22219283 24V 890mm
30 5WK97366 22303391/A2C93782000-01 12V 590mm
31 5WK97367 21479638/21567764/22303390 12V 590mm
32 5WK97368 22827991/7422827991/A2C93782700 24V 590mm
33 5WK97371 22827993/22219283/20873395 24V 590mm
34 5WK97372 22827995 24V 890mm
35 5WK97373 22827992 24V 890mm
36 5WK96615F 5801754015 24V 890mm
37 5WK96711C 84414466 24V 890mm
38 5WK96720A 5801777219 24V 890mm
39 5WK96733B 5801754016 24V 890mm
40 5WK96775A 5801754014 24V 890mm
41 5WK96619D 2011648/ 1793378/ 1836059 12V 795mm
42 5WK96626B 1836061 24V 490mm
43 5WK96626C 2011650/1793380/1836061 24V 890mm
44 5WK96628C 1836060/2011649/1793379 24V 890mm
45 5WK96661D 2006245 24V 490mm
46 5WK96675A 2894940/2871979/4984577/4954222/1705572 24V 590mm
47 5WK96759C 4326864/2006246 12V 490mm
48 5WK97344B 2006243 24V 890mm
49 5WK97348A 4326769/A045H141 24V 590mm
50 5WK96693A 2872298 2894946RX 24V 890mm
51 5WK96614I 5801363754 24V 590mm
52 5WK96651A 05149216AB 12V 590mm
53 5WK96672A 2894943 2894943RX 12V 890mm
54 5WK96673A 2894941 12V 795mm
55 5WK96674A 2894939RX/2871978/2894939 12V 590mm
56 5WK96675A 2871978/2894939RX 12V 590mm
57 5WK96676A 2894942/2894942RX 24V 590mm
58 5WK96684A 68067521AA 12V 590mm
59 5WK96691A 2894944/A034X854/2894944RX 12V 590mm
60 5WK96692A 2894945/4326870/2872297 12V 590mm
61 5WK96730 68085740AA 12V 420mm
62 5WK96740B A2C95990700-01 12V 590mm
63 5WK96741B 4326874RX/4326874 12V 890mm
64 5WK96742B 4326873/A0415S170 12V 1095mm
65 5WK96749B 4326872RX 12V 590mm
66 5WK96751C 4326862 24V 590mm
67 5WK96752C 4326868 24V 890mm
68 5WK96753 A2C34968000-01 12V 420mm
69 5WK96753B 4326869 12V 590mm
70 5WK96754C 4326867 A045S161 24V 890mm
71 5WK96765A 4326863 24V 590mm
72 5WK96765B 4326863 24V 590mm
73 5WK96766C 4326861/A045S155 24V 590mm
74 5WK97338A A0101532228/0002 12V 420mm
75 5WK97339A A0101532328/0002 12V 730mm
76 5WK97360 68227468AA 12V 590mm
77 5WK97366 A2C93782000-01 12V 590mm

Product Tags: sensor nox Renault , nitrogen oxide sensor for Renault , sensor nox , nox sensor truck , nox sensor , nox sensor price
